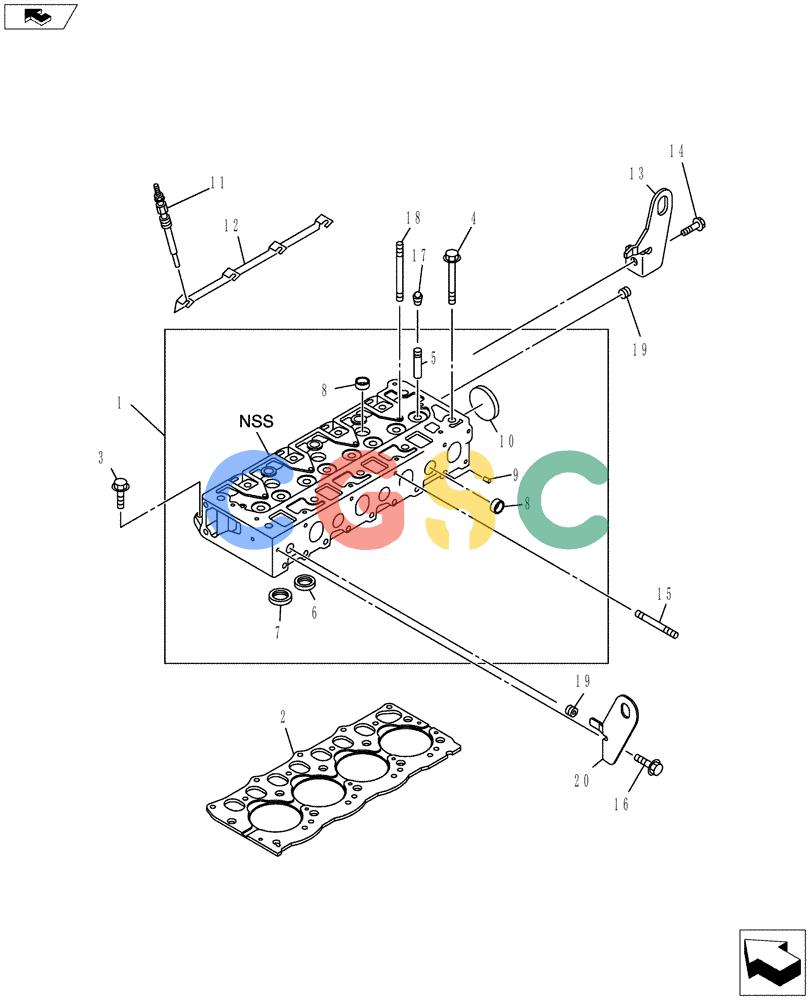

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (08-006[00]) - CYLINDER HEAD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
852 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8980305520 | [1] | CYLINDER HEAD | KOBAsm. |
| 2. | VI8980489450 | [1] | CYLINDER HEAD GASKET | KOB |
| 3. | VI8944637840 | [5] | BOLT | KOBCyl. Hd. To Block |
| 4. | VI8970369591 | [10] | BOLT | KOBCyl. Hd. To Block |
| 5. | VI8970317490 | [8] | VALVE GUIDE | KOB Superseded by part number: VI8972319690 |
| 6. | VI8970453912 | [4] | VALVE SEAT | KOBInsert |
| 7. | VI8970453920 | [4] | VALVE SEAT | KOBInsert |
| 8. | VI8972096090 | [6] | SEAL | KOBCup; Cyl. Head |
| 9. | VI8972334290 | [5] | SEAL | KOBCup; Cyl. Head |
| 10. | VI8973514510 | [1] | CUP | KOBSealing, Cyl. Head Superseded by part number: VI8970365501 |
| 11. | VI8970476041 | [4] | GLOW PLUG | KOB |
| 12. | VI8972293810 | [1] | HYD CONNECTOR | KOBGlow Plug |
| 13. | VI8970853890 | [1] | HANGER | KOBEng., RR |
| 14. | VI0280508160 | [1] | BOLT | KOBHanger |
| 15. | VI8941558690 | [8] | STUD | KOBExh. Manif. |
| 17. | VI8941105591 | [8] | OIL SEAL | KOBVlv. Guide |
| 18. | VI8970946411 | [6] | STUD | KOBRocker Shaft Brkt. |
| 19. | VI5096050050 | [2] | PLUG | KOBHd. |
