神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (08-021) - BUCKET ASSY FOR LOADING, 3.5M³ Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
552 次

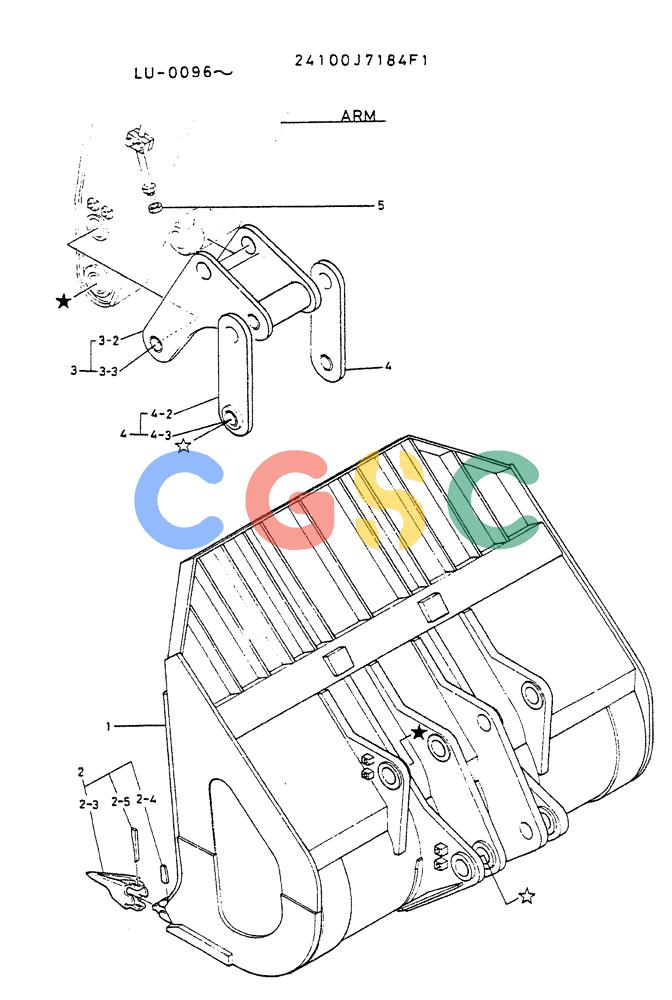

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J7184F1 | [1] | BUCKET ASSY | |
| 1. | 2412X437 | [1] | BUCKET | |
| 1-2B. | 2412U41 | [6] | ADAPTER | |
| 2. | 2412U40F2 | [6] | POINT ASSY | |
| 2-3. | 2412U40S1 | [1] | POINT | |
| 2-4. | 2412U40S4 | [1] | PLUG | |
| 2-5. | 2412U40S5 | [1] | PIN | |
| 3. | B91K0017F1 | [1] | LINK, GUIDE | |
| 3-2. | B91K0017 | [1] | LINK,GUIDE | |
| 3-3. | B05T0013 | [4] | BUSHING | BUSHING |
| 4. | B91N0052F1 | [1] | LINK | |
| 4-2. | B91N0052 | [1] | LINK | |
| 4-3. | B05T0004 | [1] | BUSHING | BUSHING |
| 5. | 2444T1329D5 | [2] | PLUG | KOBPLUG Superseded by part number: ZF86P28000 |
