神钢零件查询(MD140BLC) - EXCAVATOR BTW YP1001 - YP1281 (1/80-12/06) (01-001) - FRAME ASSY, UPP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
569 次

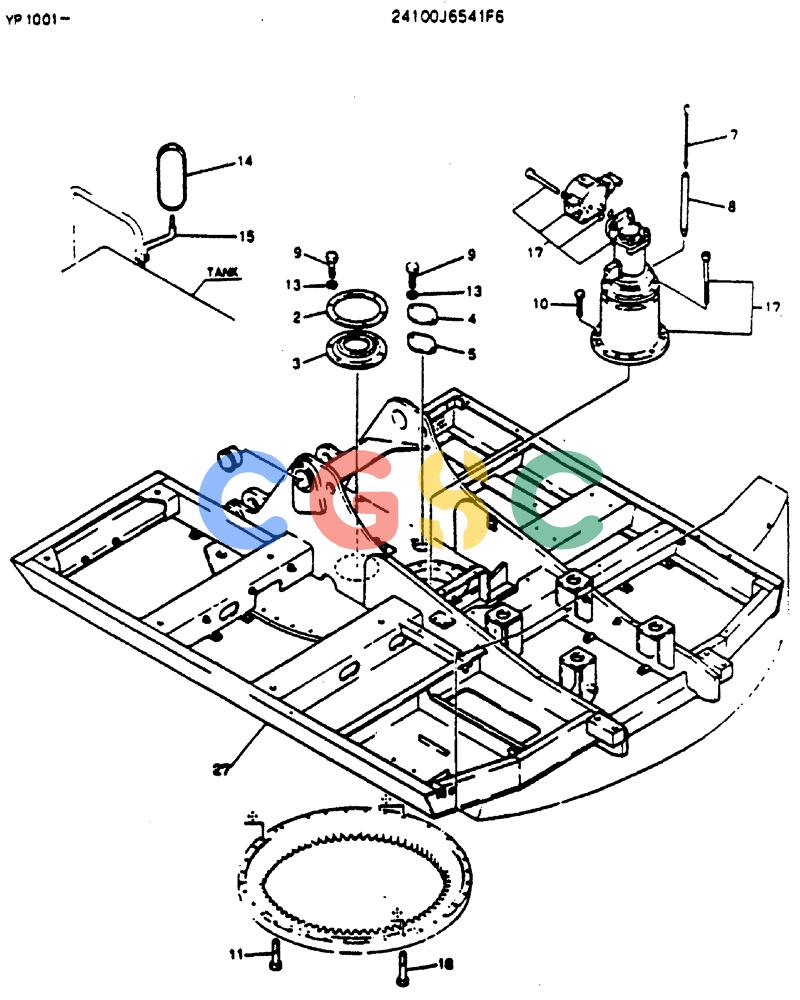

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6541F6 | [1] | FRAME ASSY, UPP | |
| 2. | 2414T2341 | [1] | COVER | KOBCOVER Superseded by part number: YN52F01158P1 |
| 3. | 2414Z234 | [1] | COVER | KOB |
| 4. | 2418T12125 | [1] | PLATE | KOB Superseded by part number: YN52F01159P1 |
| 5. | 2416Z434 | [1] | PACKING | KOBRubber |
| 7. | 2420R561D1 | [1] | DIPSTICK | KOB |
| 8. | 2420T4039C2D7 | [1] | RIGID TUBE | KOB |
| 9. | ZS13C10025 | [8] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 10. | ZS23C20055 | [12] | SCREW,Hex Socket Head, M20 x 55mm | KOBM20x2.5x55mm |
| 11. | ZS13C16080 | [25] | CAPSCREW | KOBSCREW M16x2.0x80mm |
| 13. | 2418T5373C2 | [8] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 14. | 2456Z253 | [1] | MIRROR | KOB |
| 15. | 2406P2568 | [1] | STAY | KOB |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONMOTOR ASSY, SWING |
| 18. | 2420T4561D1 | [3] | BOLT | KOBReamer -- M16x2.0x80mm |
| 27. | 2422J2013 | [1] | FRAME, UPP | |
