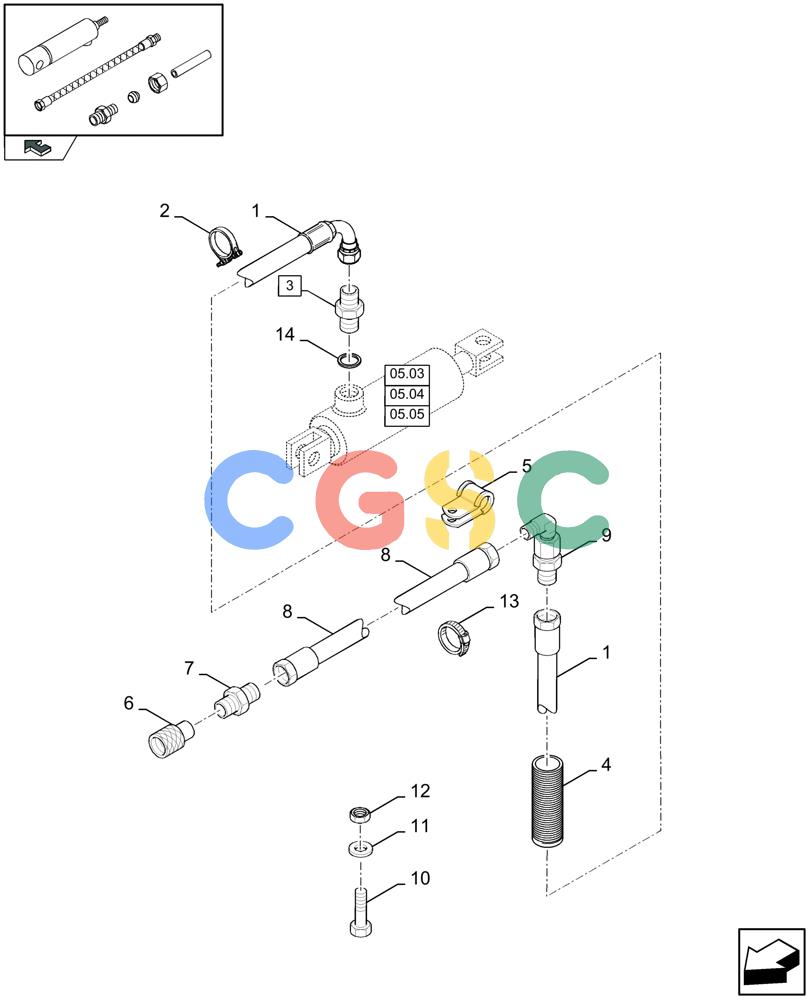

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (07.01[01]) - HYDRAULIC BRAKES, SINGLE AXLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
963 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84449978
|
[1] |
FLEXIBLE HOSE
|
ZED
|
| 2. |
80431351
|
[1] |
CLAMP
|
ZED
Superseded by part number: 431351
|
| 3. |
89837622
|
[1] |
HYD CONNECTOR
|
ZED
(14) Superseded by part number: 9837622
|
| 4. |
NS
|
[4] |
NOT SERVICED
|
BAS
|
| 5. |
80396718
|
[2] |
STRAP
|
ZED
Superseded by part number: 529070
|
| 6. |
89839028
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 9839028
|
| 7. |
80395019
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 395019
|
| 8. |
84031413
|
[1] |
HYDRAULIC HOSE,7.9mm ID x 2500mm L, SAE 100R1
|
ZED
|
| 9. |
84007700
|
[1] |
ELBOW
|
ZED
|
| 10. |
43128
|
[2] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 11. |
80322358
|
[3] |
LOCK WASHER
|
ZED
8 MM Superseded by part number: 322358
|
| 12. |
89706690
|
[2] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
| 13. |
80418407
|
[4] |
CLAMP
|
ZED
Superseded by part number: 418407
|
| 14. |
700053194
|
[1] |
GASKET
|
ZED
Superseded by part number: 5146468
|
