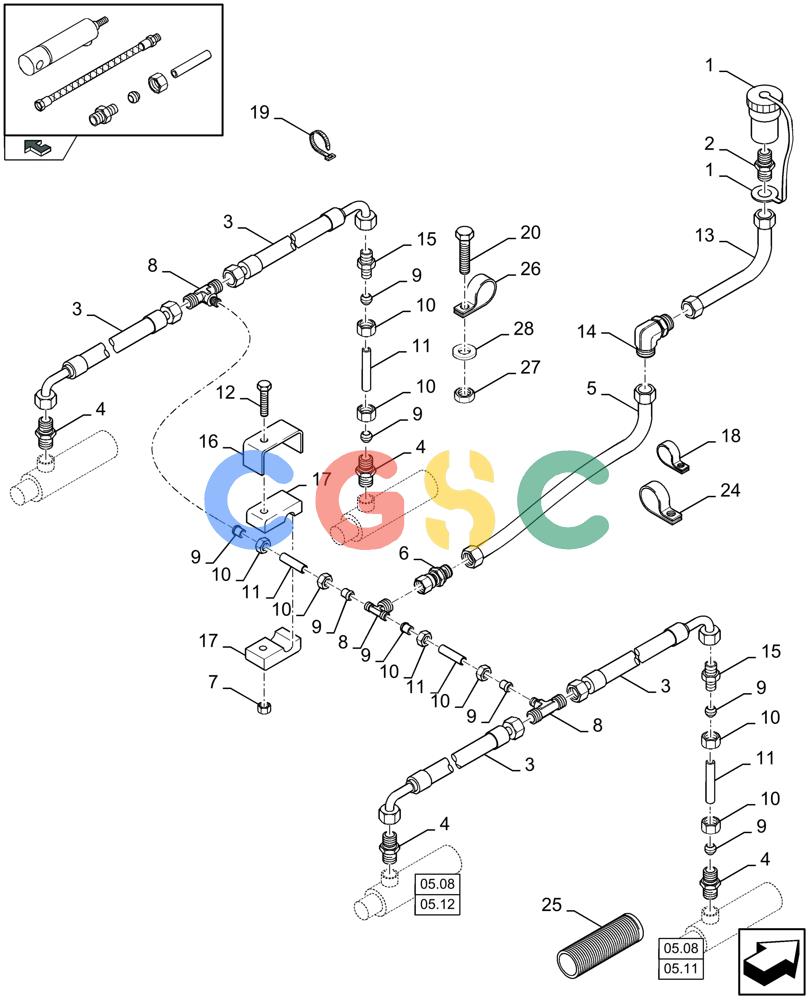

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (07.02[01]) - HYDRAULIC BRAKES, TANDEM AXLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
963 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
89839028
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 9839028
|
| 2. |
80395019
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 395019
|
| 3. |
84078809
|
[4] |
FLEXIBLE HOSE
|
ZED
|
| 4. |
89813512
|
[4] |
HYD CONNECTOR
|
ZED
|
| 5. |
84449978
|
[1] |
FLEXIBLE HOSE
|
ZED
|
| 6. |
84078124
|
[1] |
HYD CONNECTOR,9/16" - 18 JIC x M16 x 1.5
|
ZED
|
| 7. |
80412152
|
[2] |
NUT
|
ZED
M6 Superseded by part number: 412152
|
| 8. |
80395472
|
[3] |
3 WAY CONNECTION
|
ZED
Superseded by part number: 395472
|
| 9. |
80150014
|
[1] |
FERRULE
|
ZED
10 MM Superseded by part number: 150014
|
| 10. |
86548975
|
[1] |
PIPE UNION NUT,M16 x 1.5
|
ZED
M10
|
| 11. |
80371539
|
[1] |
RIGID TUBE
|
ZED
D= 10 MM, L= 2 M Superseded by part number: 371539
|
| 12. |
80043118
|
[2] |
SCREW
|
ZED
M6 x 40 Superseded by part number: 120102
|
| 13. |
84031413
|
[1] |
HYDRAULIC HOSE,7.9mm ID x 2500mm L, SAE 100R1
|
ZED
|
| 14. |
84007700
|
[1] |
ELBOW
|
ZED
|
| 15. |
80150017
|
[2] |
HYD CONNECTOR
|
ZED
Superseded by part number: 47499003
|
| 16. |
80433001
|
[2] |
SUPPORT
|
ZED
10 MM Superseded by part number: 433001
|
| 17. |
80433008
|
[4] |
CLAMP
|
ZED
M10 Superseded by part number: 433008
|
| 18. |
80418407
|
[4] |
CLAMP
|
ZED
Tube Superseded by part number: 418407
|
| 19. |
80323597
|
[2] |
STRAP
|
ZED
Superseded by part number: 14560287
|
| 20. |
43128
|
[2] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 24. |
80396718
|
[1] |
STRAP
|
ZED
Superseded by part number: 529070
|
| 25. |
NS
|
[1] |
NOT SERVICED
|
BAS
|
| 26. |
80431351
|
[1] |
CLAMP
|
ZED
Superseded by part number: 431351
|
| 27. |
89706690
|
[2] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
| 28. |
80322358
|
[3] |
LOCK WASHER
|
ZED
8 MM Superseded by part number: 322358
|
