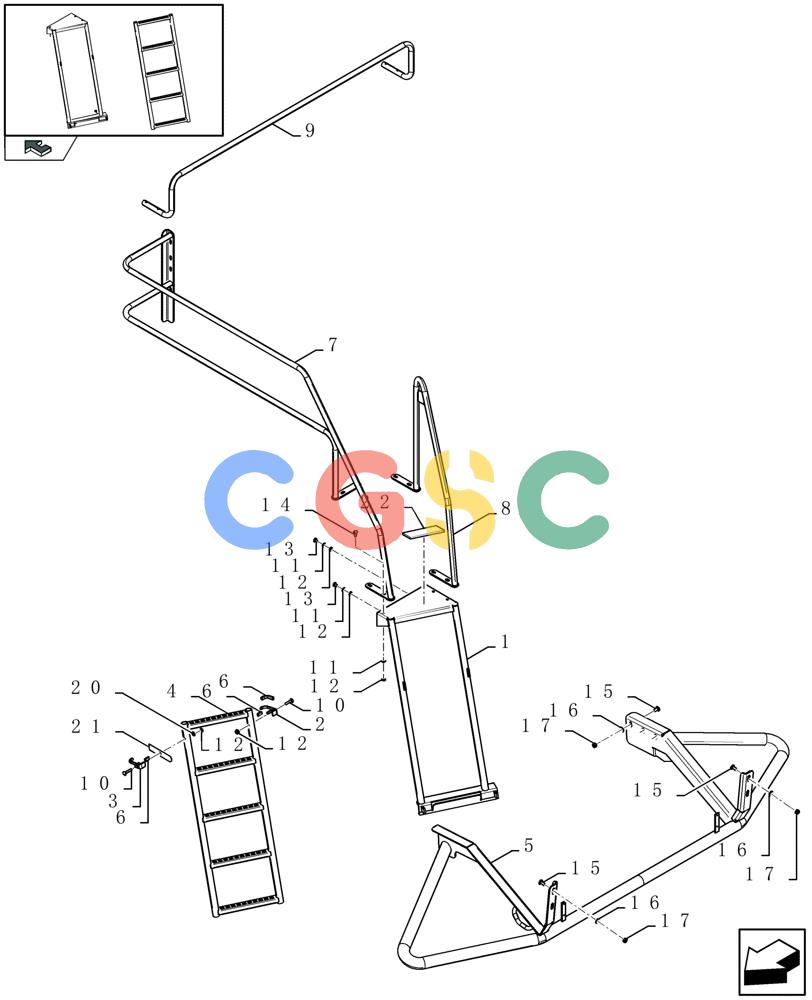

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (08.013[01]) - LADDER AND HAND-RAIL FOR MAINTENANCE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
644 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84819311
|
[1] |
SUPPORT
|
ZED
|
| 2. |
84819321
|
[1] |
BRACKET
|
ZED
(RH)
|
| 3. |
84819319
|
[1] |
BRACKET
|
ZED
(LH)
|
| 4. |
84819316
|
[1] |
LADDER
|
ZED
|
| 5. |
84819336
|
[1] |
BRACKET
|
ZED
|
| 5. |
84819331
|
[1] |
BRACKET
|
ZED
|
| 6. |
80455168
|
[1] |
FLEXIBLE HOSE
|
ZED
L= 0.15 M Superseded by part number: 455168
|
| 7. |
84818910
|
[1] |
HANDRAIL
|
ZED
(LH)
|
| 8. |
84818914
|
[1] |
HANDRAIL
|
ZED
(RH)
|
| 9. |
84607778
|
[1] |
HANDRAIL
|
ZED
|
| 9. |
84607780
|
[1] |
HANDRAIL
|
ZED
|
| 10. |
350459
|
[1] |
CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8
|
ZED
|
| 11. |
80140045
|
[7] |
WASHER
|
ZED
10 MM Superseded by part number: 140045
|
| 12. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 13. |
80120041
|
[4] |
CARRIAGE BOLT
|
ZED
M10 x 20 Superseded by part number: 120041
|
| 14. |
86633356
|
[1] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
|
| 15. |
80120044
|
[10] |
BOLT
|
ZED
M12 x 30 Superseded by part number: 120044
|
| 16. |
80140046
|
[10] |
WASHER
|
ZED
12.4 MM Superseded by part number: 140046
|
| 17. |
89706685
|
[10] |
NUT
|
ZED
M12 Superseded by part number: 9706685
|
| 18. |
80374894
|
[1] |
SCREW
|
ZED
M10 x 70 Superseded by part number: 811-10070
|
| 19. |
80100037
|
[1] |
NUT,M10 x 1.5, Class 8
|
ZED
Superseded by part number: 100037
|
| 20. |
80300368
|
[2] |
WASHER
|
ZED
Superseded by part number: 300368
|
| 21. |
84800139
|
[1] |
COVER PLATE
|
ZED
|
| 22. |
80401502
|
[1] |
ANTI-SKID STRIP
|
ZED
Superseded by part number: 401502
|
