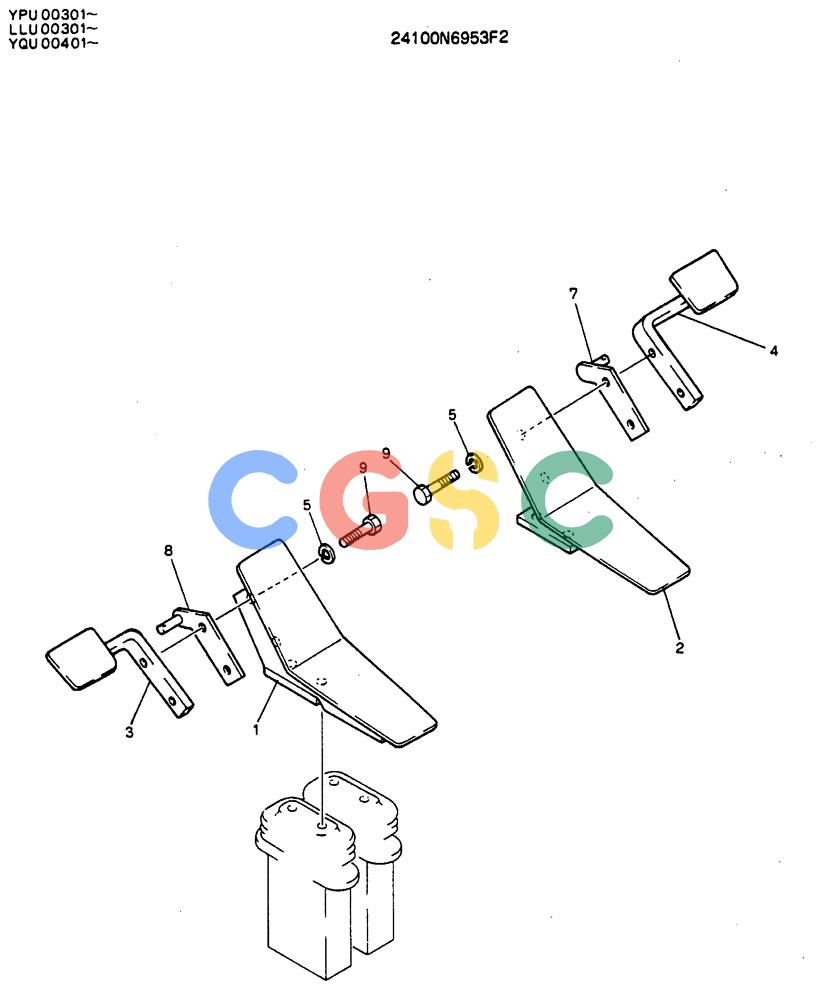

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | 24100N6953F2 | [1] | PEDAL ASSY | |
| 1. | 2406P5061D1 | [1] | PEDAL | KOB |
| 2. | 2406P5061D2 | [1] | PEDAL | KOB |
| 3. | 2406P3904D1 | [1] | PEDAL | KOB |
| 4. | 2406P3904D2 | [1] | PEDAL | KOB |
| 5. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 7. | 2416P16910D1 | [1] | BRACKET | KOB |
| 8. | 2416P16910D2 | [1] | BRACKET | KOB |
| 9. | ZS18C10030 | [4] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
