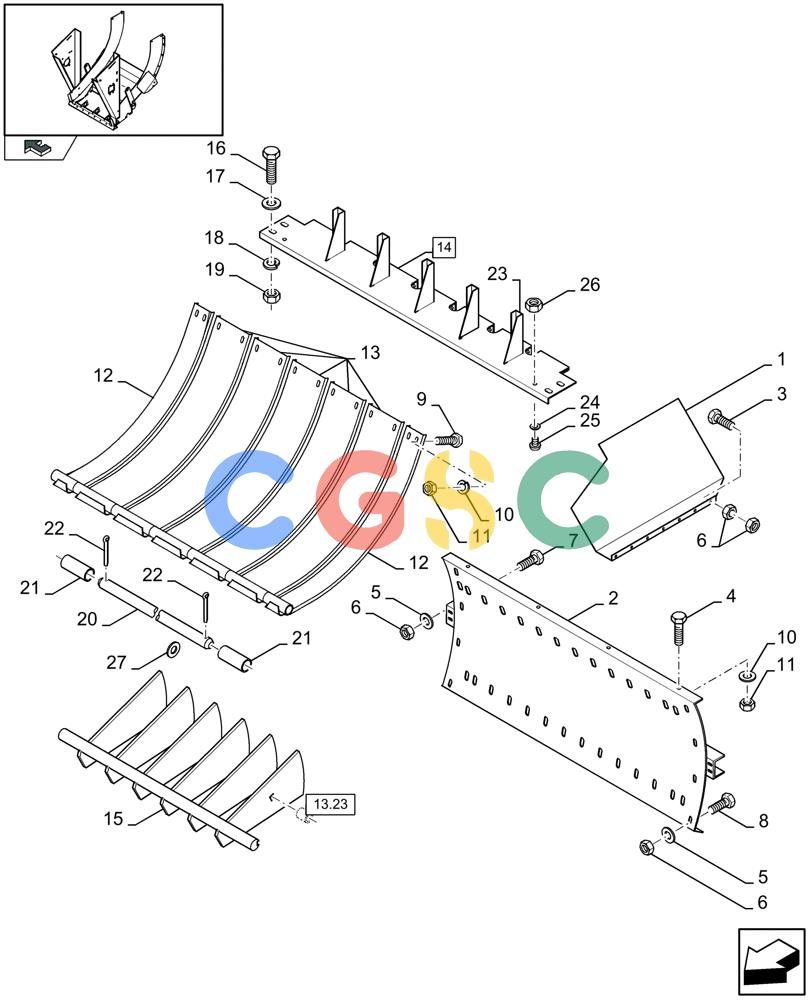

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (13.24[01]) - FEED CHAMBER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
200 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84043503
|
[1] |
SHIELD
|
ZED
|
| 2. |
84078472
|
[1] |
PLATE
|
ZED
|
| 2. |
84078466
|
[1] |
PLATE
|
ZED
|
| 3. |
80308761
|
[1] |
SCREW,M8 x 25mm
|
ZED
M8 x 25 Superseded by part number: 308761
|
| 4. |
80043139
|
[1] |
BOLT,M10 x 25mm
|
ZED
Superseded by part number: 11106231
|
| 5. |
80322358
|
[1] |
LOCK WASHER
|
ZED
8 MM Superseded by part number: 322358
|
| 6. |
89706690
|
[1] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
| 8. |
43128
|
[1] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 9. |
80338949
|
[1] |
CARRIAGE BOLT
|
ZED
Short Neck, CL 8.8, M10 x 1.5 x 25 Superseded by part number: 338949
|
| 10. |
80140045
|
[1] |
WASHER
|
ZED
10 MM Superseded by part number: 140045
|
| 11. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 12. |
84817157
|
[2] |
GUIDE
|
ZED
, Serial Range: -C527 Superseded by part number: 84058076
|
| 12. |
84058076
|
[2] |
GUIDE
|
ZED
, Start Serial: D528
|
| 13. |
84817160
|
[1] |
GUIDE
|
ZED
, Serial Range: -C527 Superseded by part number: 84058075
|
| 13. |
84058075
|
[1] |
GUIDE
|
ZED
, Start Serial: D528
|
| 13. |
84345830
|
[1] |
GUIDE
|
ZED
|
| 14. |
84442149
|
[1] |
SUPPORT
|
ZED
(23), Serial Range: -C439
|
| 14. |
84800990
|
[1] |
PLATE
|
ZED
(23), Start Serial: D440
|
| 14. |
84068989
|
[1] |
SUPPORT
|
ZED
(23), Serial Range: -C439
|
| 14. |
84801001
|
[1] |
SUPPORT
|
ZED
(23), Start Serial: D440
|
| 15. |
84818589
|
[1] |
SHAFT
|
ZED
|
| 15. |
84818587
|
[1] |
SHAFT
|
ZED
|
| 16. |
80120090
|
[1] |
SCREW
|
ZED
M16 x 50 Superseded by part number: 120090
|
| 17. |
80394631
|
[1] |
WASHER
|
ZED
16 MM Superseded by part number: 394631
|
| 18. |
80140048
|
[1] |
WASHER
|
ZED
16 MM Superseded by part number: 140048
|
| 19. |
100020
|
[1] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 20. |
84039493
|
[1] |
ROD
|
ZED
|
| 20. |
84074004
|
[1] |
ROD
|
ZED
|
| 21. |
84041590
|
[2] |
BUSHING
|
ZED
|
| 22. |
80300423
|
[2] |
COTTER PIN
|
ZED
Superseded by part number: 300423
|
| 23. |
84068687
|
[1] |
SCRAPER BLADE
|
ZED
|
| 27. |
80444211
|
[1] |
WASHER
|
ZED
34.8 MM Superseded by part number: 444211
|
