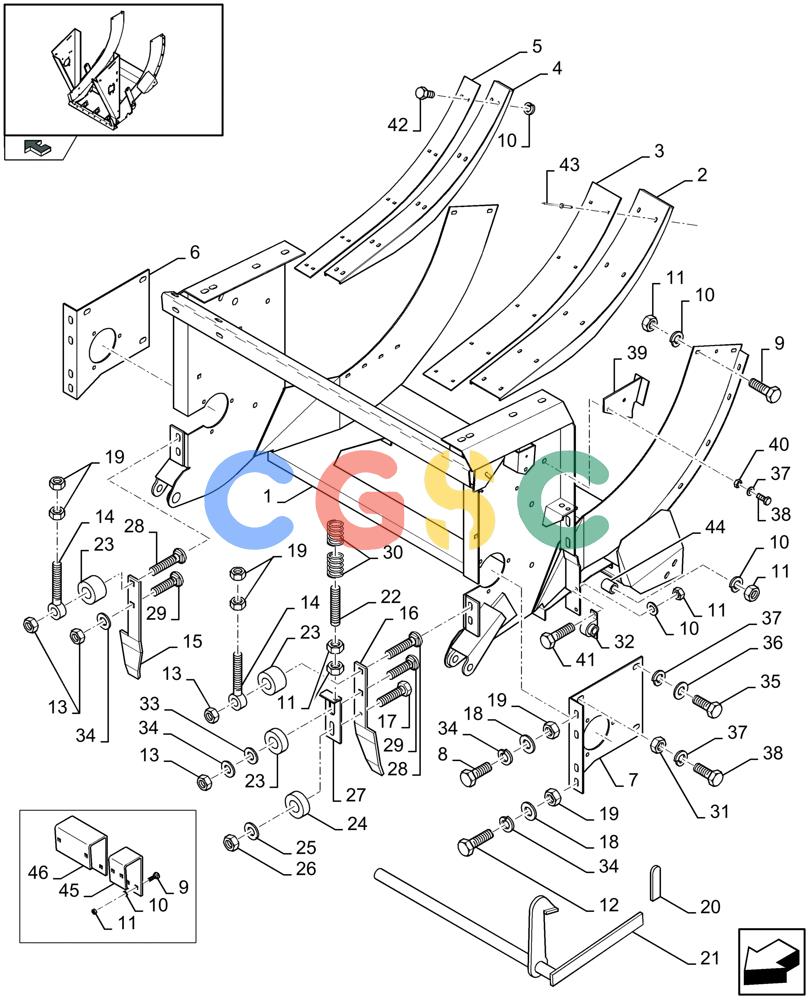

| 1. |
84818755
|
[1] |
FRAME
|
ZED
|
| 1. |
84818759
|
[1] |
FRAME
|
ZED
|
| 2. |
84607485
|
[1] |
PLATE
|
ZED
|
| 3. |
84607490
|
[1] |
PLATE
|
ZED
|
| 4. |
84607487
|
[2] |
STIFFENER
|
ZED
|
| 5. |
84607491
|
[2] |
PLATE
|
ZED
|
| 6. |
84042608
|
[1] |
COVER PLATE
|
ZED
RH
|
| 7. |
84042607
|
[1] |
COVER PLATE
|
ZED
LH
|
| 8. |
86508583
|
[4] |
BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd
|
NH
Superseded by part number: 86529976
|
| 9. |
80338949
|
[1] |
CARRIAGE BOLT
|
ZED
Short Neck, CL 8.8, M10 x 1.5 x 25 Superseded by part number: 338949
|
| 10. |
80140045
|
[1] |
WASHER
|
ZED
10 MM Superseded by part number: 140045
|
| 11. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 12. |
80385922
|
[4] |
SCREW,M16 x 45mm
|
ZED
M16 x 45 Superseded by part number: 385922
|
| 13. |
86000441
|
[4] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 14. |
80333115
|
[2] |
BOLT
|
ZED
Superseded by part number: 333115
|
| 15. |
84042709
|
[1] |
COVER PLATE
|
ZED
|
| 16. |
84042710
|
[1] |
COVER PLATE
|
ZED
|
| 17. |
89706704
|
[1] |
BOLT,M10 x 35mm
|
ZED
M10 x 35 Superseded by part number: 9706704
|
| 18. |
80140048
|
[12] |
WASHER
|
ZED
16 MM Superseded by part number: 140048
|
| 19. |
100020
|
[16] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 20. |
89839186
|
[1] |
HANDLE
|
ZED
Superseded by part number: 9839186
|
| 21. |
84042720
|
[1] |
SHAFT
|
ZED
|
| 21. |
84074005
|
[1] |
SHAFT
|
ZED
|
| 22. |
84043925
|
[1] |
ROD
|
ZED
|
| 23. |
80376291
|
[3] |
RING
|
ZED
Superseded by part number: 376291
|
| 24. |
80854963
|
[1] |
SPACER
|
ZED
Superseded by part number: 854963
|
| 25. |
80140042
|
[1] |
WASHER
|
ZED
10 MM Superseded by part number: 140042
|
| 26. |
80100037
|
[1] |
NUT,M10 x 1.5, Class 8
|
ZED
Superseded by part number: 100037
|
| 27. |
84042706
|
[1] |
COVER PLATE
|
ZED
|
| 28. |
80120046
|
[2] |
BOLT
|
ZED
M16 x 60 Superseded by part number: 87552612
|
| 29. |
80412185
|
[2] |
BOLT
|
ZED
M16 x 50 Superseded by part number: 412185
|
| 30. |
80333969
|
[2] |
SPRING
|
ZED
Superseded by part number: 80918027
|
| 31. |
89706685
|
[1] |
NUT
|
ZED
M12 Superseded by part number: 9706685
|
| 32. |
84038526
|
[2] |
BEARING CARRIER,25mm ID
|
ZED
|
| 33. |
80916107
|
[1] |
WASHER
|
ZED
Superseded by part number: 916107
|
| 34. |
80378246
|
[1] |
WASHER
|
ZED
16 MM Superseded by part number: 378246
|
| 35. |
80300388
|
[4] |
SCREW,M12 x 25mm
|
ZED
Cap, HH, CL 8.8, M12 x 1.75 x 25 Superseded by part number: 300388
|
| 36. |
80543043
|
[4] |
WASHER
|
ZED
Superseded by part number: 543043
|
| 37. |
80140046
|
[6] |
WASHER
|
ZED
12 MM Superseded by part number: 140046
|
| 38. |
80374895
|
[2] |
CARRIAGE BOLT
|
ZED
M12 x 25 Superseded by part number: 374895
|
| 39. |
84100665
|
[1] |
PLATE
|
ZED
|
| 41. |
80043139
|
[1] |
BOLT,M10 x 25mm
|
ZED
Superseded by part number: 11106231
|
| 42. |
43138
|
[1] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 43. |
84069248
|
[1] |
RIVET,Pop, 4.8mm OD x 20.7mm L
|
ZED
|
| 44. |
84004713
|
[1] |
BUSHING,10.5mm ID x 25mm OD x 18mm L
|
ZED
|
| 45. |
84817511
|
[2] |
BRACKET
|
ZED
|
| 46. |
84817509
|
[5] |
BRACKET
|
ZED
|
