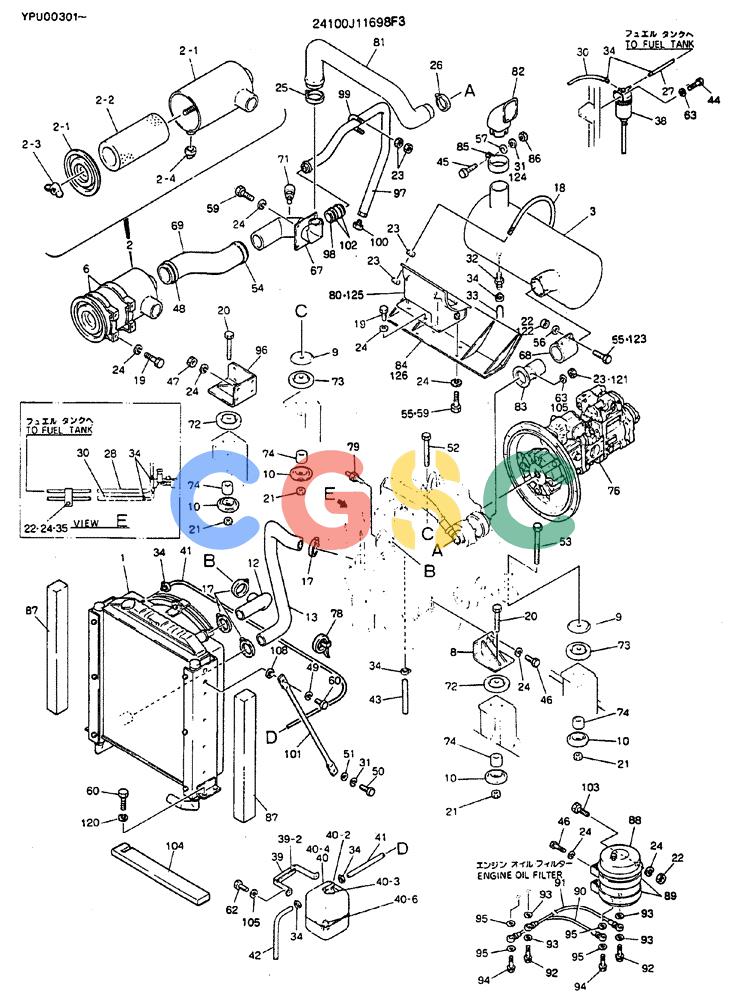

| . . | 24100J11698F3 | [1] | POWER PLANT ASSY | POWER PLANT ASSY |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONRADIATOR ASSY |
| 2. | 2446U242F1 | [1] | CLEANER ASSY, AIR CLEANER. AIR | CLEANER ASSY, AIR CLEANER. AIR |
| 2-1. | 2446U242S1 | [1] | BODY | KOBBODY ASSY |
| 2-2. | 2446U242S2 | [1] | ELEMENT | KOB Superseded by part number: 87682987 |
| 2-3. | 2446U248S2 | [1] | WING NUT | KOBWING |
| 2-4. | 2446U242S4 | [1] | VALVE | KOB |
| 3. | 2427R721 | [1] | MUFFLER | KOB |
| 6. | 2415Z194D2 | [2] | BAND | KOB |
| 8. | 2416P15503 | [1] | BRACKET | KOB |
| 9. | 2418T17962 | [2] | PLATE | KOB Superseded by part number: 2418T25775 |
| 10. | 2416Z498 | [4] | RUBBER SLEEVE | KOB |
| 12. | 2444R926 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2444R2457 |
| 13. | 2444R927 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2444R2458 |
| 17. | ZC15X06000 | [4] | CLIP | KOBCLIP |
| 18. | 2420T4454 | [2] | U-BOLT | KOB |
| 19. | ZS13C10025 | [8] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 20. | ZS13C18080 | [2] | SCREW | KOBM18x2.0x80mm |
| 21. | ZN13C18015 | [4] | NUT | KOBM18x2.5mm |
| 22. | ZN13C10008 | [6] | NUT | KOBM10x1.50mm, Serial Range: YPU00301-YPU00329 Superseded by part number: ZN18C10008 |
| . . | ZN13C10008 | [4] | NUT | KOBM10x1.50mm, Start Serial: YPU00330 Superseded by part number: ZN18C10008 |
| 23. | ZN13C08007 | [19] | NUT | KOBM08x1.25mm, Serial Range: YPU00301-YPU00329 Superseded by part number: ZN18C08007 |
| . . | ZN13C08007 | [8] | NUT | KOBM08x1.25mm, Start Serial: YPU00330 Superseded by part number: ZN18C08007 |
| 24. | ZW22X10000 | [32] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 25. | ZC15X08000 | [1] | CLIP | KOB |
| 26. | ZC15X07000 | [1] | CLIP | KOB |
| 27. | 4018Z1D7 | [1] | HOSE | KOB |
| 28. | 4018Z1D33 | [1] | FLEXIBLE HOSE | KOB |
| 30. | 4018Z1D10 | [1] | FLEXIBLE HOSE | KOB |
| 31. | ZW22X12000 | [3] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm, Serial Range: YPU00301-YPU00329 Superseded by part number: ZW26X12000 |
| . . | ZW22X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm, Start Serial: YPU00330 Superseded by part number: ZW26X12000 |
| 32. | 2444Z1293D8 | [1] | LUBE NIPPLE | KOB1/4"PTx43mm Long Superseded by part number: R44T0022 |
| 33. | 2420Z795D3 | [1] | HOSE | KOB Superseded by part number: HX11Y07100DX |
| 34. | ZC15X01000 | [11] | CLIP | KOB |
| 35. | 2432R226D7 | [2] | CLIP Clamp, Double -- ID 16 x 66mm Long | CLIP Clamp, Double -- ID 16 x 66mm Long |
| 38. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER |
| 39. | 2416T23254 | [1] | BRACKET | KOB |
| 39-2. | 2416R259D1 | [1] | CUSHION | KOB |
| 40. | 2427U203F3 | [1] | TANK | KOBRADIATOR SUB |
| 40-2. | 2427U203S2 | [1] | HYD CONNECTOR | KOB |
| 40-3. | 2427U203S3 | [1] | LABEL | KOB |
| 40-4. | 2427U203S4 | [1] | TANK | KOB |
| 40-6. | 2427U203S6 | [1] | SWITCH | KOBRadiator Over Flow Level |
| 41. | 2420Z912D4 | [1] | HOSE | KOB |
| 42. | 2420Z912D2 | [1] | HOSE | KOB |
| 43. | 2418Z560D1 | [1] | HOSE | KOB |
| 44. | ZS13C08030 | [2] | SCREW | KOBM08x1.25x30mm Superseded by part number: ZS18C08030 |
| 45. | ZS18C12040 | [1] | SCREW,Hex, M12 x 40mm | KOBM12x1.75x40mm |
| 46. | ZS13F10025 | [11] | SCREW | KOBCAPSCREW Superseded by part number: ZS18F10025 |
| 47. | ZN13F10008 | [1] | NUT | KOB Superseded by part number: ZN18F10008 |
| 48. | ZC15X10500 | [1] | CLIP | KOB |
| 49. | ZW22X16000 | [2] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 50. | ZS13C12025 | [2] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 51. | ZW13H12000 | [2] | WASHER | KOB |
| 52. | ZS13C18120 | [1] | CAPSCREW M18x2.0x120mm | CAPSCREW M18x2.0x120mm |
| 53. | 2420T4376D3 | [1] | SCREW | KOB |
| 54. | ZC15X09000 | [1] | CLAMP | KOB |
| 55. | ZS13C10035 | [2] | SCREW | KOBM10x1.50x35mm, Serial Range: YPU00301-YPU00329 Superseded by part number: ZS18C10035 |
| . . | ZS13C10035 | [4] | SCREW | KOBM10x1.50x35mm, Start Serial: YPU00330 Superseded by part number: ZS18C10035 |
| 56. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 57. | ZW16X12000 | [1] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 58. | ZS13C16040 | [1] | SCREW | KOBM16x2.0x40mm |
| 59. | ZS13C10020 | [8] | SCREW | KOBM10x1.50x20mm, Serial Range: YPU00301-YPU00329 Superseded by part number: ZS18C10020 |
| . . | ZS13C10020 | [4] | SCREW | KOBM10x1.50x20mm, Start Serial: YPU00330 Superseded by part number: ZS18C10020 |
| 60. | ZS13C16035 | [5] | SCREW | KOBM16x2.0x35mm |
| 62. | ZS18C08025 | [2] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 63. | ZW22X08000 | [7] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| . . | ZW22X08000 | [2] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 67. | 2420N389 | [1] | PIPE | |
| 68. | 2432R234 | [1] | CLAMP | KOB |
| 69. | 2444R2043 | [1] | HOSE | KOB |
| 71. | 2450R163F1 | [1] | INDICATOR | KOB Superseded by part number: LE11P01015F1 |
| 72. | 2416Z573 | [2] | RUBBER SLEEVE | KOB |
| 73. | 2416Z574 | [2] | RUBBER SLEEVE | KOB |
| 74. | 2418T18173 | [4] | COLLAR CLAMP | KOB |
| 76. | NSS | [1] | NOT SOLD SEPARAT | CONPUMP ASSY, CONNECTOR |
| 78. | 2432Z290 | [1] | CLIP | KOBWire Ties -- 185mm Long, Serial Range: YPU00301-YPU00339 Superseded by part number: PY01P01043D3 |
| . . | 2432Z290 | [2] | CLIP | KOBWire Ties -- 185mm Long, Start Serial: YPU00340 Superseded by part number: PY01P01043D3 |
| 79. | 2489U268F1 | [1] | SENDER UNIT,65 Degrees C, 149 Degrees F - 115 Degrees C, 239 Degrees F | KOBTHERMO |
| 80. | 2416N5814 | [1] | BRACKET, Serial Range: YPU00301-YPU00329 | BRACKET, Serial Range: YPU00301-YPU00329 |
| 81. | 2444R1143 | [1] | FLEXIBLE HOSE | KOB |
| 82. | 2418P23194 | [1] | EXHAUST SYSTEM PIPE | KOB |
| 83. | 2420T7157 | [1] | EXHAUST MANIFOLD | KOB Superseded by part number: LP12P01003P1 |
| 84. | 2414P7785 | [1] | GUARD, Serial Range: YPU00301-YPU00329 | GUARD, Serial Range: YPU00301-YPU00329 |
| 85. | 2432T2369 | [1] | CLAMP | KOB |
| 86. | ZN18C12010 | [1] | NUT | KOBM12x1.75mm |
| 87. | 2479R1770 | [2] | INSULATOR | KOB |
| 88. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER, E/G PARTIAL |
| 89. | 2415Z195 | [2] | BAND | BAND |
| 90. | 2444Z3644D2 | [1] | HOSE | KOB Superseded by part number: VI8970155561 |
| 91. | 2444Z3643D2 | [1] | HOSE | KOB Superseded by part number: VI8970155571 |
| 92. | 2444Z3813 | [2] | SPECIAL BOLT | KOB Superseded by part number: 8970233050 |
| 93. | 2418Z754 | [4] | PACKING | KOB Superseded by part number: 426200A1, 77253529 |
| 94. | 2444Z3812 | [2] | SPECIAL BOLT | KOB Superseded by part number: 1096750880 |
| 95. | 2418Z755 | [4] | PACKING | KOB Superseded by part number: VI1096300850 |
| 96. | 2416P15740 | [1] | BRACKET | |
| 97. | 2420P1586 | [1] | PIPE | |
| 98. | 2420Z1366 | [1] | HOSE, RUBBER | HOSE, RUBBER |
| 99. | 2420T2948D5 | [2] | U-BOLT | KOBM08x1.25x ID 45 x 80.5mm Long |
| 100. | ZE82T12000 | [1] | PLUG | KOB3/4" PT |
| 101. | 2416P15858 | [2] | STAY | STAY |
| 102. | ZC15X05000 | [2] | CLIP | KOB |
| 103. | ZS13C10030 | [2] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 104. | 2479Z2204 | [1] | INSULATOR | KOB |
| 105. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm, Serial Range: YPU00301-YPU00329 Superseded by part number: 83990583 |
| . . | ZW26X08000 | [5] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm, Start Serial: YPU00330 Superseded by part number: 83990583 |
| 108. | 2418T18152D9 | [1] | SPACER | SPACER |
| 120. | ZW13H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 121. | ZN18C08007 | [11] | NUT | KOBM08x1.25mm, Start Serial: YPU00330 |
| 122. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm, Start Serial: YPU00330 |
| 123. | ZS18C10035 | [2] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm, Start Serial: YPU00330 |
| 124. | ZW26X12000 | [1] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm, Start Serial: YPU00330 |
| 125. | 2416N6107 | [1] | BRACKET | KOB, Start Serial: YPU00330 |
| 126. | 2414P8376 | [1] | GUARD, Start Serial: YPU00330 | GUARD, Start Serial: YPU00330 |
