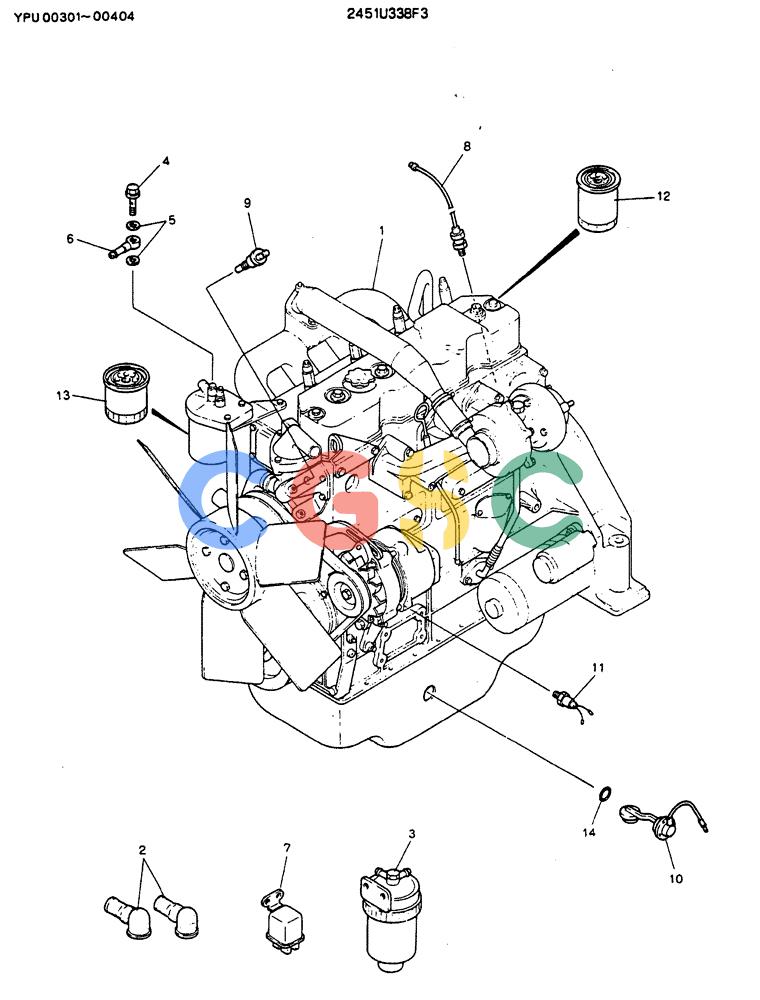

神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (05-002) - ENGINE ASSY P/N 2451U338F3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
963 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2451U338F3 | [1] | ENGINE | KOB |
| 2. | VI9829513400 | [1] | CABLE TERMINAL | KOBCAP KIT, TERMINAL |
| 3. | VI1132007470 | [1] | SEDIMENTOR, WATER | |
| 4. | VI9099063251 | [2] | BOLT | KOBEYE BOLT Superseded by part number: 87596570 |
| 5. | VI9095720140 | [4] | PACKING | KOBPACKING |
| 6. | VI5154112231 | [2] | PIPE | KOBFUEL PIPE |
| 7. | VI8942580140 | [1] | RELAY | KOBGLOW RELAY Superseded by part number: VI8944233140 |
| 8. | VI1831270140 | [1] | SENSOR | KOBTACHO SENSOR Superseded by part number: 1831270140 |
| 9. | VI5824500140 | [1] | SWITCH | KOBOVER HEAT SW. Superseded by part number: 71494082 |
| 10. | VI1824800280 | [1] | DIPSTICK | KOBLEVEL SENSOR, OIL Superseded by part number: VI8971193581 |
| 11. | VI1824100081 | [1] | SWITCH | KOBOIL PRESSURE SW. Superseded by part number: 76554707 |
| 12. | VI8943212190 | [1] | FILTER | KOBFILTER ELEMENT, OIL Superseded by part number: 2451U309-1 |
| 13. | VI8944537381 | [1] | ELEMENT | KOBFILTER ELEMENT, FUEL Superseded by part number: 8944537382 |
| 14. | VI1096233550 | [1] | RUBBER SEAL | KOBO-RING Superseded by part number: 87377928 |
