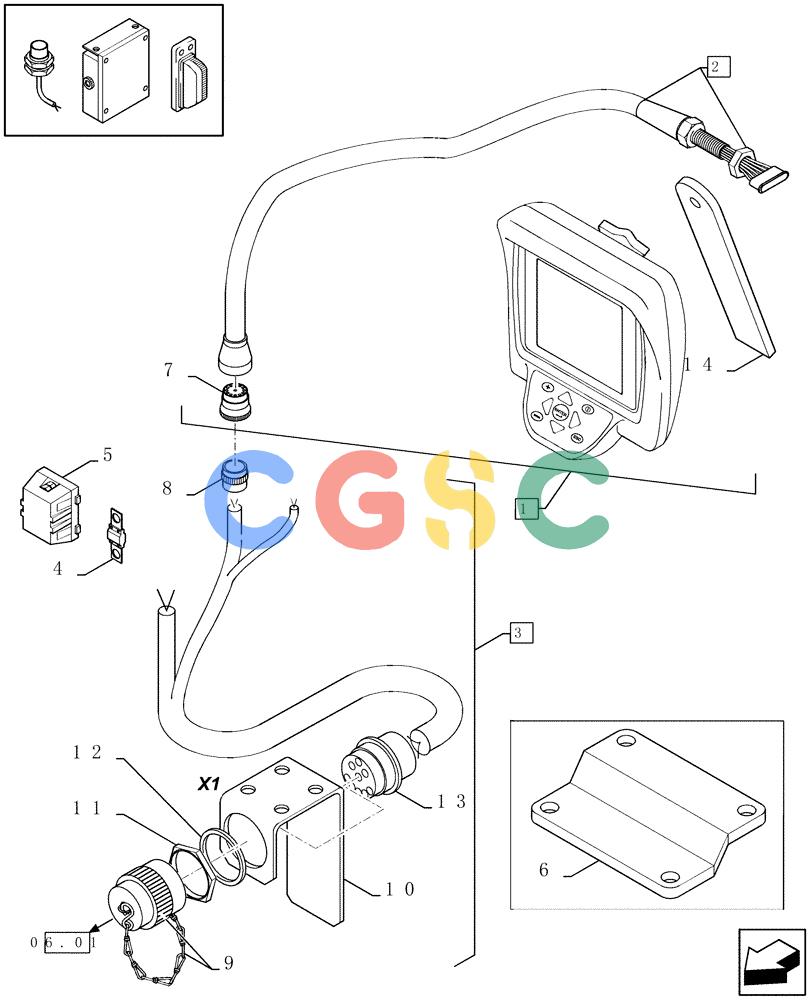

凯斯零件查询(LBX421R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (6/01-12/03) (06.06[01]) - MONITOR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
526 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84437609
|
[1] |
CONTROL MONITOR
|
ZED
(2,14), Serial Range: -C257 Superseded by part number: 84440344
|
| 1. |
84440344
|
[1] |
CONTROL MONITOR
|
ZED
(2,14), Start Serial: D258
|
| 2. |
84807172
|
[1] |
WIRE HARNESS
|
ZED
(7) Superseded by part number: 6046735070, 84806050
|
| 3. |
84437435
|
[1] |
WIRE HARNESS
|
ZED
(4,5, Serial Range: 8-13)
|
| 4. |
84078783
|
[1] |
FUSE,80A, Midival
|
ZED
80A
|
| 5. |
84078784
|
[1] |
FUSE HOLDER
|
ZED
|
| 6. |
84429657
|
[1] |
SUPPORT
|
ZED
|
| 7. |
84074253
|
[1] |
MULTIPOLE CONNECTOR,Female, 9 Pole
|
ZED
|
| 8. |
84074255
|
[1] |
CONTACT HOUSING,Male, 9 Pole
|
ZED
|
| 9. |
767456
|
[1] |
PLUG
|
NH
Superseded by part number: 87716289
|
| 10. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
SUPPORT
|
| 12. |
84037188
|
[1] |
O-RING,3mm Thk x 34.2mm ID, 70 Duro
|
ZED
|
| 13. |
84074256
|
[1] |
TERMINAL CONNECTOR,Male
|
ZED
Superseded by part number: 352506A1
|
| 14. |
84437266
|
[1] |
BRACKET
|
ZED
|
