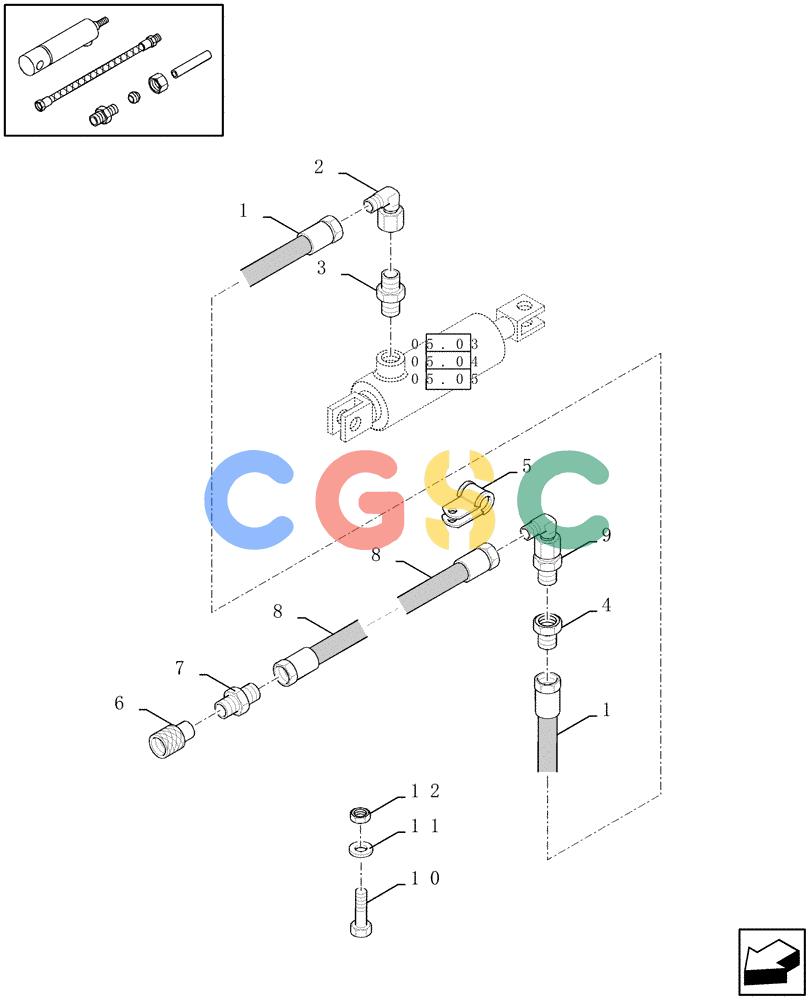

凯斯零件查询(LBX421R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (6/01-12/03) (07.01[01]) - HYDRAULIC BRAKES, SINGLE AXLE, NOT FOR NA Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
752 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
89839026
|
[1] |
HOSE
|
ZED
Superseded by part number: 84449978
|
| 2. |
89837644
|
[1] |
ELBOW
|
ZED
Superseded by part number: 9837644
|
| 3. |
89837622
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 9837622
|
| 4. |
84078124
|
[1] |
HYD CONNECTOR,9/16" - 18 JIC x M16 x 1.5
|
ZED
|
| 5. |
80396718
|
[2] |
STRAP
|
ZED
Superseded by part number: 529070
|
| 6. |
89839028
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 9839028
|
| 7. |
80395019
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 395019
|
| 8. |
84031413
|
[1] |
HYDRAULIC HOSE,7.9mm ID x 2500mm L, SAE 100R1
|
ZED
|
| 9. |
84007700
|
[1] |
ELBOW
|
ZED
|
| 10. |
43128
|
[2] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 11. |
80322358
|
[3] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 12. |
89706690
|
[2] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
