神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (06-003) - BATTERY ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
575 次

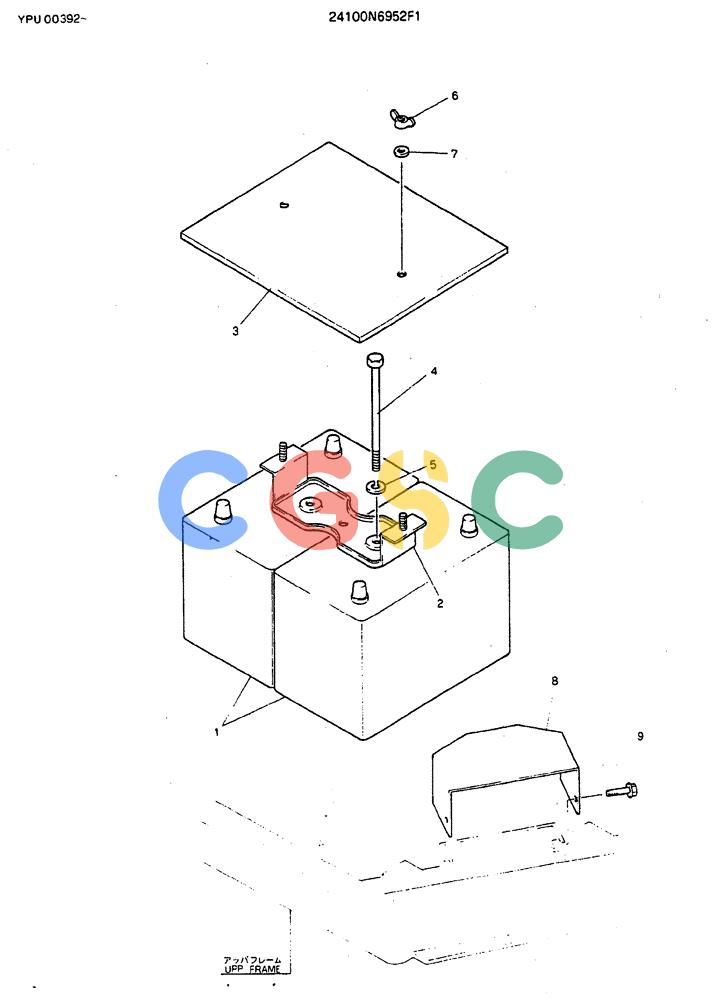

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N6952F1 | [1] | BATTERY ASSY | |
| 1. | 2411U18 | [2] | DRY BATTERY | KOBBATTERY |
| 2. | 2416P6170 | [1] | U-BRACKET | KOB |
| 3. | 2414P8276 | [1] | COVER | |
| 4. | R20T0084D17 | [2] | CAPSCREW | KOBSCREW M10x1.50x235mm |
| 5. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 6. | 2420Z1372 | [2] | NUT | KOB |
| 7. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 8. | 2414P7979 | [1] | COVER | COVER |
| 9. | 2420T6788 | [2] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
