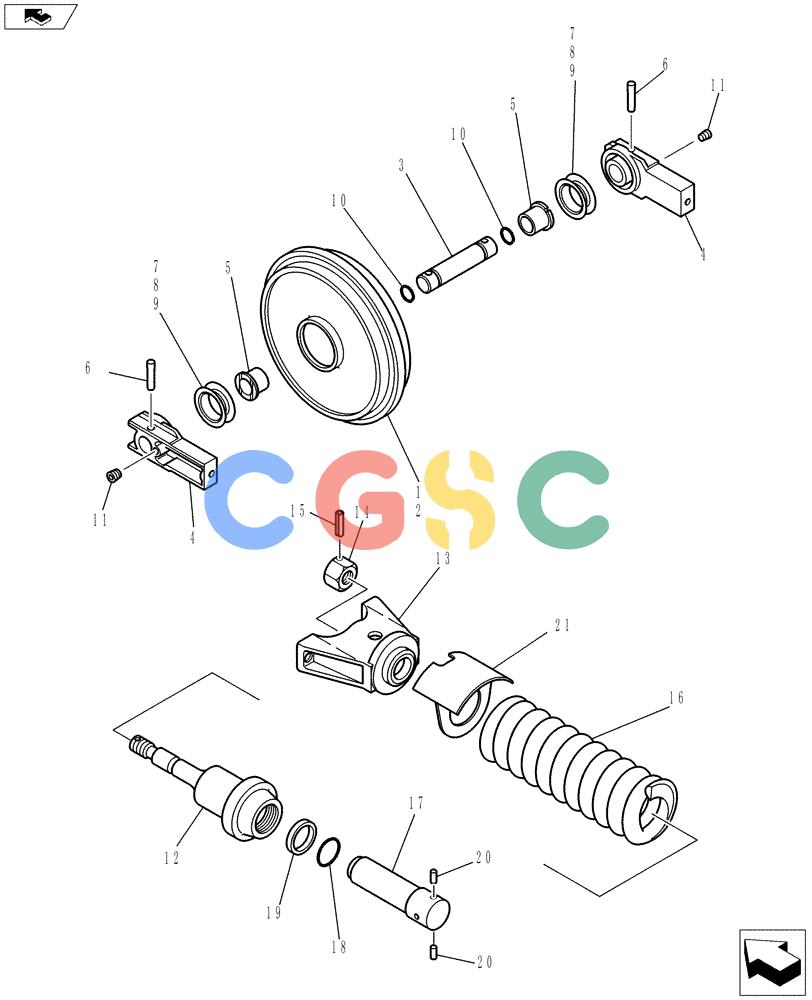

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (02-006[02]) - IDLER ASSEMBLY, CRAWLER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
571 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT52D00003P1 | [1] | IDLER | KOB |
| 2. | YT52D01001P1 | [1] | SHAFT | KOB |
| 3. | YT52D01002P1 | [2] | COLLAR | KOB |
| 4. | 2405P490 | [2] | BUSHING | KOB |
| 5. | LP52D01006P1 | [2] | PIN | KOB |
| 6. | 2445R438F1 | [2] | SEAL | KOBFloating |
| 7. | 2445R438S1 | [2] | SEAL | KOB |
| 8. | 2445R438S2 | [2] | O-RING | KOB |
| 9. | ZD11G04500 | [2] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOB |
| 10. | ZE82T02000 | [2] | PLUG | KOB |
| 11. | YR54D01001P1 | [1] | CYLINDER | KOBGrease |
| 12. | YR54D01002P1 | [1] | BRACKET | KOB |
| 13. | YR54D01007P1 | [1] | NUT | KOB |
| 14. | ZP26D05050 | [1] | PIN | KOBSpring |
| 15. | YR54D01004P1 | [1] | SPRING | KOB |
| 16. | YR54D01005P1 | [1] | PISTON | KOB |
| 17. | ZD12G05000 | [1] | O-RING,49.40mm ID x 55.60mm OD x 3.10mm | KOB |
| 18. | 2445Z1081 | [1] | SEAL | KOBOil |
| 19. | 2419T6274 | [2] | PIN | KOB Superseded by part number: PE54D01002P1 |
| 20. | YT54D01003P1 | [1] | COVER | KOB |
