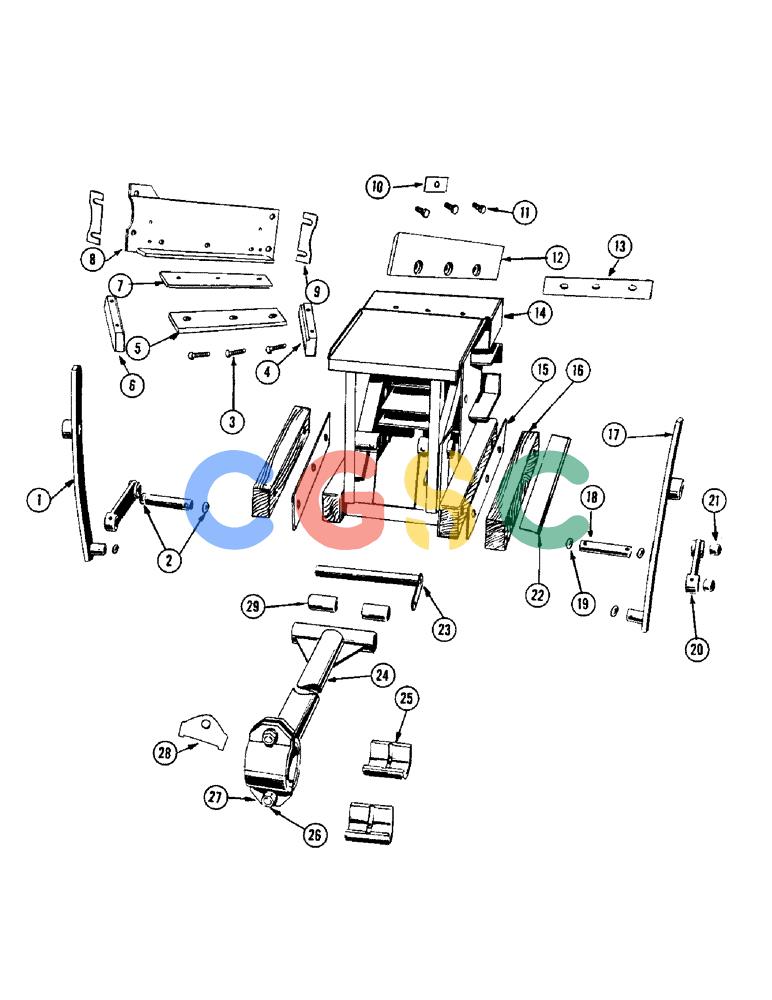

凯斯零件查询(133) - CASE TWINE TIE RECTANGULAR BALER (1/57-12/62) (20) - PLUNGER AND PLUNGER PITMAN Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
154 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
B15546
|
[1] |
ARM - pivot, feeder head, R.H.
|
|
| 2. |
O46FG
|
[4] |
|
CAS
WASHER - pivot arms
|
| 3. |
T19473
|
[3] |
PLOW BOLT
|
CAS
BOLT - (3/8" x 1-1/2" #3 plow w/hex. nut) Stationary knife
|
| 4. |
B11897
|
[1] |
GUIDE - knife, L.H.
|
|
| 5. |
B11893
|
[1] |
|
CAS
KNIFE - stationary
|
| 6. |
B11896
|
[1] |
GUIDE - knife, R.H.
|
|
| 7. |
B11895
|
[1] |
BAR - backup, stationary knife
|
|
| 8. |
B15668
|
[1] |
|
CAS
ANGLE - backup bar
|
| 9. |
B11199
|
[1] |
SHIM - stationary knife support
|
|
| 10. |
B15677
|
[1] |
SHIM - plunger knife
|
|
| 11. |
O4721N
|
[3] |
|
CAS
CAP SCREW - plunger knife
|
| 12. |
B15607
|
[1] |
|
CAS
KNIFE - plunger
|
| 13. |
B11869
|
[1] |
|
CAS
SHIM - plunger knife
|
| 14. |
B15687
|
[1] |
|
CAS
PLUNGER
|
| 15. |
B11799
|
[1] |
|
CAS
SHIM - plunger runners
|
| 16. |
B11026
|
[2] |
|
CAS
RUNNER - plunger
|
| 17. |
B15547
|
[1] |
|
CAS
ARM - pivot, feeder head, L.H.
|
| 18. |
B11027
|
[2] |
|
CAS
PIN - plunger link
|
| 20. |
B15541
|
[2] |
ARM - link, plunger to feeder pivot arm
|
|
| 21. |
B11899
|
[4] |
|
CAS
BUSHING
|
| 22. |
B11944
|
[1] |
SHIM - top, plunger runner
|
|
| 23. |
B11804
|
[1] |
|
CAS
PIN - pitman bearing, plunger end
|
| 24. |
B11029
|
[1] |
PITMAN
|
|
| 25. |
O2698N
|
[1] |
|
CAS
BUSHING - Pitman bearing, crankshaft end
|
| 26. |
O7006A
|
[4] |
WASHER - cap screw ref. 27
|
|
| 27. |
O116FH
|
[2] |
X
|
CAS
CAP SCREW - Pitman bearing, crankshaft end Superseded by part number: F62016
|
| 28. |
O2365N1
|
[14] |
|
CAS
SHIM - (16 ga.) Pitman bearing, crankshaft end
|
| 29. |
B11502
|
[2] |
|
CAS
BUSHING - Pitman bearing, plunger end
|
| . . |
B11947
|
[2] |
SHIM - (28 ga.) Pitman bearing (Similar to ref. 28)
|
|
