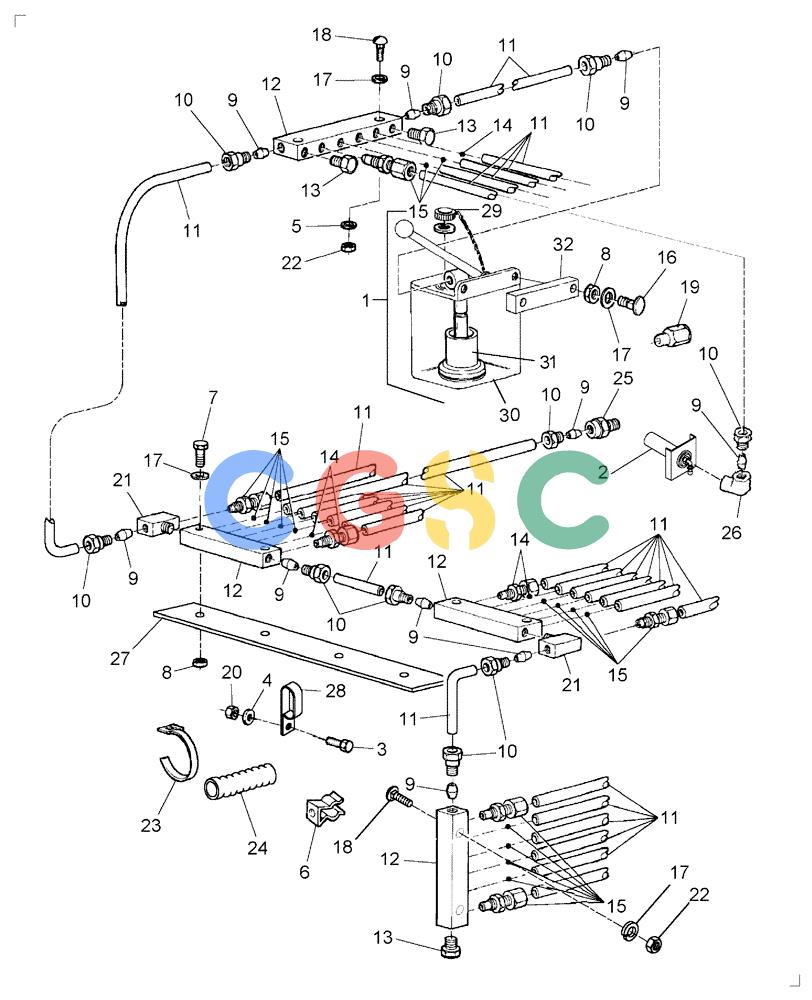

87725904
|
[1] |
DIA KIT, HARVESTER
|
NH
Manual Oiler, Twine, Includes: Installation Instructions
|
| 1. |
9842501
|
[1] |
HYDRAULIC PUMP
|
ZED
|
| 2. |
132451
|
[1] |
PIN
|
PA
Clevis, Lube
|
| 3. |
412255
|
[1] |
BOLT,Hex, M4 x 20mm, Cl 8.8
|
NH
|
| 4. |
322355
|
[1] |
BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk
|
NH
|
| 5. |
87361
|
[4] |
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
|
NH
|
| 6. |
86629501
|
[3] |
CLIP
|
NH
|
| 7. |
43117
|
[1] |
SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8
|
NH
Superseded by part number: 87317695
|
| 8. |
15896221
|
[4] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
| 9. |
576894
|
[32] |
CONE TYPE FERRULE
|
NH
|
| 10. |
576895
|
[32] |
NUT,5/16" - 24
|
NH
Sleeve
|
| 11. |
9817659
|
[1] |
PLASTIC-RUBBER TUBE
|
ZED
Nylon
|
| 12. |
799336
|
[4] |
DUCT
|
ZED
Manifold, 8 Way
|
| 13. |
576896
|
[1] |
PLUG
|
PA
Maniflod
|
| 14. |
9602844
|
[1] |
ADJUSTMENT SCREW
|
ZED
ACL meter unit 1/2
|
| 15. |
86589363
|
[1] |
ADJUSTMENT SCREW
|
PA
ACL meter unit
|
| 16. |
88832
|
[6] |
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd
|
GI
|
| 16. |
280498
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2 1/4", Gr 5
|
GI
|
| 17. |
322357
|
[10] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 18. |
280687
|
[6] |
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/4", Gr 5
|
FTR
|
| 19. |
9842504
|
[2] |
ADAPTER
|
BAS
|
| 20. |
100012
|
[1] |
NUT,M4 x 0.7, Cl 8
|
NH
Superseded by part number: 57121
|
| 21. |
9842503
|
[2] |
HYD CONNECTOR
|
PA
T Block
|
| 22. |
7770
|
[6] |
NUT,Hex, 1/4 - 20, Cl 5
|
NH
|
| 23. |
263117
|
[8] |
CABLE TIE,292.1mm L, Nylon, Black
|
NH
CABLE STRAP
|
| 24. |
702648
|
[4] |
RIGID TUBE,6.35 mm OD, 127 mm Length
|
PA
Plastic, Protection
|
| 25. |
86516715
|
[1] |
HYD CONNECTOR
|
PA
|
| 26. |
9842502
|
[1] |
ELBOW
|
PA
90°
|
| 27. |
86977508
|
[1] |
BRACKET
|
PA
|
| 28. |
332401
|
[1] |
WIRE CLAMP,7.9mm, Coat, 4.2mm Bolt Hole, P Type
|
GI
|
| 29. |
87014974
|
[1] |
FILLER CAP
|
RAC
|
| 30. |
87014972
|
[1] |
RESERVOIR
|
RAC
|
| 31. |
87014973
|
[1] |
KIT
|
RAC
Filter
|
| 32. |
84238645
|
[1] |
SPACER
|
NH
|
