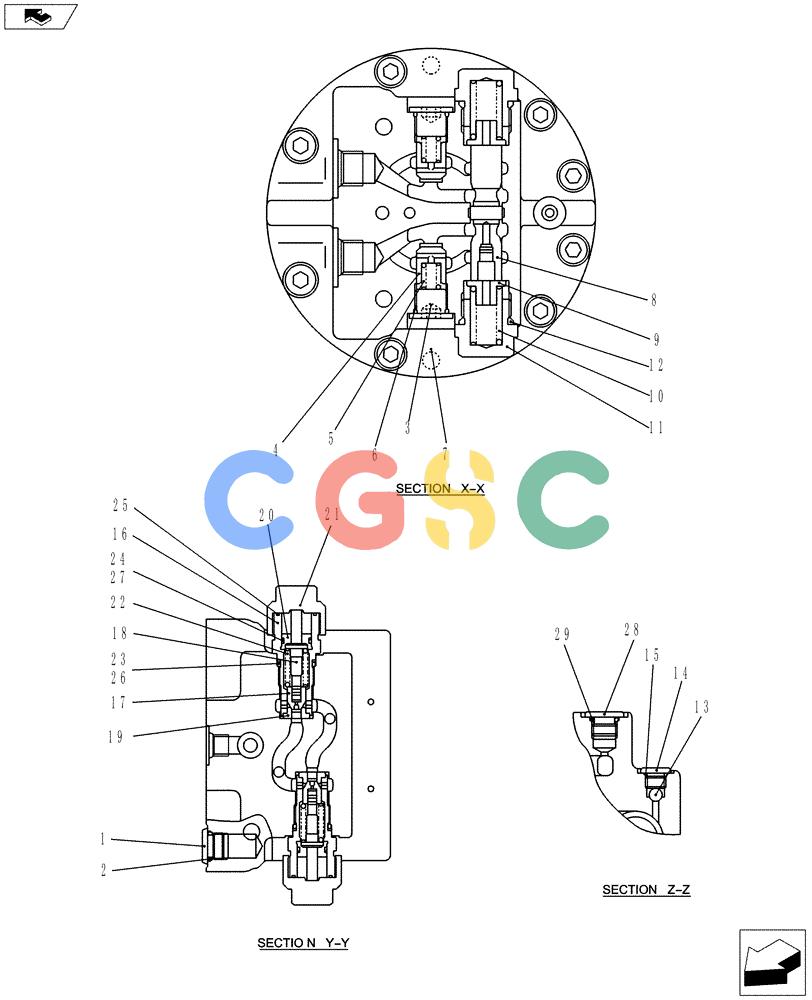

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (02-009[03]) - MOTOR INSTALLATION, PROPEL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
351 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT15V00012S024 | [3] | PLUG | KOB |
| 2. | ZD11P01400 | [3] | O-RING | KOB |
| 3. | YT15V00012S051 | [2] | PLUG | KOB |
| 4. | YT15V00012S052 | [2] | POPPET | KOB |
| 5. | YT15V00012S053 | [2] | SPRING | KOB |
| 6. | ZD12P01800 | [2] | O-RING | KOB |
| 7. | YT15V00012S060 | [2] | PIN | KOB |
| 8. | YT15V00012S063 | [1] | SPOOL | KOB |
| 9. | YT15V00012S065 | [2] | SPRING SEAT | KOBStopper |
| 10. | YT15V00012S066 | [2] | SPRING | KOB |
| 11. | YT15V00012S067 | [2] | COVER | KOB |
| 12. | ZD12P02800 | [2] | O-RING | KOB |
| 13. | YT15V00012S072 | [2] | BALL | KOB |
| 14. | YT15V00012S073 | [2] | PLUG | KOB |
| 15. | ZD12P00800 | [4] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB |
| 16. | NSS | [2] | NOT SERVICED SEPARATELY | CONBody |
| 28. | YT15V00012S087 | [2] | PLUG | KOB |
| 29. | ZD12P01100 | [2] | O-RING | KOB |
| . . | YT15V00012R500 | [2] | REPAIR KIT | KOBConsists Of Item: 16(1), 17(1), 18(1), 19(1), 20(1), 21(1), 22(1), 23(1), 24(1), 25(1), 26(1), 27(4) |
