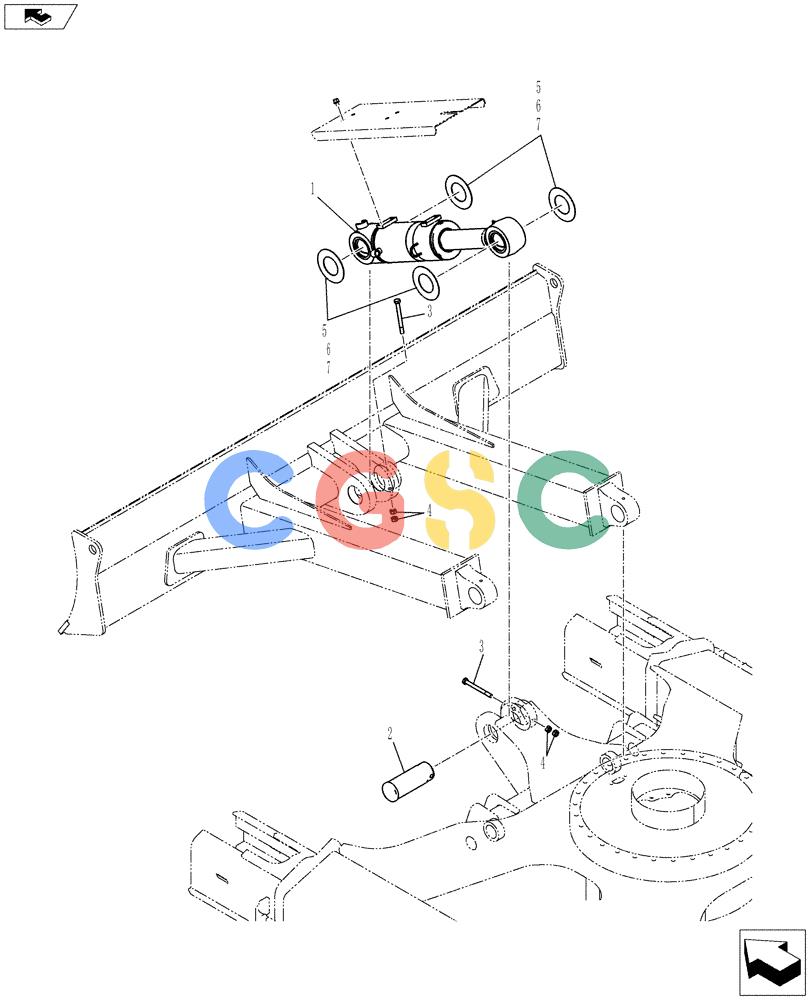

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (02-010[01]) - CYLINDER INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
451 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF51B00041F1 | [1] | | |
| 1. | LF01V00008F1 | [1] | LIFT CYLINDER | KOBDozer |
| 2. | YT51B01004P1 | [2] | PIN | KOB |
| 3. | HS18C12125G2 | [2] | SCREW | KOBCap |
| 4. | ZN18C12010 | [4] | NUT | KOB |
| 5. | B16T0442D1 | [2] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOB1.2 |
| 6. | B16T0442D2 | [2] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOB1.6 |
| 7. | B16T0442D5 | [2] | SHIM,130mm OD x 72mm ID x 2.3mm Thk | KOB2.3 |
