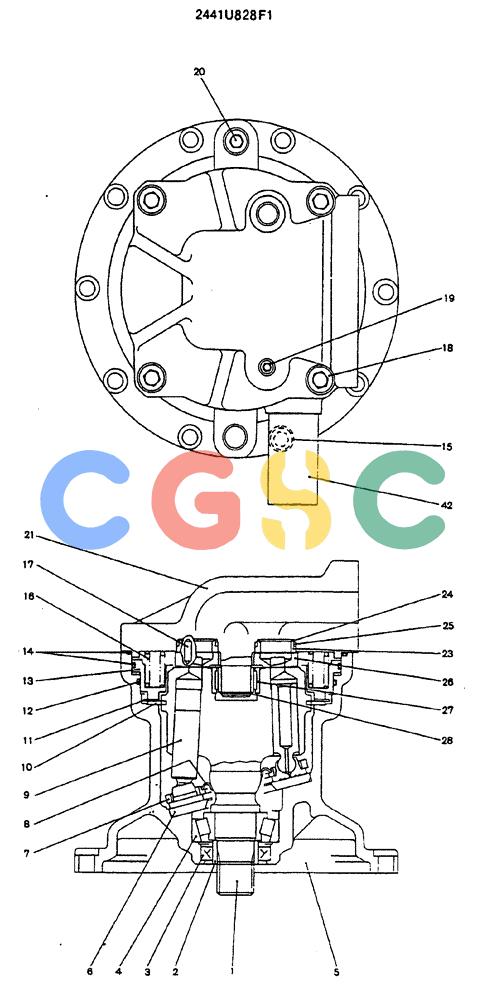

神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (13-001) - MOTOR ASSY (SWING) P/N 2441U828F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
276 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2441U828F1 | [1] | MOTOR-PUMP | KOB(SWING) CONSISTS OF THE FOLLOWING PARTS |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCYLINDER ASSY |
| 2. | 2441U754S2 | [1] | RING | KOBRACE, INNER |
| 3. | 2441U754S3 | [1] | OIL SEAL | KOB Superseded by part number: 2437U369S33 |
| 4. | 2441U754S4 | [1] | TRACK ROLLER | KOBBEARING, ROLLER |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING |
| 6. | 2441U754S6 | [1] | PLATE | KOB |
| 7. | 2441U828S7 | [1] | PLATE, RETURN | |
| 8. | 2441U828S8 | [1] | SPRING, BACKING | |
| 9. | NSS | [9] | NOT SOLD SEPARAT | CONPISTON ASSY |
| 10. | 2441U754S10 | [1] | PLATE | KOB |
| 11. | 2441U754S11 | [1] | PLATE | KOB |
| 12. | 2441U754S12 | [1] | O-RING | KOB |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 14. | 2441U754S14 | [2] | RING | KOB |
| 15. | 2441U828S15 | [1] | BOLT,Hex Socket Head, M12 x 130mm | KOB Superseded by part number: ZS23C12130 |
| 16. | 2441U754S16 | [20] | SPRING | KOB |
| 17. | 2441U754S17 | [2] | PIN | KOB |
| 18. | ZS23C14045 | [4] | SCREW,Hex Socket Head, M14 x 45mm | KOBM14x2.0x45mm Superseded by part number: ZS28C14045 |
| 19. | 2441U455S90 | [1] | PLUG | KOB Superseded by part number: ZE82T04000 |
| 20. | 2441U754S20 | [1] | PLUG | KOB Superseded by part number: 2441U829S33 |
| 21. | NSS | [1] | NOT SOLD SEPARAT | CONCOVER |
| 23. | 2441U754S23 | [4] | BUSHING | KOB |
| 24. | 2441U754S24 | [4] | SPRING | KOB |
| 25. | 2441U754S25 | [4] | RING | KOB |
| 26. | 2441U754S26 | [1] | PLATE | KOB |
| 27. | 2441U754S27 | [1] | NEEDLE BEARING | KOBBEARING |
| 28. | 2441U754S28 | [1] | RING | KOB |
| 42. | 2436U1309F1 | [1] | HYDRAULIC VALVE | KOBASSY, REDUCTION |
