神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (13-002) - VALVE ASSY RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
218 次

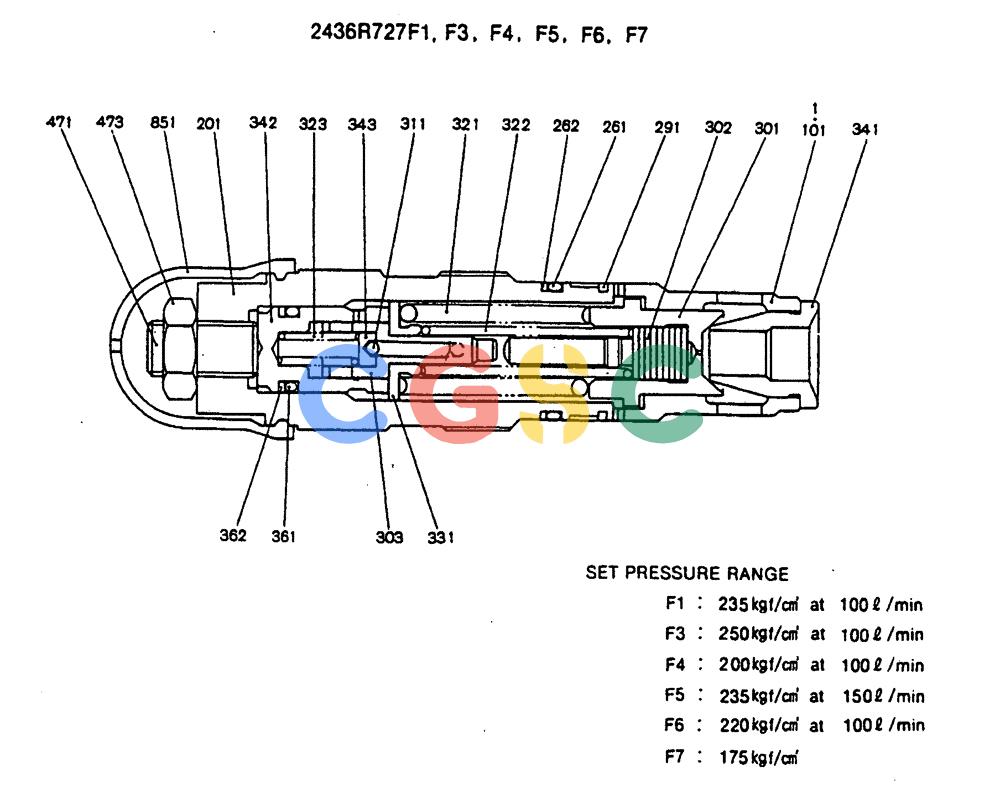

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R727F1 | [1] | VALVE PRESSURE RELIE | KOBCONSISTS OF THE FOLLOWING PARTS |
| . . | 2436R727F3 | [1] | VALVE PRESSURE RELIE | KOBCONSISTS OF THE FOLLOWING PARTS |
| . . | 2436R727F4 | [1] | VALVE PRESSURE RELIE | KOBCONSISTS OF THE FOLLOWING PARTS |
| . . | 2436R727F5 | [1] | VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| . . | 2436R727F6 | [1] | VALVE PRESSURE RELIE | KOBCONSISTS OF THE FOLLOWING PARTS |
| . . | 2436R727F7 | [1] | CONSISTS OF THE FOLLOWING PARTS | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY F5 TO F7 ONLY |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY F1 TO F3 ONLY |
| 201. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 261. | ZD12G02500 | [1] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOBID 24.4 ± 0.25 x OD 30mm |
| 262. | ZD85G02500 | [1] | BACK-UP RING | KOBRing, Back-Up -- ID 25 x OD 30 x Th 1.25mm |
| 291. | NSS | [1] | NOT SOLD SEPARAT | CONRING, LOCK |
| 301. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 302. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 303. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONBALL |
| 321. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 322. | NSS | [1] | NOT SOLD SEPARAT | CONSFRING |
| 323. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 331. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 341. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 342. | NSS | [1] | NOT SOLD SEPARAT | CONBUSHING |
| 343. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 361. | NSS | [1] | NOT SOLD SEPARAT | CONO-RING |
| 362. | NSS | [1] | NOT SOLD SEPARAT | CONRING, BACK-UP |
| 471. | NSS | [1] | NOT SOLD SEPARAT | CONBOLT, ADJUST |
| 473. | NSS | [1] | NOT SOLD SEPARAT | CONNUT, LOCK |
| 851. | 2436R686S851 | [1] | CAP | KOB |
