神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (13-003) - VALVE ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
723 次

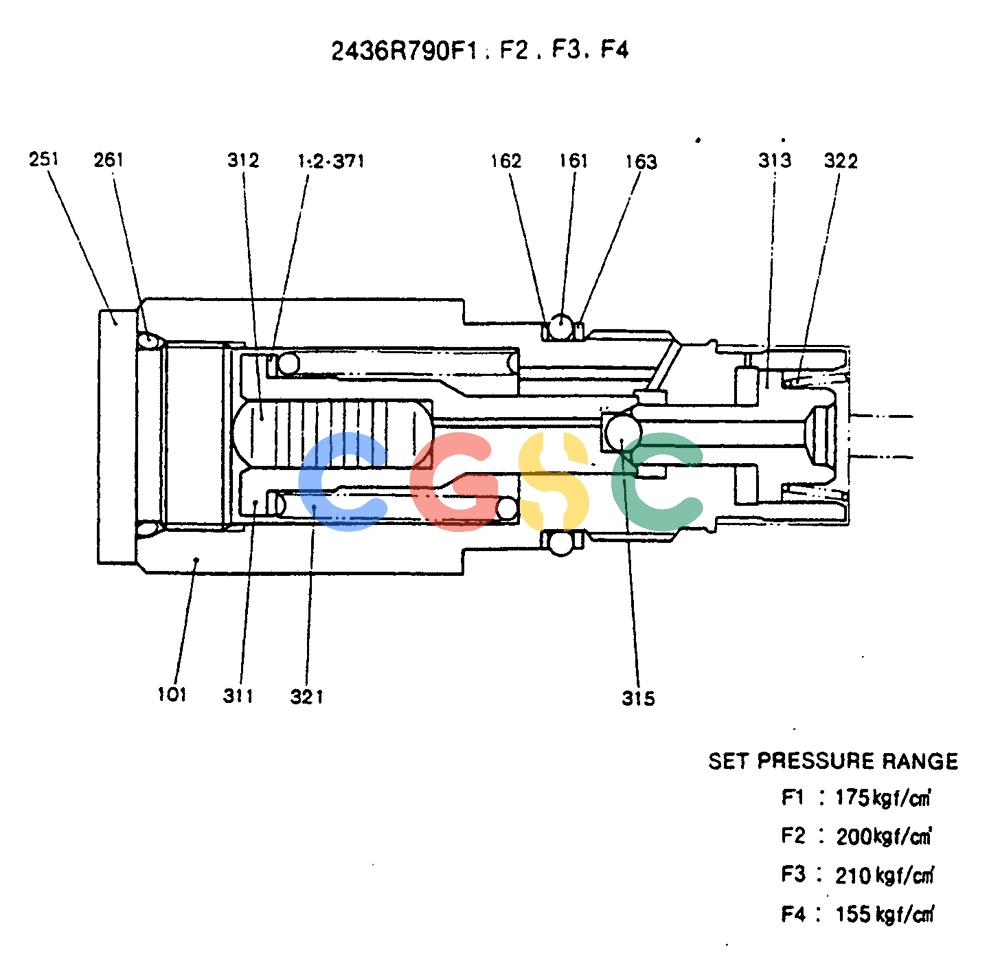

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R790F1 | [1] | CONSISTS OF THE FOLLOWING PARTS | |
| . . | 2436R790F2 | [1] | VALVE CONSISTS OF THE FOLLOWING PARTS | VALVE CONSISTS OF THE FOLLOWING PARTS |
| . . | 2436R790F3 | [1] | VALVE | KOBCONSISTS OF THE FOLLOWING PARTS Superseded by part number: 2436R790F8 |
| . . | 2436R790F4 | [1] | VALVE ASSY CONSISTS OF THE FOLLOWING PARTS | VALVE ASSY CONSISTS OF THE FOLLOWING PARTS |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONSHIM F2 ONLY |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSHIM F3 & F4 ONLY |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 161. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 162. | 2436U580S168 | [1] | BACK-UP RING | KOB |
| 163. | ZD85P02000 | [1] | RING | KOBBack-Up -- ID 20 x OD 24 x Th 1.25mm |
| 251. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 261. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 312. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 313. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 315. | NSS | [1] | NOT SOLD SEPARAT | CONBALL |
| 321. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 322. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 371. | NSS | [1] | NOT SOLD SEPARAT | CONSHIM F1 ONLY |
