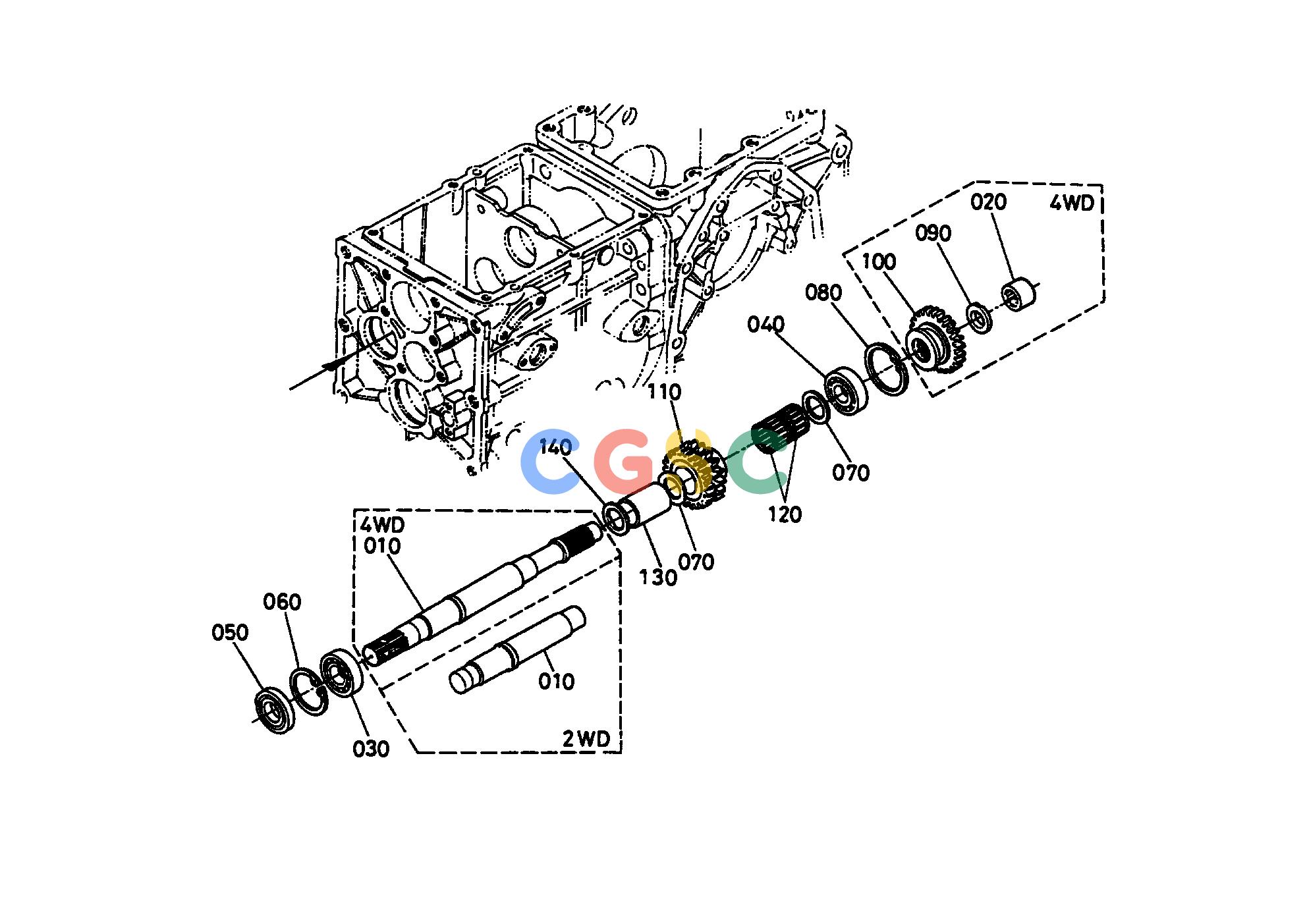

久保田零件查询T01300 REVERSE SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
370 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6732114810
|
[1] |
SHAFT REVERSE
|
1.8480(lbs); 0.840
|
| 020. |
6661114820
|
[1] |
BEARING NEEDLE
|
0.0000(lbs); 0.000
|
| 030. |
6731114820
|
[1] |
BEARING BALL
|
0.1540(lbs); 0.070
|
| 040. |
0810106204
|
[1] |
BEARING BALL
|
0.2244(lbs); 0.102
|
| 050. |
0950020428
|
[1] |
SEAL OIL
|
0.0264(lbs); 0.012
|
| 060. |
0461100420
|
[1] |
CIR-CLIP INTERNAL
|
0.0132(lbs); 0.006
|
| 070. |
6223114520
|
[2] |
COLLAR A
|
0.0110(lbs); 0.005
|
| 080. |
0461100470
|
[1] |
CIR-CLIP INTERNAL
|
0.0132(lbs); 0.006
|
| 090. |
6661114830
|
[1] |
COLLAR
|
0.0352(lbs); 0.016
|
| 100. |
6661114840
|
[1] |
GEAR
|
0.5720(lbs); 0.260
|
| 110. |
6740114850
|
[1] |
GEAR
|
0.8800(lbs); 0.400
|
| 120. |
0882222617
|
[2] |
BEARING NEEDLE
|
0.0264(lbs); 0.012
|
| 130. |
6671114872
|
[1] |
COLLAR
|
0.1100(lbs); 0.050
|
| 140. |
6671114880
|
[1] |
COLLAR
|
0.0000(lbs); 0.000
|
