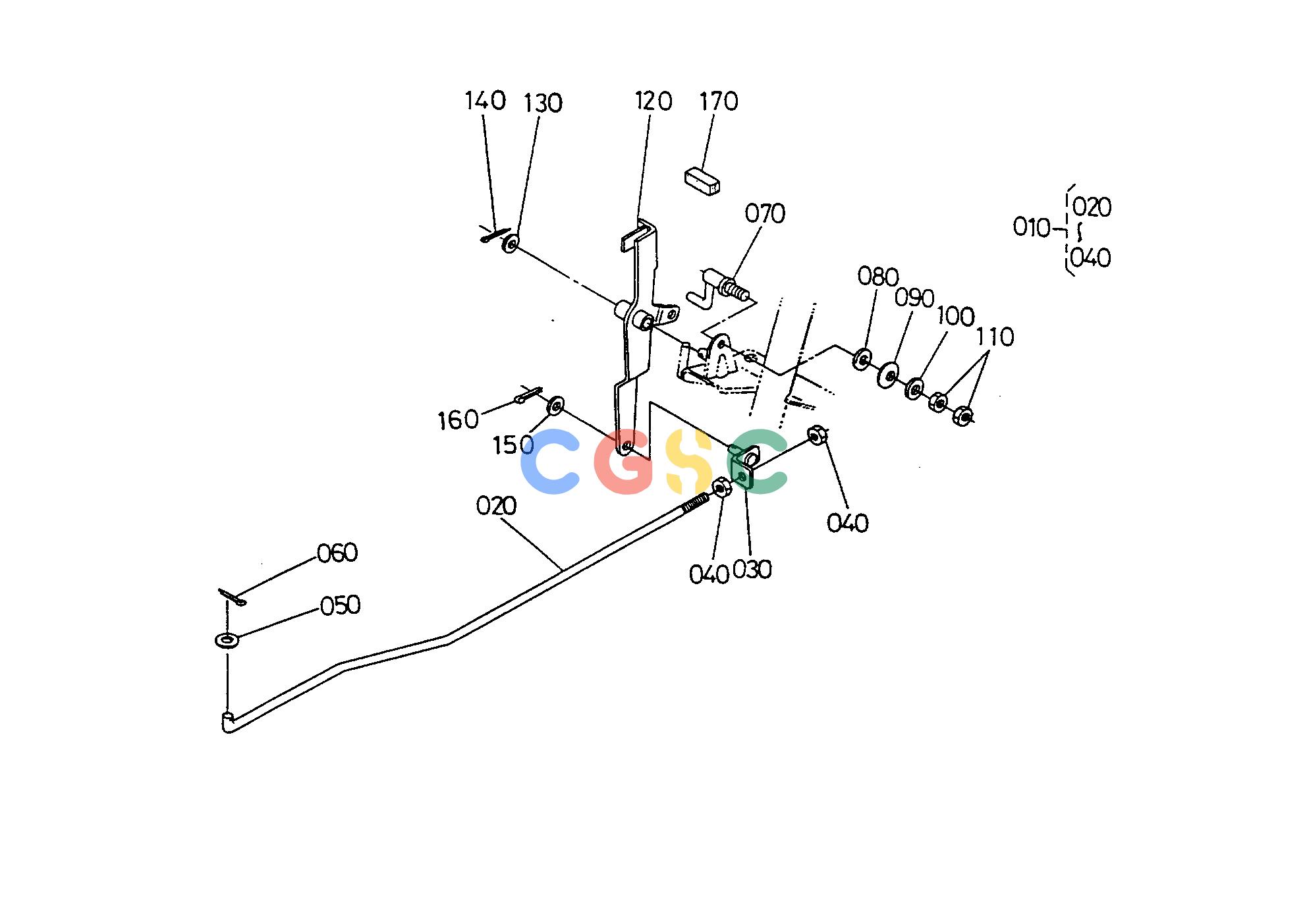

久保田零件查询T03600 RELEASE ROD TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
667 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6721143200
|
[1] |
ASSY ROD RELEASE
|
0.4620(lbs); 0.210
|
| 020. |
6721143210
|
[1] |
ROD RELEASE
|
0.3960(lbs); 0.180
|
| 030. |
6721143220
|
[1] |
STAY L
|
0.0440(lbs); 0.020
|
| 040. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 050. |
0401350060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 060. |
0551150215
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 070. |
6740143320
|
[1] |
FULCRUM LEVER
|
0.1760(lbs); 0.080
|
| 080. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 090. |
3221017190
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 100. |
0401550100
|
[1] |
WASHER PLAIN
|
0.0396(lbs); 0.018
|
| 110. |
0211850100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 120. |
6740143330
|
[1] |
ARM RELEASE
|
0.0000(lbs); 0.000
|
| 130. |
0401150100
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 140. |
0551150320
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 150. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 160. |
0551150215
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 170. |
6721143410
|
[1] |
RUBBER
|
0.0022(lbs); 0.001
|
