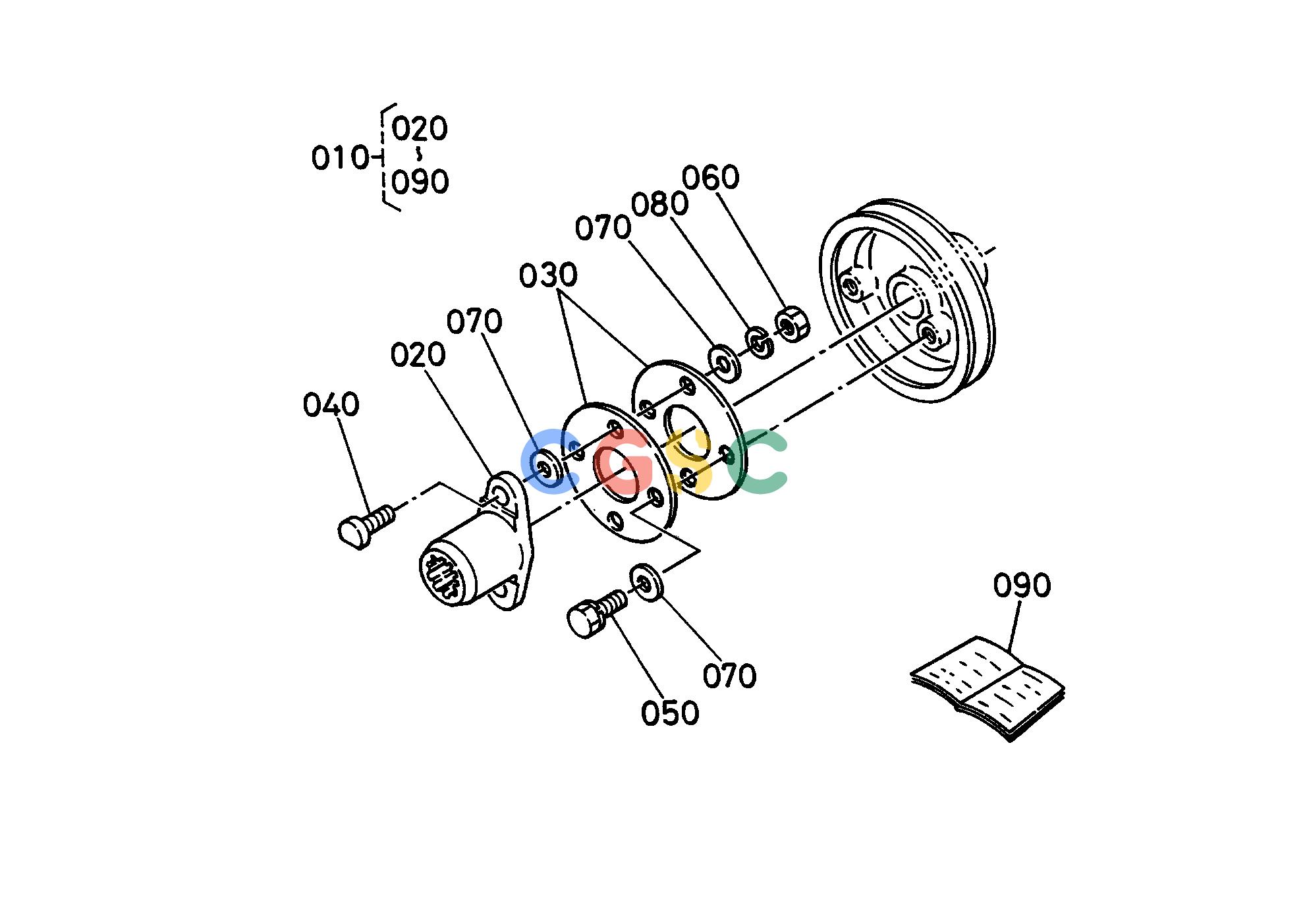

久保田零件查询T08700 FLANGE F.PTO [OPTION] TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
804 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6740188500
|
[1] |
ASSY FLANGE F-PTO
|
1.1396(lbs); 0.518
|
| 020. |
7652131550
|
[1] |
SHAFT COUPLING
|
0.7700(lbs); 0.350
|
| 030. |
7652131510
|
[2] |
PLATE COUPLING
|
0.0440(lbs); 0.020
|
| 040. |
7652131570
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 050. |
0113351022
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 060. |
0211850100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 070. |
0401350100
|
[6] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 080. |
0451250100
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 090. |
6740188510
|
[1] |
MANUAL
|
0.0000(lbs); 0.000
|
