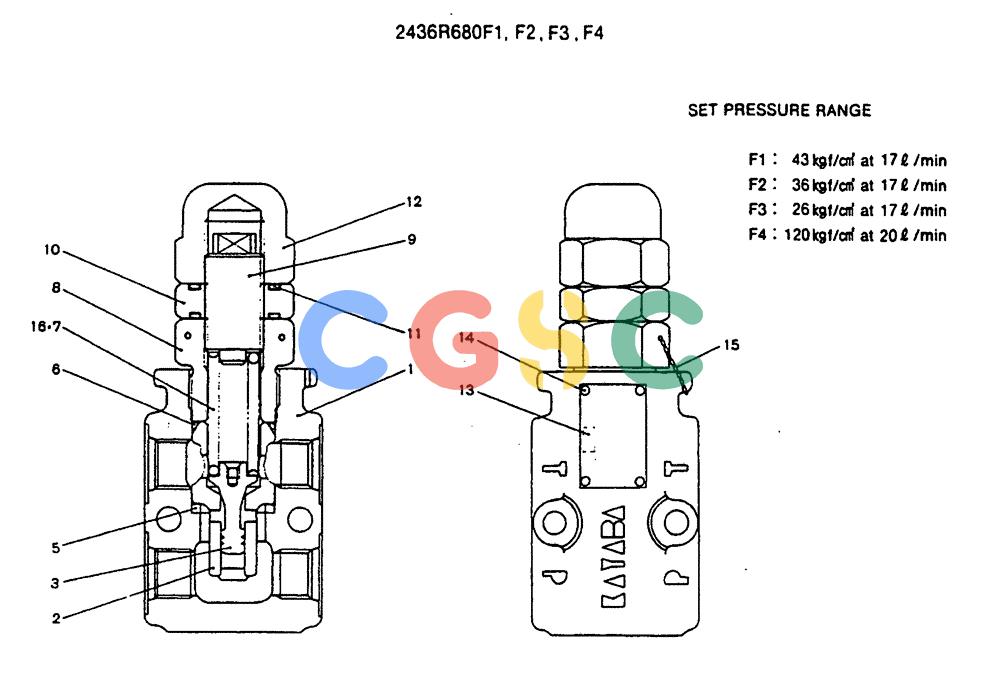

神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (16-001) - VALVE ASSY, RELIEF P/N 2436R680F1~F4 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
997 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R680F1 | [1] | VALVE PRESSURE RELIE | KOBASSY CONSISTS OF THE FOLLOWING PARTS |
| . . | 2436R680F2 | [1] | VALVE PRESSURE RELIE | KOBASSY CONSISTS OF THE FOLLOWING PARTS |
| . . | 2436R680F3 | [1] | ASSY CONSISTS OF THE FOLLOWING PARTS | |
| . . | 2436R680F4 | [1] | ASSY CONSISTS OF THE FOLLOWING PARTS | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 2. | 2436R680S2 | [1] | HOUSING | |
| 3. | 2436R1117S3 | [1] | VALVE PRESSURE RELIE | KOB |
| 5. | B36P0048E5 | [1] | SEAT | KOB |
| 6. | B36P0048E6 | [1] | O-RING | KOB |
| 7. | B36P0048E7 | [1] | SPRING | KOBF1 TO F3 ONLY |
| 8. | B36P0048E8 | [1] | SET OF SCREWS | KOB |
| 9. | B36P0048E9 | [1] | SCREW | KOB |
| 10. | B36P0048E10 | [1] | NUT | |
| 11. | ZD11G02500 | [2] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOB |
| 12. | B36P0048E12 | [1] | CAP | KOB |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONNAME-PLATE |
| 14. | NSS | [4] | NOT SOLD SEPARAT | CONSCREW,DRIVE |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONLOCK,WIRE |
| 16. | 2436R680S16 | [1] | SPRING F4 ONLY | |
| . . | 2436R680R100 | [1] | SEAL PACKAGE | KOBCONSISTS OF ITEM 6 & 11 |
