神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (16-002) - VALVE ASSY, SHUTTLE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
610 次

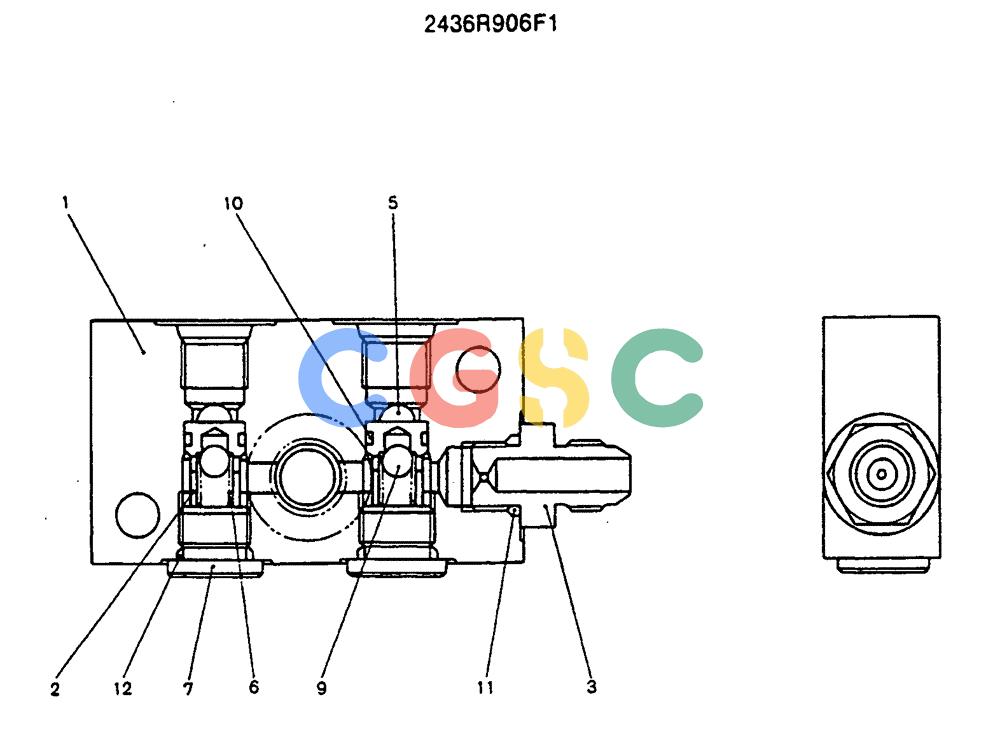

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R906F1 | [1] | VALVE | KOBASSY CONSISTS OF THE FOLLOWING PARTS |
| 1. | 2436R906S1 | [1] | BODY | |
| 2. | 2436R906S2 | [2] | SLEEVE | |
| 3. | 2436R906S3 | [1] | NIPPLE | |
| 5. | NSS | [2] | NOT SOLD SEPARAT | CONFILTER |
| 6. | 2436R906S6 | [2] | SPRING | SPRING |
| 7. | 2436R906S7 | [2] | PLUG | KOB |
| 9. | 2436R645S14 | [2] | BALL | BALL |
| 10. | ZD12P00900 | [2] | O-RING | KOBID 08.80 ± 0.17 x OD 12mm |
| 11. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 12. | 2436R906S12 | [2] | O-RING | KOB |
