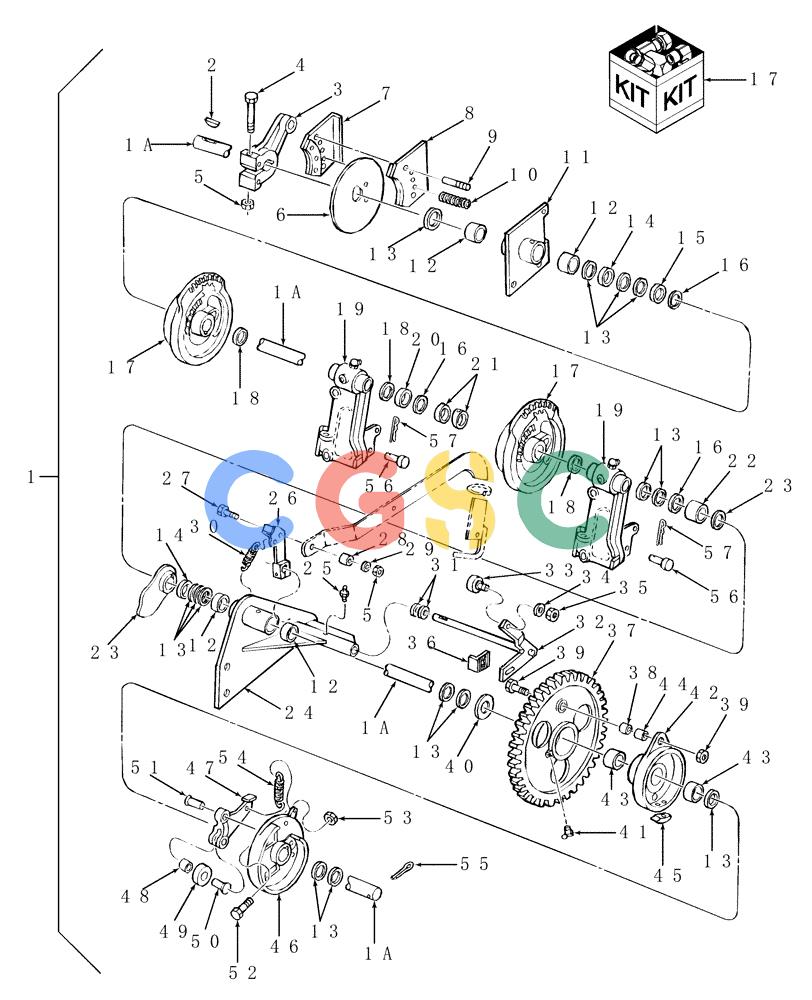

| 1. |
86635627
|
[1] |
SHAFT
|
NH
Twine Knotter
|
| 1A. |
86507986
|
[1] |
SHAFT
|
NH
Knotter
|
| 2. |
126-29
|
[1] |
WOODRUFF KEY,#C, 5/16" x 1 1/8"
|
CAS
Superseded by part number: 280414
|
| 3. |
86640969
|
[1] |
ARM
|
NH
Knotter
|
| . . |
614-8016
|
[2] |
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 16043224
|
| . . |
492-11031
|
[2] |
LOCK WASHER,5/16"
|
CAS
Superseded by part number: 83990583
|
| 4. |
413-648
|
[1] |
BOLT,Hex, 3/8" - 16 x 3", Gr 5
|
CAS
Superseded by part number: 280161
|
| 5. |
232-4146
|
[1] |
NUT,3/8"-16, GC
|
CAS
Superseded by part number: 88902
|
| 6. |
602702
|
[1] |
BRAKE DISC
|
NH
|
| 7. |
791788
|
[1] |
BRAKE SHOE
|
NH
|
| 8. |
791787
|
[1] |
BRAKE SHOE
|
NH
|
| 9. |
770210
|
[2] |
PIN,9.53mm OD x 60.2mm L
|
NH
Inch, 3/8"
|
| . . |
435-1828
|
[2] |
GROOVED PIN,1/4" x 1 3/4", Type A
|
NH
Superseded by part number: 84064
|
| . . |
425-146
|
[4] |
JAM NUT,3/8" - 16, Gr 5
|
CAS
Superseded by part number: 87016560
|
| 10. |
128383
|
[3] |
SPRING
|
NH
|
| . . |
413-440
|
[3] |
BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 87845
|
| . . |
280129
|
[3] |
NUT,1/4"-20
|
NH
|
| . . |
495-11028
|
[3] |
WASHER,1/4", SAE
|
CAS
Superseded by part number: 87361, 72187256
|
| 11. |
603438
|
[1] |
BEARING HOUSING,1.385" ID
|
NH
RH, Includes: (2) Ref. 12
|
| . . |
571382
|
[1] |
LUBE NIPPLE,1/4"-28 NPT x 1.62" lg
|
GI
|
| . . |
413-820
|
[2] |
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187215, 87670
|
| . . |
232-4148
|
[2] |
NUT,1/2"-13, GC
|
CAS
Superseded by part number: 86992215
|
| . . |
65319
|
[4] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| 12. |
222939
|
[4] |
BUSHING,35.13mm ID x 41.34mm OD x 19.05mm L
|
NH
|
| 13. |
58630
|
[1] |
WASHER,.0299" Thk
|
NH
|
| 14. |
86640867
|
[2] |
SPACER
|
NH
|
| . . |
84382
|
[2] |
SET SCREW,Hex Soc, 5/16"-18 x 5/8"
|
NH
|
| . . |
425-145
|
[2] |
JAM NUT,Jam, 5/16"-18, G5
|
CAS
Superseded by part number: 86637931
|
| 15. |
647634
|
[1] |
SPACER
|
NH
|
| 16. |
9800957
|
[1] |
WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk
|
NH
|
| . . |
126-47
|
[2] |
WOODRUFF KEY,#28, 5/16" x 2 1/8"
|
CAS
Superseded by part number: 87123
|
| 17. |
86577790
|
[2] |
SERVICE KIT
|
NH
Cam Gear, 1/4" Keyway, Includes: Bill Hook Pinion, Worm Pinion, Cam Gear, & Instructions
|
| . . |
87481
|
[2] |
KEY
|
NH
Square, 1/4" x 2", use w/ Ref. 1A
|
| 18. |
267571
|
[3] |
WASHER
|
NH
Superseded by part number: 84075368
|
| 19. |
NSS
|
[2] |
NOT SOLD SEPARAT
|
CON
FRAME Knotter , Refer to Fig. 41
|
| 20. |
620972
|
[1] |
SPACER
|
NH
|
| 21. |
86640859
|
[2] |
COLLAR
|
NH
|
| . . |
485-13112
|
[2] |
SET SCREW,Sq Hd, 5/16"-18 x 3/4"
|
CAS
Superseded by part number: 86512812
|
| . . |
570275
|
[3] |
WASHER
|
NH
|
| 22. |
86640805
|
[1] |
SPACER
|
NH
|
| 23. |
86640868
|
[1] |
CAM
|
NH
Twine Finger
|
| . . |
126-21
|
[1] |
WOODRUFF KEY,#A, 1/4" x 7/8"
|
CAS
Superseded by part number: E65556, 280934
|
| 24. |
848861
|
[1] |
SUPPORT
|
NH
LH, Includes: (2) Ref. 12
|
| . . |
219-87
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| 26. |
86641579
|
[1] |
LEVER
|
NH
Trip
|
| . . |
836-4065
|
[1] |
WOODRUFF KEY,M4 x 6.5 x 15.72
|
CAS
Superseded by part number: 10205820
|
| . . |
413-532
|
[1] |
BOLT,Hex, 5/16" - 18 x 2", Gr 5
|
CAS
Superseded by part number: 9636711
|
| . . |
425-105
|
[1] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 27. |
413-616
|
[1] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 28. |
86641586
|
[1] |
SPACER,10.5mm ID x 14.3mm OD x 8mm L
|
NH
|
| 30. |
86640793
|
[1] |
SPRING
|
NH
|
| 31. |
27697
|
[2] |
WASHER,16.66mm ID x 27mm OD x 1.52mm Thk
|
NH
Superseded by part number: 87642936
|
| 32. |
86641585
|
[1] |
KNOTTER,198mm L
|
NH
Trip
|
| 33. |
36800
|
[1] |
ROLLER BEARING
|
NH
Cam
|
| 34. |
285072
|
[1] |
WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk
|
NH
(3/8")
|
| 35. |
425-116
|
[1] |
NUT,3/8" - 24, Gr 5
|
CAS
Superseded by part number: 86509310, 50066
|
| 36. |
86640843
|
[1] |
STOP
|
NH
|
| . . |
413-516
|
[1] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5
|
CAS
Superseded by part number: 9635884, 72187198
|
| . . |
280736
|
[1] |
NUT,5/16"-18, GC
|
NH
|
| 37. |
86640965
|
[1] |
GEAR
|
NH
39T Includes: Ref. 38
|
| 38. |
58148
|
[1] |
SLEEVE
|
NH
Shear Bolt Superseded by part number: 87010851
|
| 39. |
86578266
|
[1] |
SHEAR BOLT,12-24 x 1 1/2"
|
NH
#12-24 x 1-1/2"
|
| 40. |
33004
|
[1] |
WASHER
|
NH
|
| 41. |
219-90
|
[1] |
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
|
CAS
Superseded by part number: 87569
|
| 42. |
86641005
|
[1] |
HUB
|
NH
Clutch, Includes: Ref. 43 & 44 Superseded by part number: 87678480
|
| . . |
84443
|
[1] |
SQUARE BOLT,3/8" - 16 x 3/4", Gr 2
|
NH
Square Hd., 3/8" x 3/4"
|
| . . |
492-11038
|
[1] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| . . |
425-106
|
[1] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 44. |
58147
|
[1] |
SHEAR BOLT BUSHING,5.9mm ID x 17.36mm OD x 12mm L
|
NH
Shear Bolt
|
| 45. |
86502134
|
[1] |
LATCH
|
NH
|
| . . |
414-612
|
[1] |
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5
|
CAS
Superseded by part number: 280266
|
| 46. |
86641488
|
[1] |
CLUTCH MECHANISM
|
NH
Knotter, Includes: Ref. 47 - 51
|
| 47. |
86641708
|
[1] |
PAWL
|
NH
Knotter, Includes: 48 - 50
|
| 48. |
86636722
|
[1] |
SPACER,12.62mm ID x 19.05mm OD x 15.75mm L
|
NH
5/8" Long
|
| 48. |
86977258
|
[1] |
SPACER
|
NH
1/2" Long
|
| 49. |
139881
|
[1] |
ROLLER
|
PA
|
| 50. |
617446
|
[1] |
RIVET,Csk, 1/2" x 1 3/8"
|
NH
|
| 51. |
617445
|
[1] |
RIVET,Csk, 1/2" x 1 23/32"
|
NH
|
| 52. |
413-840
|
[1] |
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 87972
|
| 54. |
18
|
[1] |
SPRING
|
NH
Safety Hook
|
| 55. |
32-1232
|
[1] |
COTTER PIN,3/16" x 2"
|
CAS
Superseded by part number: 87400
|
| 56. |
710230
|
[2] |
RIVET,Button, 9.53mm OD x 25.4mm L
|
NH
Drilled, 3/8" x 1"
|
| 57. |
216698
|
[2] |
COTTER PIN,0.125" OD x 1.75" L
|
NH
|
