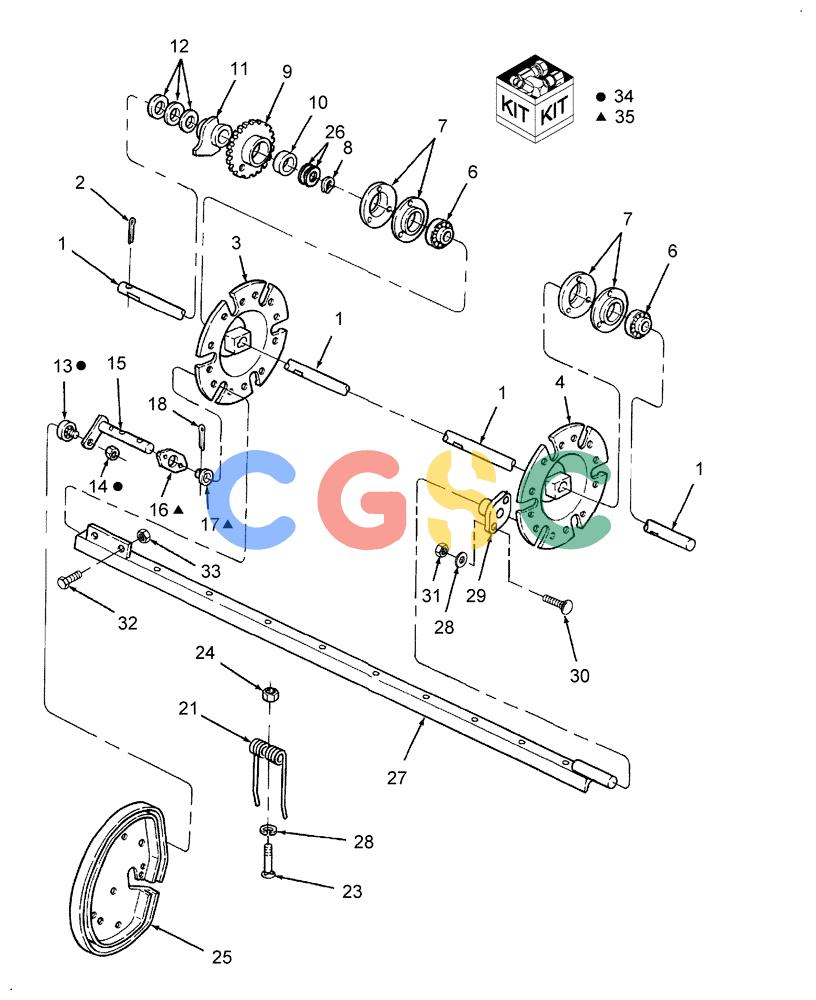

| 1. |
9801511
|
[1] |
DRIVEN SHAFT
|
NH
Driven Reel, SBX520, SBX530
|
| 1. |
9801468
|
[1] |
CONTROL SHAFT
|
NH
Reel, SBX540
|
| 2. |
432-1228
|
[1] |
COTTER PIN,3/16" x 1 3/4"
|
CAS
Superseded by part number: 87399
|
| 3. |
86641553
|
[1] |
DISC
|
NH
Finger, SBX520, Square, 4 Slots, w/ Tabs Superseded by part number: 87010610, 87010612
|
| 3. |
87010612
|
[1] |
DISC
|
PA
Finger, SBX520, Square, 4 Slots
|
| 3. |
86642122
|
[1] |
DISC
|
NH
Finger, SBX530, Round, 5 Slots
|
| 3. |
86977216
|
[1] |
DISC
|
NH
Finger, SBX540, Round, 6 Slots
|
| . . |
126-32
|
[1] |
WOODRUFF KEY,#21, 1/4" x 1 1/4"
|
CAS
SBX530, SBX540 Superseded by part number: 84361
|
| . . |
413-640
|
[1] |
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 87936
|
| . . |
232-4146
|
[1] |
NUT,3/8"-16, GC
|
CAS
Superseded by part number: 88902
|
| 4. |
86641551
|
[1] |
DISC
|
NH
Finger, SBX520, Square, 4 Slots Superseded by part number: 87010612, 87010610
|
| 4. |
87010610
|
[1] |
DISC
|
PA
Finger, SBX520, Square, 4 Slots
|
| 4. |
86642120
|
[1] |
DISC
|
NH
Finger, SBX530
|
| 4. |
86977215
|
[1] |
DISC
|
NH
Finger, SBX540
|
| . . |
413-636
|
[2] |
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
|
CAS
Superseded by part number: 88546, 72187212
|
| 6. |
455959R92
|
[2] |
BEARING ASSY,28.57mm ID x 62mm OD x 18mm W
|
CAS
Superseded by part number: 47577195
|
| . . |
557115R11
|
[2] |
COLLAR
|
IH
Superseded by part number: 45876
|
| 7. |
662649R1
|
[4] |
RETAINER
|
IH
Flange, Bearing Superseded by part number: 84320112
|
| . . |
140045
|
[9] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| . . |
614-10030
|
[9] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 43140
|
| 8. |
800-1150
|
[1] |
SNAP RING,M50, Ext
|
CAS
Superseded by part number: 8603209
|
| 9. |
86641546
|
[1] |
DRIVING SPROCKET
|
NH
33T, Includes: Ref. 10
|
| 10. |
83963214
|
[1] |
NYLON BEARING,50.12mm ID x 56mm OD x 27.75mm L
|
NH
|
| 11. |
86641547
|
[1] |
HUB
|
NH
|
| 12. |
140108
|
[4] |
WASHER,31mm ID x 37mm OD x 1mm Thk
|
NH
Shim, M1
|
| 13. |
40714
|
[4] |
CAM FOLLOWER,31.8 mm OD x 15.9 mm
|
NH
Cam Roller, (4) SBX520, (6) SBX530 & SBX540
|
| 14. |
232-4646
|
[4] |
LOCK NUT,3/8"-24, GC
|
CAS
(4) SBX520, (6) SBX530 & SBX540 Superseded by part number: 80855
|
| 15. |
86641591
|
[5] |
SHAFT,26.99mm OD x 155mm L
|
NH
Use w/ Ref. 27
|
| 16. |
54695
|
[1] |
BEARING HOUSING
|
NH
RH Side of Pickup
|
| . . |
433-612
|
[1] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| . . |
425-106
|
[1] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 17. |
54770
|
[1] |
BALL BEARING,27.33 mm ID x 47.092 mm OD x 25.4 mm
|
NH
Superseded by part number: 84330047
|
| 18. |
136521
|
[12] |
COTTER PIN,5.7mm OD x 44.45mm L
|
NH
Hardened, 1/4" x 1-3/4", SBX520
|
| 21. |
86641710
|
[44] |
FINGER
|
NH
Pickup, SBX520 Superseded by part number: 84474190, 84474190, 84481760
|
| . . |
413-516
|
[1] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5
|
CAS
Superseded by part number: 9635884, 72187198
|
| . . |
252687
|
[1] |
WASHER,0.34" ID x 0.75" OD x 0.09" Thk
|
NH
|
| 24. |
231-4145
|
[44] |
NUT,5/16"-18, GB
|
CAS
SBX520 Superseded by part number: 280736
|
| 25. |
86640846
|
[1] |
CAM
|
NH
|
| 26. |
67517
|
[1] |
WASHER
|
NH
Superseded by part number: 87016189
|
| 27. |
86641592
|
[4] |
ANGLE BAR
|
NH
SBX520
|
| 27. |
86516592
|
[6] |
ANGLE BAR
|
NH
SBX540
|
| 29. |
638025
|
[4] |
FLANGE
|
NH
LH, SBX520
|
| 30. |
88682
|
[1] |
CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5
|
NH
|
| 32. |
413-528
|
[2] |
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 9707515, 72187200
|
| 33. |
280736
|
[2] |
NUT,5/16"-18, GC
|
NH
|
| 34. |
87012134
|
[1] |
BEARING ASSY
|
PA
Pickup Cam Bearing, Incl: (2) Ref. 13 & 14
|
| 35. |
87012135
|
[1] |
BEARING ASSY
|
PA
Pickup Bearing & Carrier, Incl: (2) Ref. 16 & 17 and Hardware
|
