神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (16-009) - JOINT ASSY, SWIVEL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
593 次

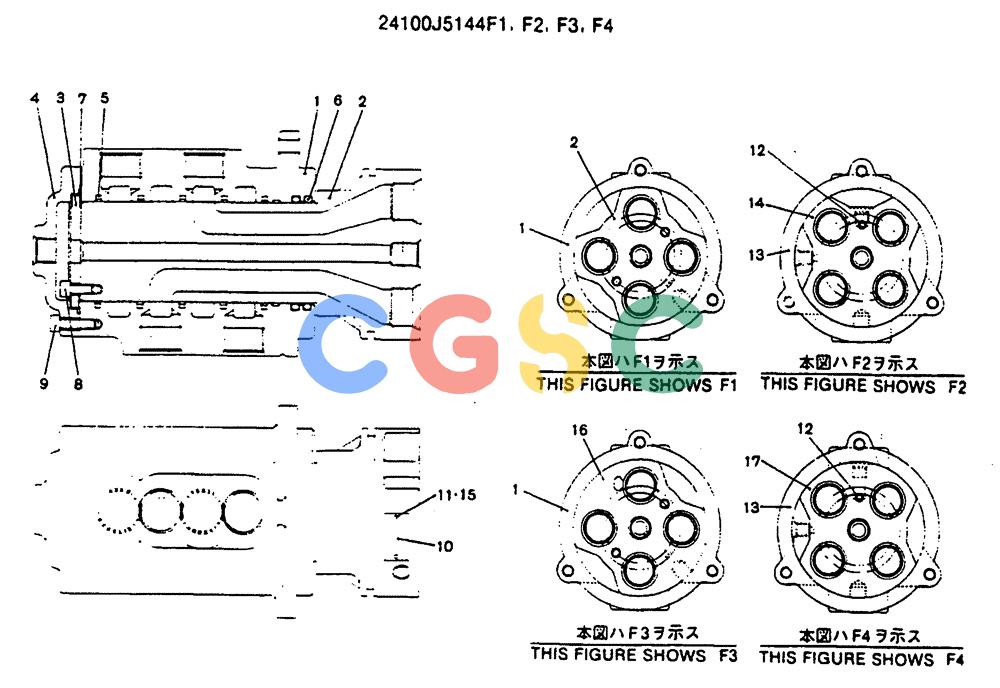

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J5144F1 | [1] | FLEXIBLE JOINT | KOBASSY CONSISTS OF THE FOLLOWING PARTS Superseded by part number: 24100J5144F3 |
| . . | 24100J5144F2 | [1] | ASSY CONSISTS OF THE FOLLOWING PARTS | |
| . . | 24100J5144F3 | [1] | FLEXIBLE JOINT | KOBASSY CONSISTS OF THE FOLLOWING PARTS |
| . . | 24100J5144F4 | [1] | FLEXIBLE JOINT | KOBASSY CONSISTS OF THE FOLLOWING PARTS Superseded by part number: 24100U1524F1 |
| 1. | 2410J259 | [1] | BODY F1 & F3 ONLY | |
| 2. | 2410J260 | [1] | STEP | KOBF1 ONLY |
| 3. | 2414T1991 | [1] | THRUST PLATE | KOB Superseded by part number: YN55V01115P1 |
| 4. | 2414P2980 | [1] | COVER | KOB |
| 5. | 2445Z736 | [5] | GASKET | KOB |
| 6. | 2445R152D1 | [2] | O-RING,5.7mm Thk x 79.6mm ID, 70 Duro | KOBID 79.6 ± 0.40 x OD 91mm |
| 7. | ZD11G09500 | [1] | O-RING,94.40mm ID x 100.60mm OD x 3.10mm | KOBID 94.40 ± 0.81 x OD 100mm |
| 8. | ZS23C08020 | [2] | SCREW,Hex Socket Head, M8 x 20mm | KOBM08x1.25x20mm |
| 9. | ZS23C08030 | [4] | SCREW,Hex Socket Head, M8 x 30mm | KOBM08x1.25x30mm Superseded by part number: ZS28C08030 |
| 10. | 2432T2293 | [1] | TYPE PLATE | KOBNAME-PLATE Superseded by part number: YN22T00194P1 |
| 11. | 2420Z1036D2 | [2] | CLEVIS PIN | KOB2.2x6.4mm, F1 ONLY |
| 12. | ZE82T02000 | [1] | PLUG | KOBPipe, 1.25" PT, F2 & F4 Only |
| 13. | 2410J264 | [1] | BODY F2 & F4 ONLY | BODY F2 & F4 ONLY |
| 14. | 2410J265 | [1] | STEM | KOBSTEM F2 ONLY |
| 15. | 2420Z1036D3 | [2] | CLEVIS | KOB2.2x4.6mm, F2 TO F4 ONLY |
| 16. | 2410J267 | [1] | STEM F3 ONLY | |
| 17. | 2410J268 | [1] | STEM | KOBF4 ONLY |
