神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (14-001) - PUMP ASSY, GEAR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
290 次

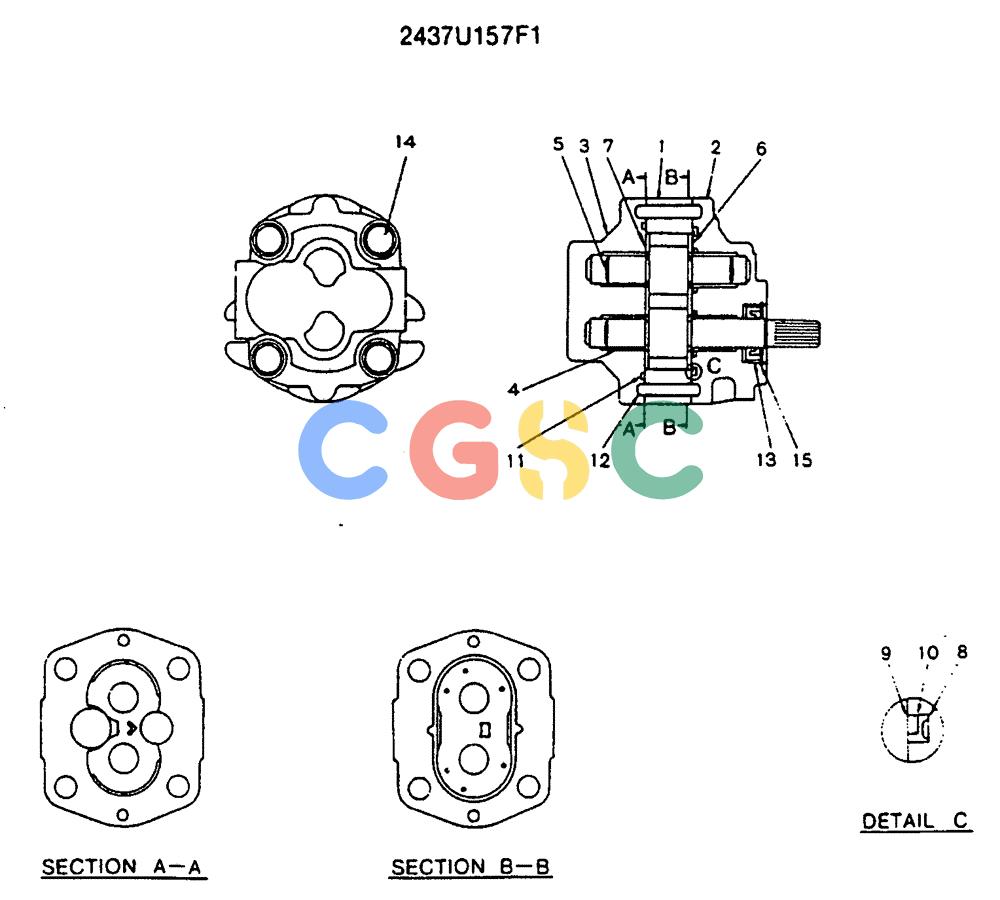

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2437U157F1 | [1] | HYDRAULIC PUMP | KOBASSY, GEAR CONSISTS OF THE FOLLOWING PARTS |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONPLATE, GEAR |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONFLANGE, MTG |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONCOVER |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR, DRIVE |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR, DRIVEN |
| 6. | 2437U157S6 | [1] | LARGE PLATE | KOBPLATE, LARGE Superseded by part number: 2441U291S6 |
| 7. | 2437U157S7 | [1] | SIDE PLATE | KOB Superseded by part number: 2441U291S7 |
| 8. | 2437U157S8 | [1] | SEAL | KOBBALANCE |
| 9. | 2437U157S9 | [1] | GASKET | KOB |
| 10. | 2437U157S10 | [1] | GASKET | KOB |
| 11. | 2437U157S11 | [1] | O-RING | KOB |
| 12. | 2437U157S12 | [2] | DOWEL | KOB |
| 13. | 2437U157S13 | [1] | OIL SEAL | KOB |
| 14. | 2437U157S14 | [4] | SCREW | KOB |
| 15. | 2441R6S15 | [1] | LOCKING RING | KOB Superseded by part number: ZR26X03200 |
