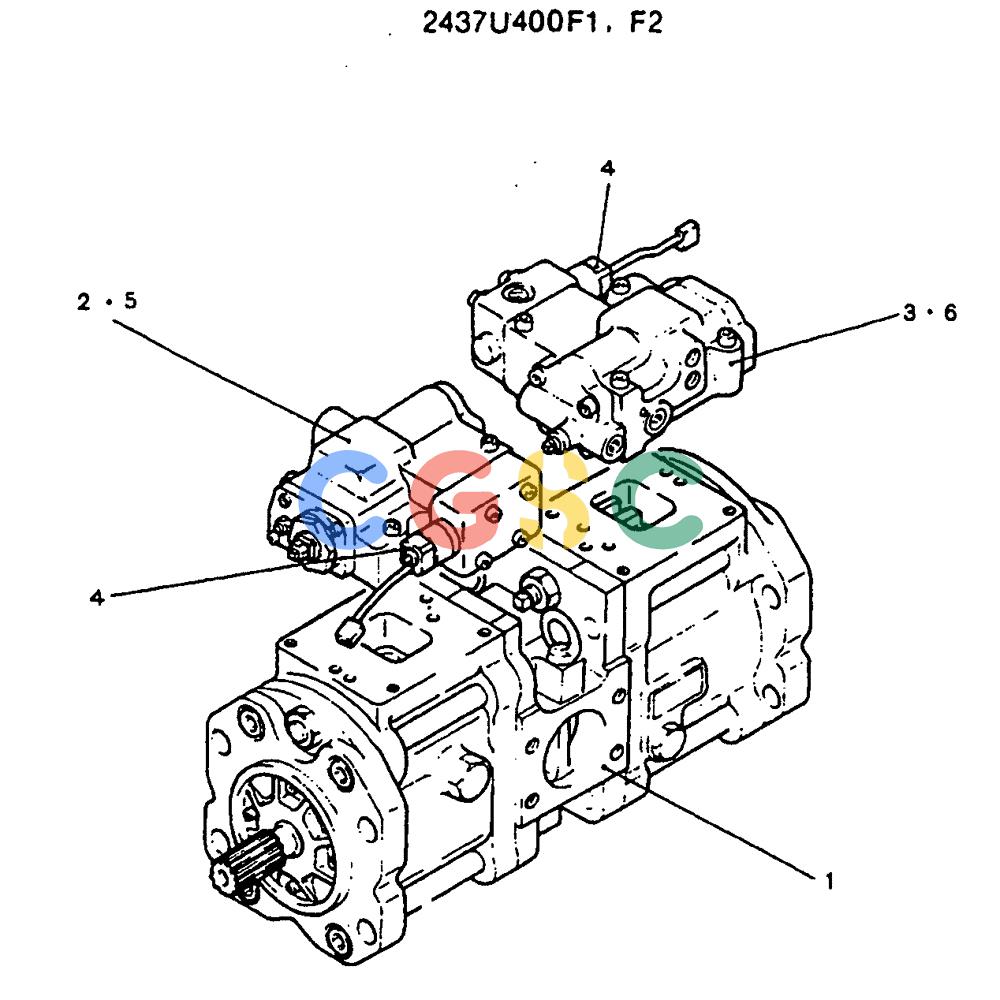

神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (14-002) - PUMP ASSY P/N 2437U400F1.F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
404 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2437U400F1 | [1] | PUMP | KOBCONSISTS OF THE FOLLOWING PARTS |
| . . | 2437U400F2 | [1] | PUMP | KOBCONSISTS OF THE FOLLOWING PARTS |
| 1. | 2437U412F1 | [1] | PUMP | KOBPUMP ASSY Superseded by part number: 2437U400F1 |
| 2. | 2436U1472F1 | [1] | REGULATOR | KOB(F) |
| 3. | 2436U1471F1 | [1] | REGULATOR | KOB(R) |
| 4. | 2436R884F1 | [2] | VALVE | KOBASSY F1 ONLY Superseded by part number: 2436R884F3 |
| 5. | 2436U1472F3 | [1] | REGULATOR | KOBASSY (F) |
| 6. | 2436U1471F3 | [1] | REGULATOR ASSY (R) | REGULATOR ASSY (R) |
