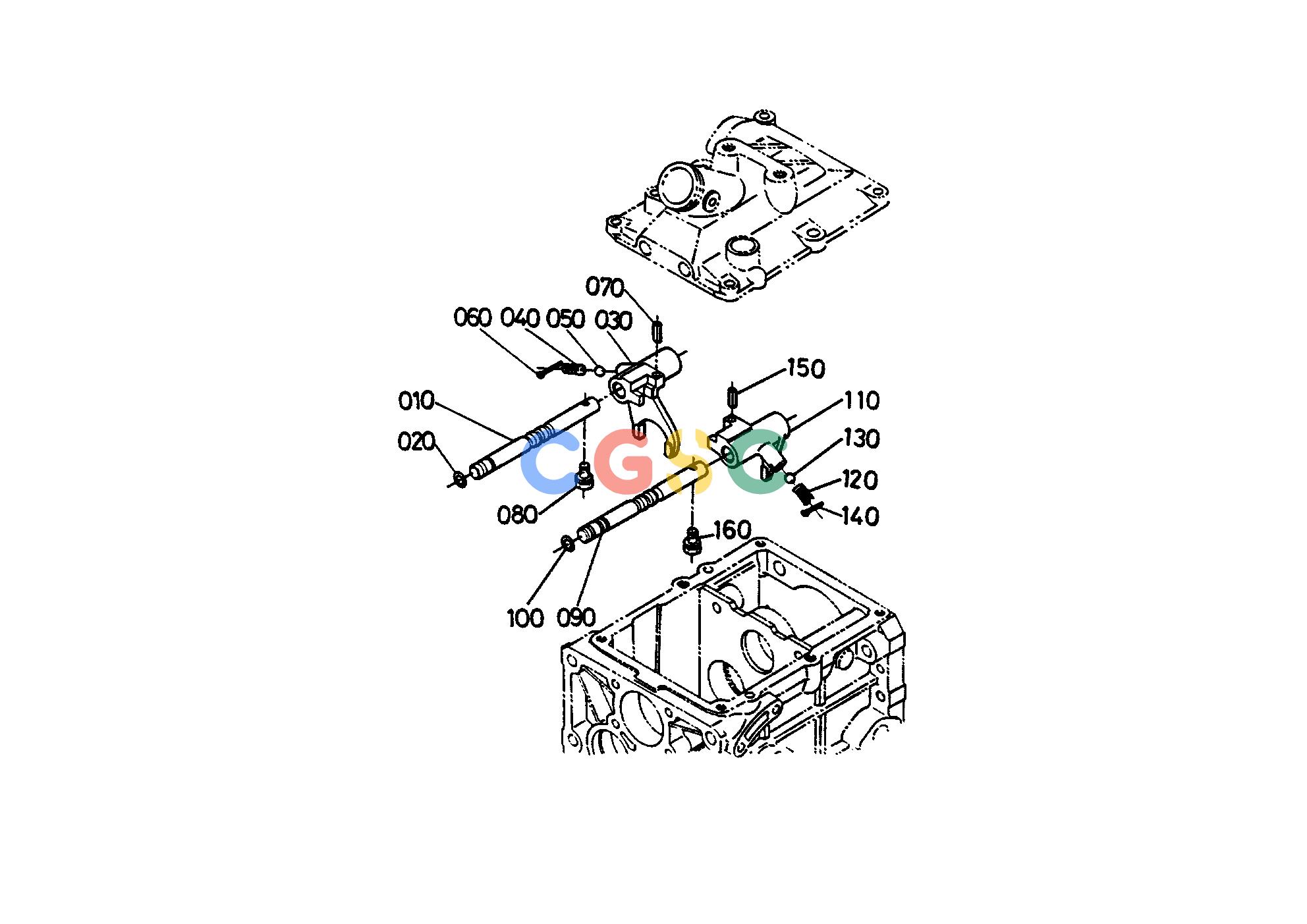

久保田零件查询T02200 SPEED CHANGE FORK SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
150 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6740118110
|
[1] |
SHAFT FORK
|
0.3520(lbs); 0.160
|
| 020. |
0481106100
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 030. |
6731118120
|
[1] |
FORK BACK SHIFT
|
0.5500(lbs); 0.250
|
| 040. |
6206118260
|
[1] |
SPRING STOPPER
|
0.0044(lbs); 0.002
|
| 050. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 060. |
0551150322
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 070. |
0541100520
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 080. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 090. |
6740118120
|
[1] |
SHAFT FORK
|
0.3520(lbs); 0.160
|
| 100. |
0481106100
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 110. |
6731118140
|
[1] |
FORK SHIFT
|
0.5940(lbs); 0.270
|
| 120. |
6206118260
|
[1] |
SPRING STOPPER
|
0.0044(lbs); 0.002
|
| 130. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 140. |
0551150322
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 150. |
0541100520
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 160. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
