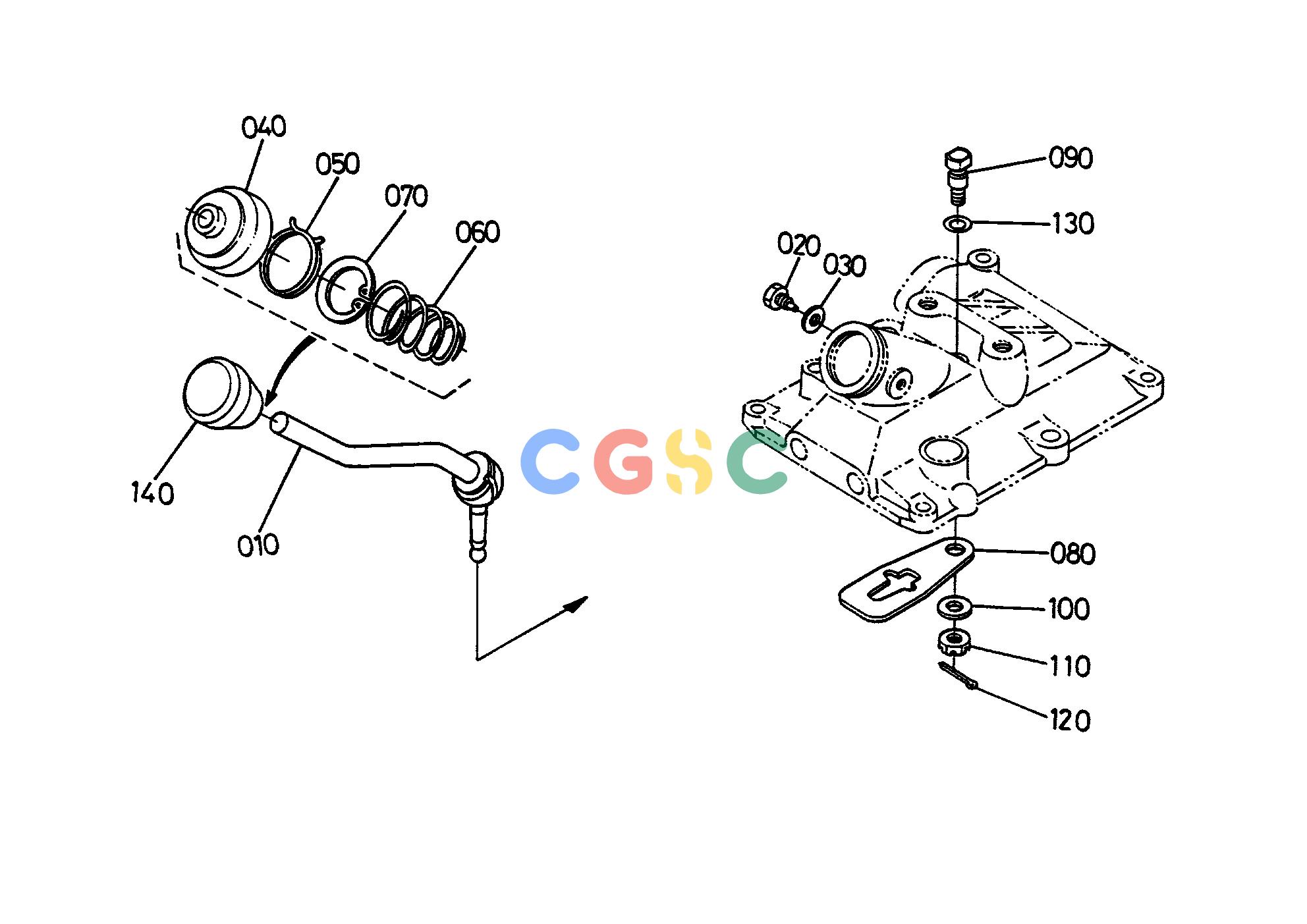

久保田零件查询T02300 MAIN SPEED CHANGE SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
146 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6740118310
|
[1] |
LEVER MAIN S-CHANGE
|
0.7700(lbs); 0.350
|
| 020. |
6651518240
|
[2] |
PIN ROD GUIDE
|
0.0220(lbs); 0.010
|
| 030. |
0471400080
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 040. |
6659118420
|
[1] |
COVER MAIN S-CHANGE
|
0.0308(lbs); 0.014
|
| 050. |
6711118280
|
[1] |
BAND
|
0.0330(lbs); 0.015
|
| 060. |
6659118430
|
[1] |
SPRING
|
0.0528(lbs); 0.024
|
| 070. |
0461100380
|
[1] |
CIR-CLIP INTERNAL
|
0.0088(lbs); 0.004
|
| 080. |
6659118443
|
[1] |
INTERLOCKER
|
0.1320(lbs); 0.060
|
| 090. |
6659118450
|
[1] |
BOLT INTERLOCKER SET
|
0.0528(lbs); 0.024
|
| 100. |
0401150100
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 110. |
0237250100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 120. |
0551150218
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 130. |
0481110100
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 140. |
6671142310
|
[1] |
GRIP LEVER
|
0.0726(lbs); 0.033
|
