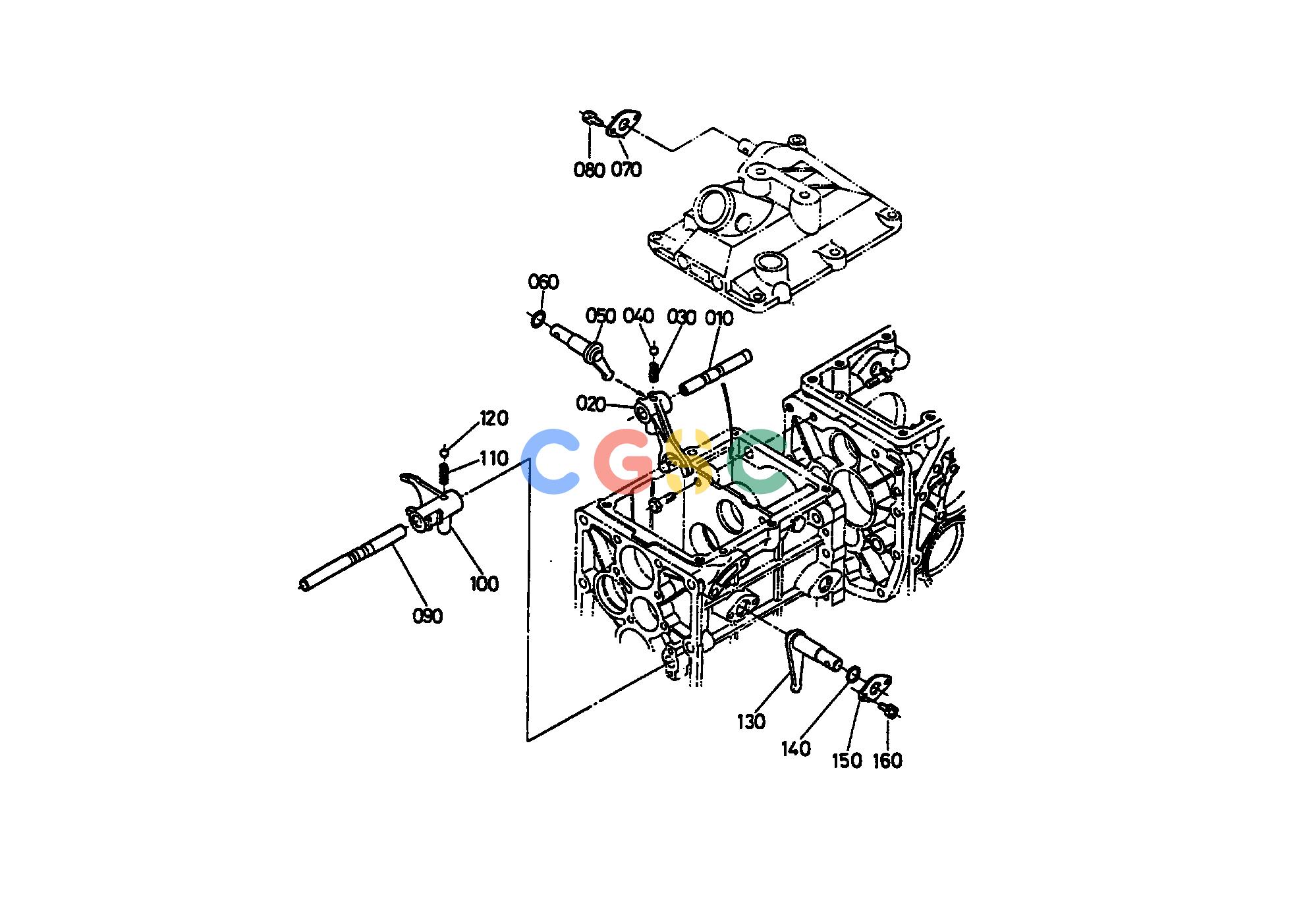

久保田零件查询T02400 AUX. SPEED CHANGE SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
194 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6740118410
|
[1] |
SHAFT FORK
|
0.2068(lbs); 0.094
|
| 020. |
6661118420
|
[1] |
FORK SHIFT
|
0.0000(lbs); 0.000
|
| 030. |
6206118260
|
[1] |
SPRING STOPPER
|
0.0044(lbs); 0.002
|
| 040. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 050. |
6659118170
|
[1] |
ARM S-CHANGE
|
0.2332(lbs); 0.106
|
| 060. |
0481100160
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 070. |
6659118180
|
[1] |
RETAINER FORK ROD
|
0.0264(lbs); 0.012
|
| 080. |
0120250614
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 090. |
6740118610
|
[1] |
SHAFT
|
0.3960(lbs); 0.180
|
| 100. |
6731118620
|
[1] |
FORK SHIFT
|
0.3960(lbs); 0.180
|
| 110. |
6206118260
|
[1] |
SPRING STOPPER
|
0.0044(lbs); 0.002
|
| 120. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 130. |
6659118220
|
[1] |
ARM
|
0.2640(lbs); 0.120
|
| 140. |
0481100160
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 150. |
6659118180
|
[1] |
RETAINER FORK ROD
|
0.0264(lbs); 0.012
|
| 160. |
0120250614
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
