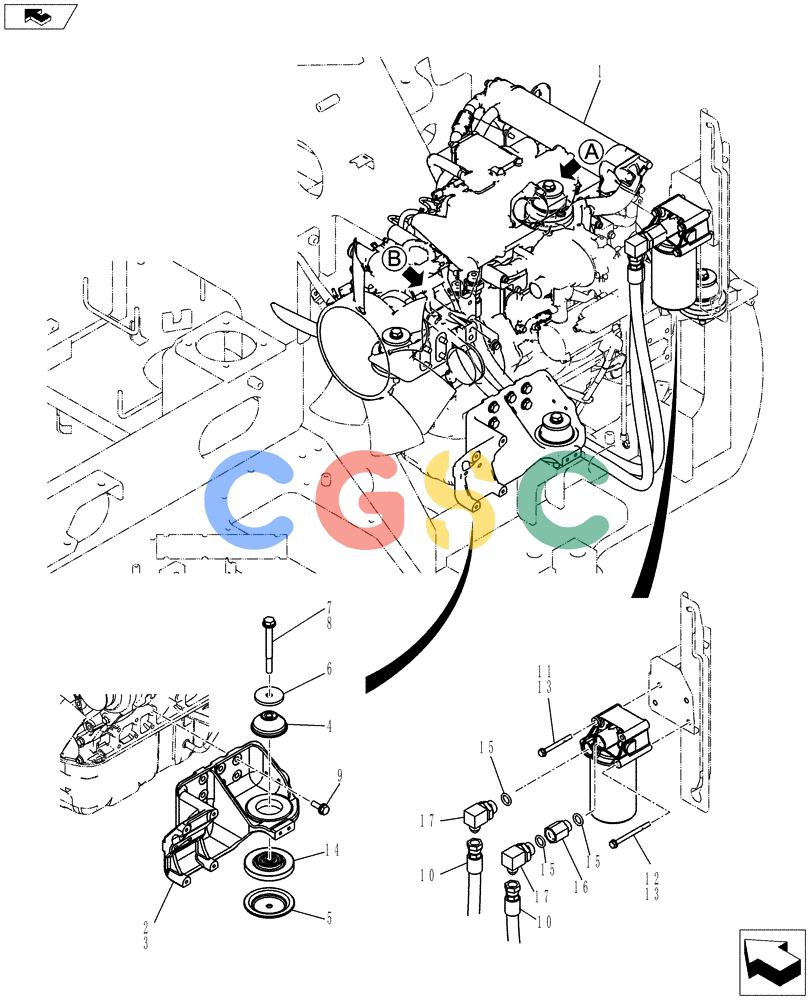

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-005[01]) - ENGINE INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
473 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT02P00011F1 | [1] | | |
| 1. | YT02P00010F1 | [1] | ENGINE | KOBAssy., Serial Range: LF06-04501-LF06-04544 |
| 1. | YT02P00010F3 | [1] | ENGINE | KOBAssy., Start Serial: LF06-04545 |
| 2. | YT02P00012F1 | [1] | ENGINE | KOBInstal |
| 3. | YT02P01004P1 | [1] | BRACKET | KOB |
| 4. | YT02P01006P1 | [4] | RUBBER MOUNTING | KOB |
| 5. | YT02P01019P1 | [4] | PLATE | KOB |
| 6. | PW01P01022P1 | [4] | WASHER | KOB |
| 7. | HS18C12120G1 | [4] | CAPTIVE WASHER SCREW | KOB |
| 8. | ZW16H12000 | [6] | WASHER | KOB |
| 9. | ZM73C10030 | [10] | BOLT,M10x30mm - Course Thread | KOBSems |
| 10. | YT02P01015P1 | [2] | HOSE ASSY. | KOB |
| 11. | ZS18C08080 | [2] | SCREW,Hex, M8 x 80mm | KOBCap |
| 12. | ZS18C08100 | [2] | SCREW,Hex, M8 x 100mm | KOBCap |
| 13. | ZW16P08000 | [4] | WASHER | KOB |
| 14. | YT02P01018P1 | [4] | RUBBER MOUNTING | KOB |
| 15. | HD16P02400G2 | [4] | O-RING | KOB, Serial Range: LF06-04501-LF06-04502 |
| 16. | YA03H01018P1 | [1] | ELEC CONNECTOR | KOB |
| 17. | ZH32X08012 | [2] | 90 ELBOW,Male, 30° Fl, PF 1/2" x PF 3/4", O-Ring | KOB90 |
