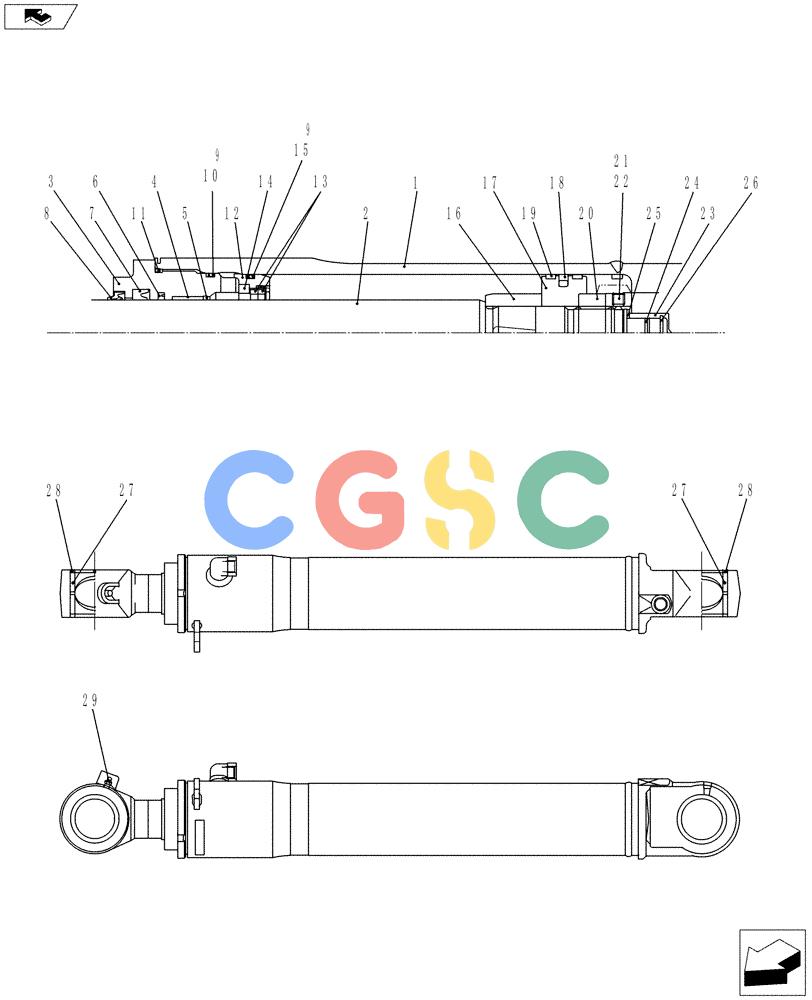

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-004[03]) - CYLINDER INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
125 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTube Assy. |
| 3. | LF01V00006S003 | [1] | CYLINDER HEAD | KOB |
| 4. | EN01V00009S004 | [1] | BUSHING | KOB |
| 5. | 2438U716S6 | [1] | SNAP RING | KOB |
| 6. | LF01V00006S006 | [1] | RING | KOBBack Up |
| 7. | 2438U716S15 | [1] | RING | KOBU |
| 8. | YT01V00002S009 | [1] | RING | KOB |
| 9. | ZD12G10000 | [2] | O-RING,99.40mm ID x 105.60mm OD x 3.10mm | KOB |
| 10. | PH01V00022S008 | [1] | RING | KOBBack Up |
| 11. | ZD11G10500 | [1] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOB |
| 12. | LF01V00006S012 | [1] | HOLDER | KOB |
| 13. | YT01V00017S013 | [2] | SEAL | KOB |
| 14. | LF01V00007S014 | [1] | COLLAR CLAMP | KOB |
| 15. | PZ01V00003S008 | [2] | RING | KOBBack Up |
| 16. | LF01V00007S016 | [1] | BEARING ASSY | KOB |
| 17. | YR01V00018S013 | [1] | PISTON | KOB |
| 18. | 2438U676S21 | [1] | RING | KOBSeal |
| 19. | PH01V00022S012 | [2] | RING | KOB Superseded by part number: 2438U676S23 |
| 20. | YM01V00009S020 | [1] | NUT | KOB |
| 21. | 2438U999S21 | [1] | SET SCREW | KOB |
| 22. | 2436U330S16 | [1] | BALL | KOB |
| 23. | LF01V00007S023 | [1] | BEARING ASSY | KOB |
| 24. | LF01V00002S024 | [1] | SEAL | KOB |
| 25. | YR01V00006S026 | [1] | RING | KOBRetaining |
| 26. | YR01V00006S027 | [2] | STOP | KOB |
| 27. | LF01V00002S027 | [2] | BUSHING | KOB |
| 28. | LP01V00007S026 | [4] | RING | KOBWiper |
| 29. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB |
| . . | LF01V00007R100 | [1] | SEAL KIT | KOBConsists Of Item: 6(1), 7(1), 8(1), 10(1), 11(1), 9(2), 13(2), 15(2) |
| . . | YR01V00018R200 | [1] | REPAIR KIT | KOBConsists Of Item: 18(1), 19(2) |
| . . | LF01V00007R300 | [1] | SEAL KIT | KOBConsists Of Item: 6(1), 7(1), 8(1), 10(1), 11(1), 18(1), 9(2), 13(2), 15(2), 19(2) |
| . . | LF01V00007R400 | [1] | PIPE | KOBRepair Kit, Consists Of Item: 1(1), 27(1), 28(2) |
| . . | LF01V00007R500 | [1] | ROD | KOBRepair Kit, Consists Of Item: 2(1), 27(1), 28(2) |
