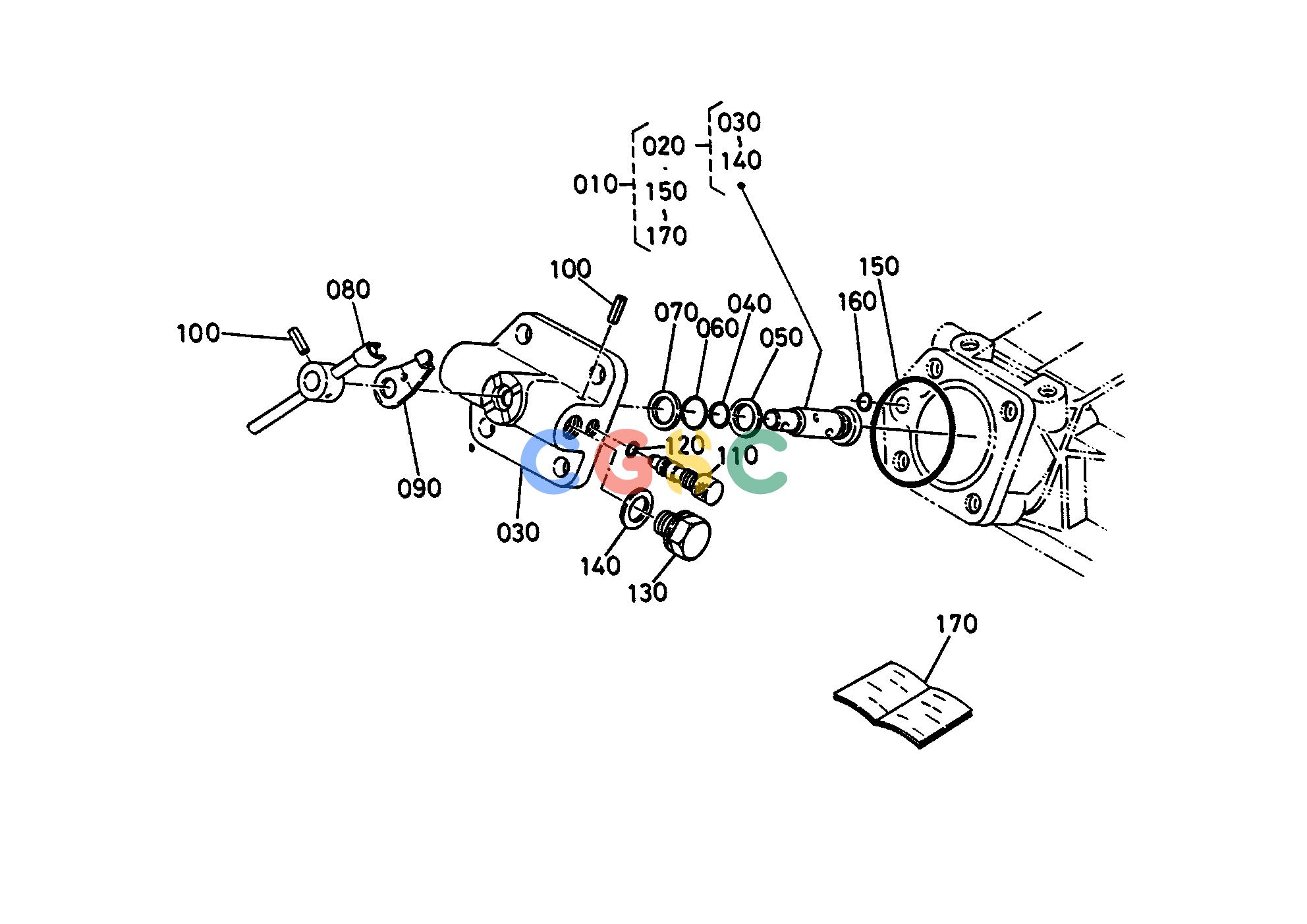

久保田零件查询T08400 HYDRAULIC OUTLET [OPTION] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
131 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6740183600
|
[1] |
KIT OUTLET HYD.REAR
|
3.2560(lbs); 1.480
|
| 020. |
6791136404
|
[1] |
ASSY OUTLET HYD.
|
3.3000(lbs); 1.500
|
| 030. |
6791136415
|
[1] |
CAP CYLINDER
|
2.6400(lbs); 1.200
|
| 040. |
0481100120
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 050. |
9631901430
|
[1] |
WASHER THRUST
|
0.0044(lbs); 0.002
|
| 060. |
0481100160
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 070. |
6791136430
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 080. |
6791136440
|
[1] |
ARM CHANGE
|
0.1540(lbs); 0.070
|
| 090. |
9631901440
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 100. |
0541100522
|
[2] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 110. |
6791136480
|
[1] |
POPPET LOCK
|
0.0660(lbs); 0.030
|
| 120. |
0481100070
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 130. |
0631125030
|
[1] |
PLUG
|
0.1122(lbs); 0.051
|
| 140. |
0471400300
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 150. |
0481050550
|
[1] |
RING
|
0.0044(lbs); 0.002
|
| 160. |
0481100080
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 160. |
0481005110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 170. |
6740183610
|
[1] |
MANUAL INSTRUCTION
|
0.0000(lbs); 0.000
|
