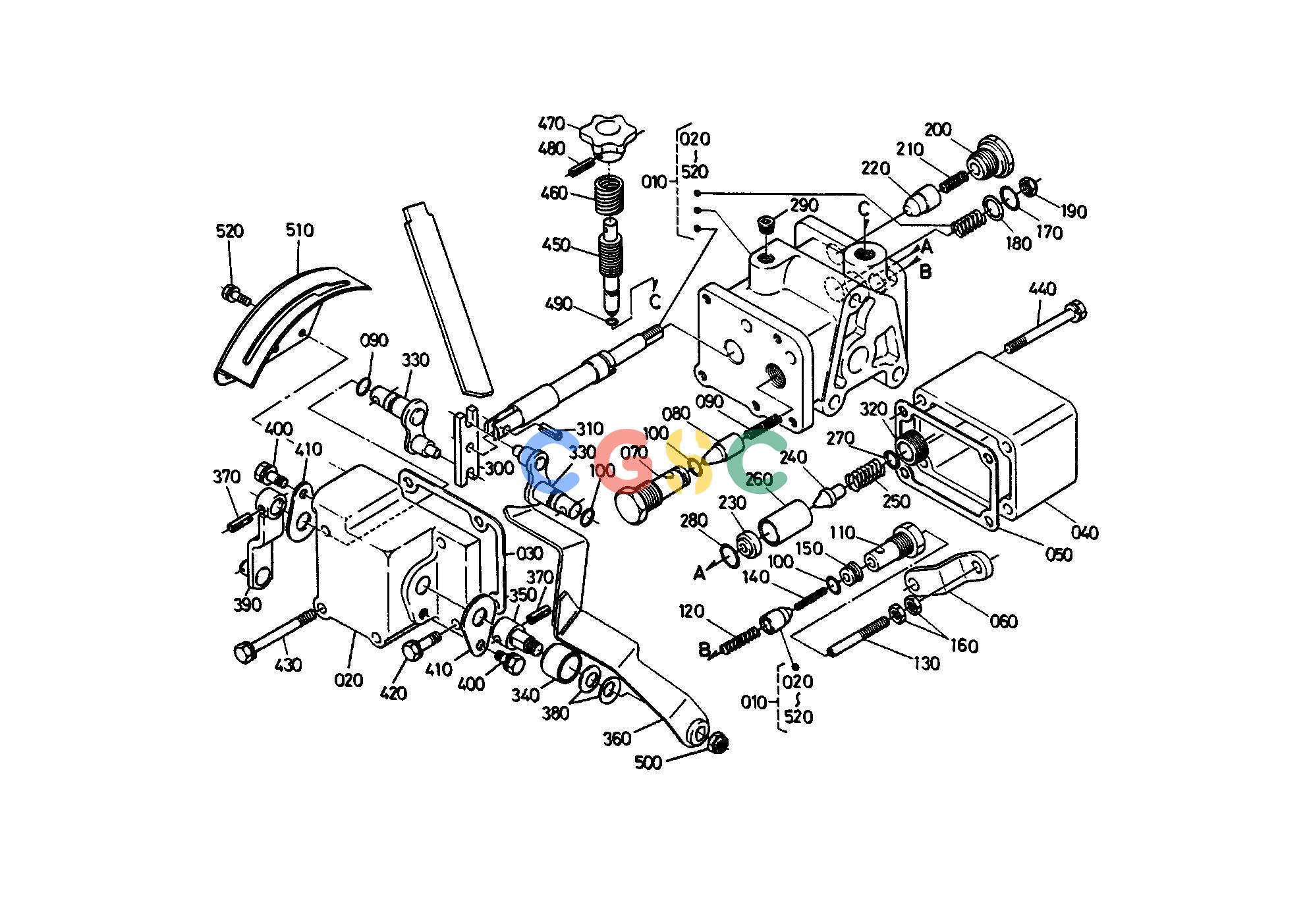

久保田零件查询T09000 CONTROL VALVE [SECTION PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
508 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6740136200
|
[1] |
ASSY VALVE CONTROL
|
11.7920(lbs); 5.360
|
| 020. |
6740103620
|
[1] |
COVER VALVE
|
2.1560(lbs); 0.980
|
| 030. |
6740103630
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 040. |
6740103640
|
[1] |
COVER RELIEF
|
0.4972(lbs); 0.226
|
| 050. |
6740103650
|
[1] |
GASKET RELIEF COVER
|
0.0000(lbs); 0.000
|
| 060. |
6740103670
|
[1] |
PLATE JOINT
|
0.0968(lbs); 0.044
|
| 070. |
6753138450
|
[1] |
PLUG
|
0.1100(lbs); 0.050
|
| 080. |
6753138430
|
[1] |
POPPET
|
0.0330(lbs); 0.015
|
| 090. |
6753138440
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 100. |
0481000090
|
[4] |
RING
|
0.0022(lbs); 0.001
|
| 110. |
6740103680
|
[1] |
PLUG
|
0.0660(lbs); 0.030
|
| 120. |
3135139230
|
[1] |
SPRING
|
0.0176(lbs); 0.008
|
| 130. |
6753138350
|
[1] |
RETAINER ROD
|
0.0220(lbs); 0.010
|
| 140. |
0541100328
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 150. |
3135139280
|
[1] |
VALVE SEAT CHECK
|
0.0220(lbs); 0.010
|
| 160. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 170. |
6740103690
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 180. |
6740103710
|
[1] |
HOLDER SPRING
|
0.0022(lbs); 0.001
|
| 190. |
6753138310
|
[1] |
U-NUT
|
0.0088(lbs); 0.004
|
| 200. |
3135139150
|
[1] |
POPPET
|
0.0440(lbs); 0.020
|
| 210. |
6753138470
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 220. |
3135139140
|
[1] |
PLUG
|
0.1100(lbs); 0.050
|
| 230. |
6711137320
|
[1] |
SEAT VALVE
|
0.0220(lbs); 0.010
|
| 240. |
6711137330
|
[1] |
POPPET
|
0.0176(lbs); 0.008
|
| 250. |
6711137370
|
[1] |
SPRING RELIEF
|
0.0220(lbs); 0.010
|
| 260. |
6711137340
|
[1] |
COLLAR
|
0.0462(lbs); 0.021
|
| 270. |
6711137530
|
[1] |
SHIM ADJUSTING
|
0.0022(lbs); 0.001
|
| 270. |
6711137580
|
[1] |
SHIM ADJUSTING
|
0.0022(lbs); 0.001
|
| 280. |
0481100120
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 290. |
6781038382
|
[2] |
PLUG
|
0.0066(lbs); 0.003
|
| 300. |
6740103720
|
[1] |
LEVER SPOOL DRIVE
|
0.0440(lbs); 0.020
|
| 310. |
0541100616
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 320. |
6711137350
|
[1] |
SCREW ADJUSTING
|
0.0440(lbs); 0.020
|
| 330. |
6740103730
|
[2] |
SHAFT CONTROL LEVER
|
0.1100(lbs); 0.050
|
| 340. |
6740103740
|
[1] |
COLLAR
|
0.0440(lbs); 0.020
|
| 350. |
6740103750
|
[1] |
SHAFT CONTROL ARM
|
0.0440(lbs); 0.020
|
| 360. |
6740103760
|
[1] |
LEVER CONTROL
|
0.0000(lbs); 0.000
|
| 360. |
6740103762
|
[1] |
LEVER CONTROL
|
0.7480(lbs); 0.340
|
| 370. |
0541100515
|
[2] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 380. |
6753138630
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 390. |
6740103770
|
[1] |
ARM FEED BACK
|
0.1100(lbs); 0.050
|
| 400. |
0120250610
|
[2] |
BOLT
|
0.0088(lbs); 0.004
|
| 410. |
6740138610
|
[2] |
STOPPER
|
0.0110(lbs); 0.005
|
| 420. |
0120250620
|
[2] |
BOLT
|
0.0154(lbs); 0.007
|
| 430. |
0120250655
|
[3] |
BOLT
|
0.0000(lbs); 0.000
|
| 440. |
0120250660
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 450. |
6740103780
|
[1] |
BOLT ADJUSTING
|
0.0880(lbs); 0.040
|
| 460. |
6740103790
|
[1] |
SPRING SET
|
0.0066(lbs); 0.003
|
| 470. |
3415037230
|
[1] |
GRIP
|
0.0880(lbs); 0.040
|
| 480. |
0541100418
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 490. |
0481100060
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 500. |
6740103810
|
[1] |
U-NUT
|
0.0044(lbs); 0.002
|
| 510. |
6740136250
|
[1] |
GUIDE LEVER
|
0.0000(lbs); 0.000
|
| 510. |
6740136253
|
[1] |
GUIDE LEVER
|
0.4400(lbs); 0.200
|
| 520. |
0112350816
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
