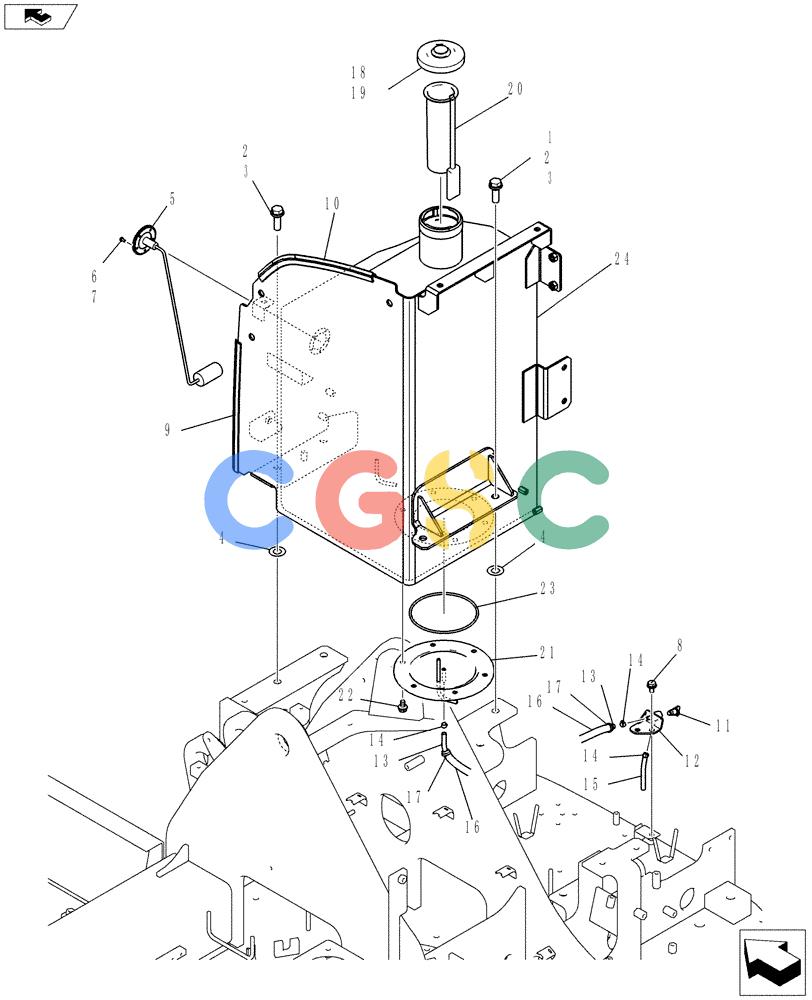

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-013[00]) - FUEL TANK INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
573 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT20P00054F1 | [1] | Fuel | |
| 1. | YT20P00058F1 | [1] | TANK | KOBInstal, Fuel |
| 2. | ZS18C16050 | [4] | SCREW,Hex, M16 x 50mm | KOBCap |
| 3. | ZW16H16000 | [4] | WASHER | KOB |
| 4. | LE33H01017D1 | [3] | SHIM | KOB(1.0) |
| 5. | YN52S00045F1 | [1] | SENSOR | SMLevel |
| 6. | ZS31C05012 | [5] | BOLT,Phillips Drive, Pan HD, M5 x 12mm | KOBMachine |
| 7. | ZW26X05000 | [5] | LOCK WASHER | KOBLock |
| 8. | ZM73C10020 | [1] | BOLT,M10x20mm - Course Thread | KOBSems |
| 9. | LS21C01093D4 | [1] | TRIM | KOB |
| 10. | LS21C01093D5 | [1] | TRIM | KOB |
| 11. | YN05P00010S007 | [1] | COCK, DRAIN | KOB |
| 12. | PM05P01046P1 | [1] | BOSS | KOB |
| 13. | PH21P01008D6 | [1] | FLEXIBLE HOSE | KOB |
| 14. | PH05P01088D6 | [3] | CLIP | KOB |
| 15. | PA21P01005D5 | [1] | FLEXIBLE HOSE | KOB |
| 16. | PU13E01002D1 | [1] | TUBE | KOB |
| 17. | PY01P01043D2 | [2] | CABLE TIE,4.60mm W x 202mm L | KOB Superseded by part number: YT50C01100P1 |
| 18. | YT20P00053F1 | [1] | Fuel | |
| 19. | YN20P01034P2 | [1] | CAP | KOB |
| 20. | YF50V00001P1 | [1] | FILTER STRAINER | KOB |
| 21. | YT20P01075P1 | [1] | FLANGE | KOB |
| 23. | ZD11G16000 | [1] | O-RING,5.7mm Thk x 159.3mm ID, 70 Duro | KOB |
| 24. | YT20P00052P1 | [1] | FUEL TANK | KOB |
