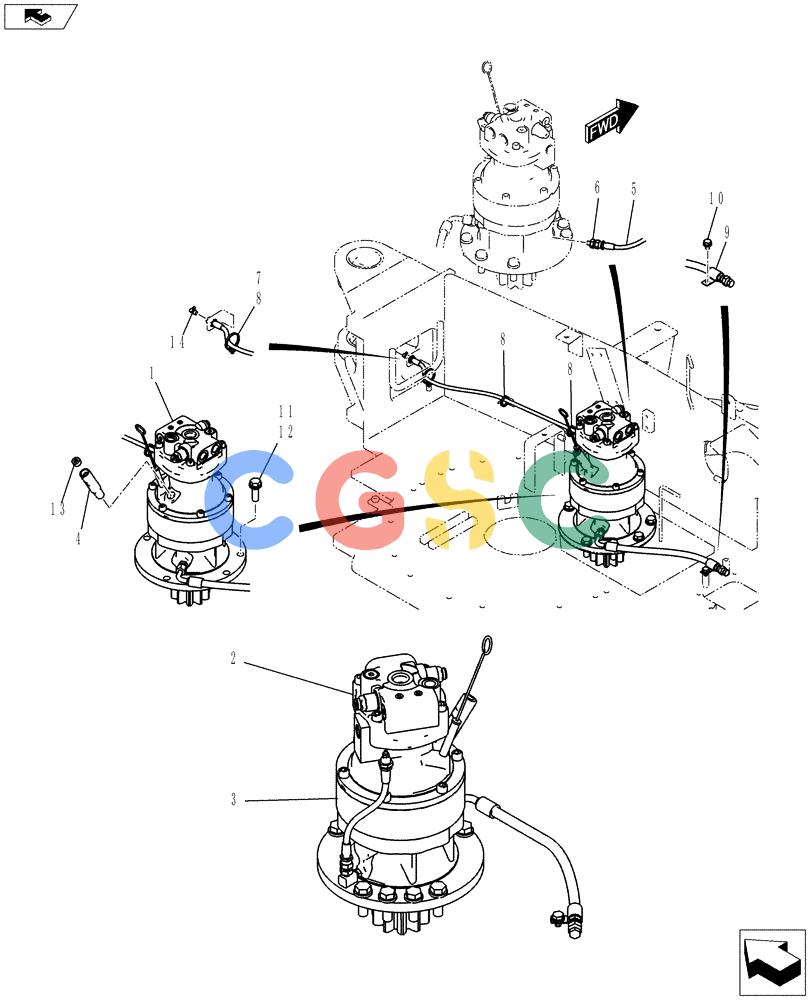

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-016[01]) - SWING MOTOR INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
125 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF32W00002F1 | [1] | Swing | |
| 1. | YT15V00015F1 | [1] | MOTOR | KOBAssy., Hyd. |
| 2. | YT15V00016F1 | [1] | MOTOR | KOBAssy. Superseded by part number: YT15V00005F2 |
| 3. | YT32W00006F1 | [1] | REDUCER | KOBAssy. |
| 4. | YT32W01003D1 | [1] | PIPE | KOB |
| 5. | 2444R1117D100 | [1] | HOSE,6.4mm ID x 1000mm L | KOB |
| 6. | 2444Z2002 | [1] | HYD CONNECTOR | KOB |
| 7. | YN13E01375P1 | [1] | CLIP,M8 x 8.20mm Shank | KOB |
| 8. | PY01P01043D3 | [3] | CABLE TIE,188mm L | KOB |
| 9. | ZC46X19011 | [1] | CLIP | KOB |
| 10. | ZM73C10016 | [1] | BOLT,M10x16mm - Course Thread | KOBSems |
| 11. | ZS13C16050 | [8] | SCREW | KOBCap |
| 12. | ZW13H16000 | [8] | WASHER | KOB |
| 13. | ZE82T08000 | [1] | PLUG | KOB |
| 14. | ZG91U02000 | [1] | LUBE NIPPLE | KOBGrease |
