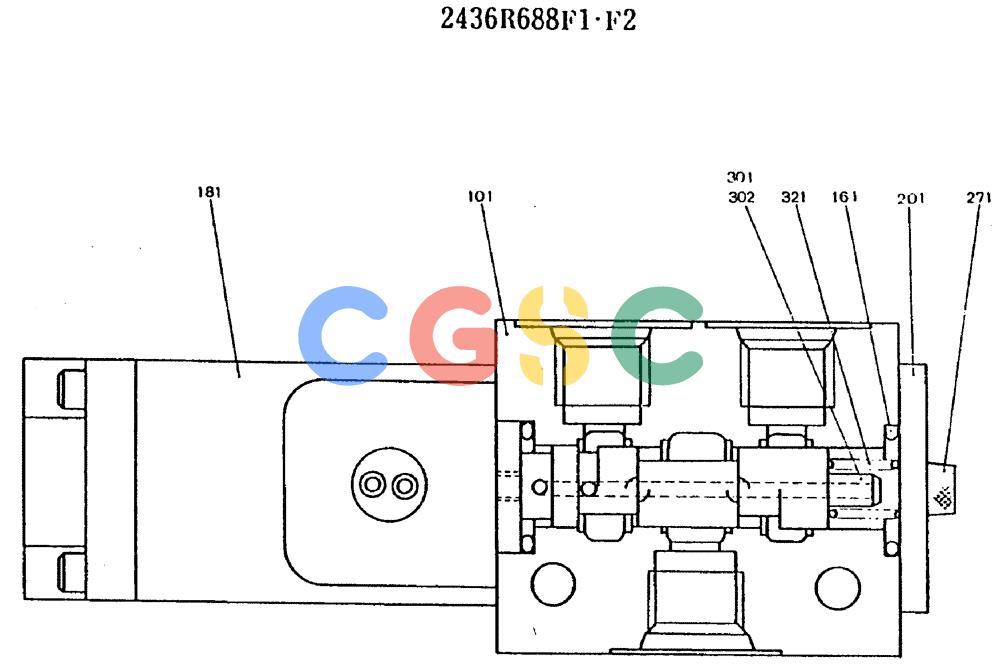

神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (11-006) - VALVE ASSY, SOLENOID Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
215 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R688F1 | [1] | SOLENOID VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| . . | 2436R688F2 | [1] | SOLENOID VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 161. | ZD12P01500 | [2] | O-RING | KOBID 14.80 ± 0.20 x OD 19mm |
| 181. | 2436R688S181 | [1] | SOLENOID | KOB |
| 201. | 2436R688S201 | [1] | COVER | |
| 271. | 2436R688S271 | [2] | CAPSCREW | |
| 301. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL 3, F1 ONLY |
| 302. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL 2, F2 ONLY |
| 321. | 2436R688S321 | [1] | SPRING | SPRING |
