神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (11-008) - VALVE ASSY, RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
418 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

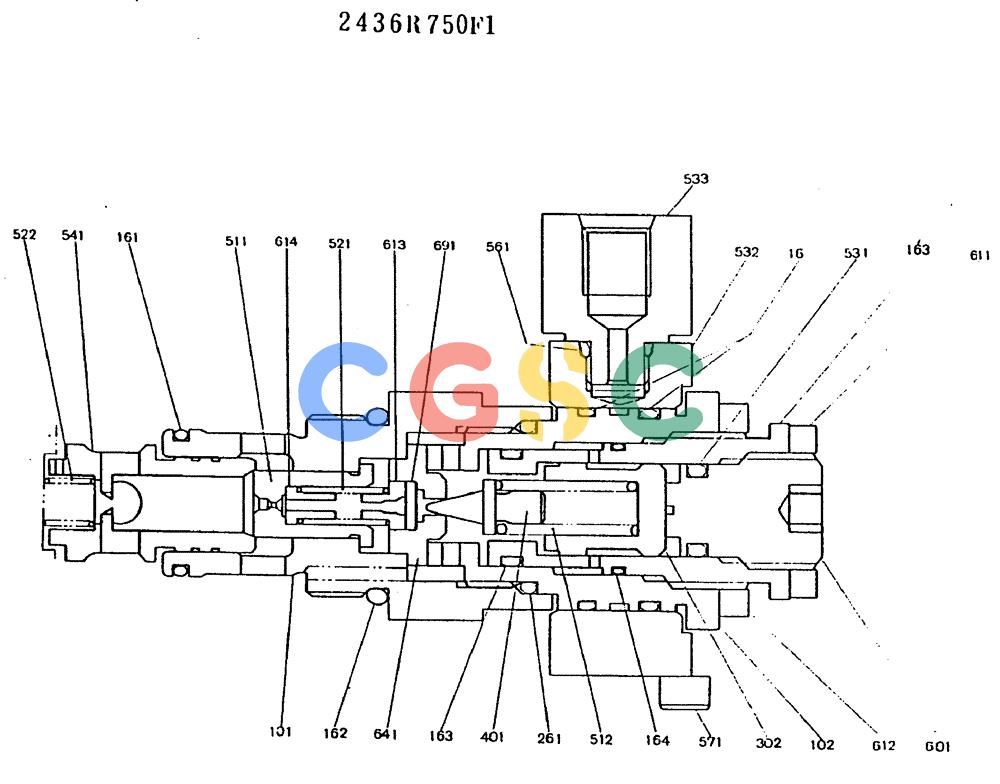

| . . | 2436R750F1 | [1] | VALVE, RELIEF ASSY, CONSISTS OF THE FOLLOWING PARTS | VALVE, RELIEF ASSY, CONSISTS OF THE FOLLOWING PARTS |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 102. | 2436R750S102 | [1] | PLUG | |
| 103. | 2436R750S103 | [1] | PLUG | |
| 161. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 162. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 163. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 164. | 2436R750S164 | [1] | O-RING | |
| 165. | 2436R750S165 | [2] | O-RING | O-RING |
| 261. | ZD12P02200 | [1] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 302. | 2436R750S302 | [1] | PISTON | |
| 401. | 2436R682S401 | [1] | POPPET | KOB |
| 511. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 512. | 2436R750S512 | [1] | SPRING | KOB |
| 521. | 2436R683S521 | [1] | SPRING | KOB |
| 522. | 2436R683S522 | [1] | SPRING | KOB |
| 531. | 2436R750S531 | [1] | O-RING | |
| 532. | 2436R750S532 | [1] | PLUG | |
| 533. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 541. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 561. | ZD12P00800 | [1] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 571. | 2436R750S571 | [1] | BOLT | BOLT |
| 601. | 2436R750S601 | [1] | SCREW | |
| 611. | 2436R750SG11 | [1] | NUT, LOCK | |
| 612. | 2436R750S612 | [1] | NUT, LOCK | |
| 613. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 614. | 2436R750S614 | [1] | SEAT, SPRING | |
| 641. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 691. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER |
| . . | 2436R750R100 | [1] | REPAIR KIT, CONSISTS OF REF 101, 511, 541 | |
| . . | 2436R750R200 | [1] | REPAIR KIT, CONSISTS OF REF 613, 641, 691 | |
