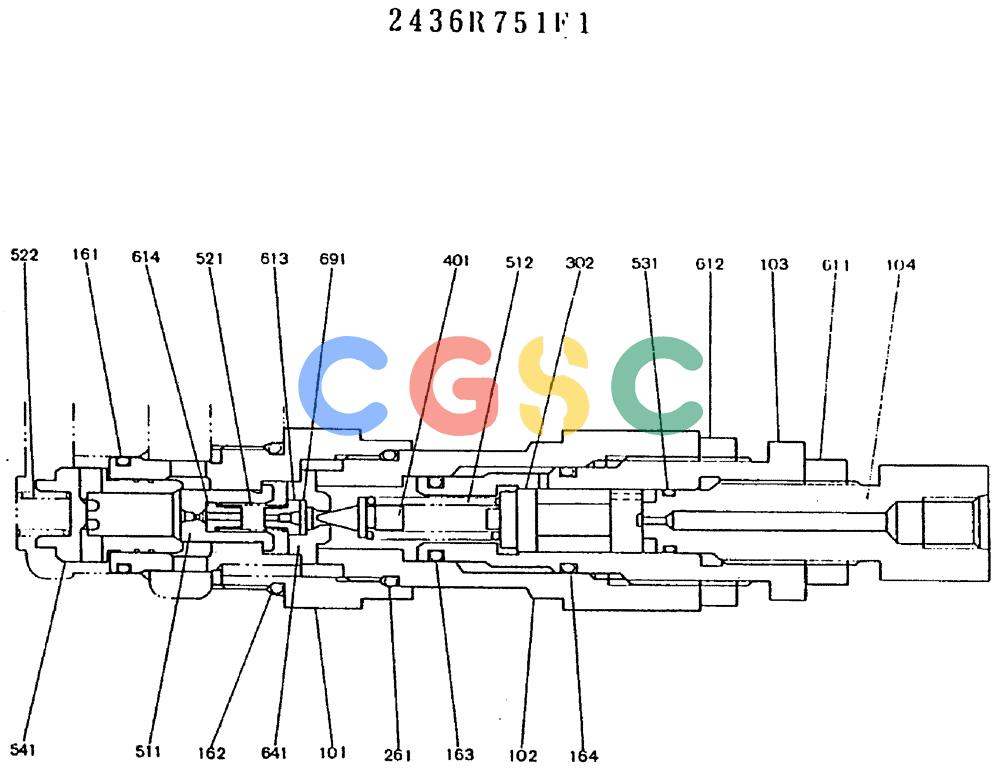

神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (11-009) - VALVE ASSY, RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
276 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R751F1 | [1] | VALVE, RELIEF CONSISTS OF THE FOLLOWING PARTS | VALVE, RELIEF CONSISTS OF THE FOLLOWING PARTS |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 102. | 2436R751S102 | [1] | PLUG | |
| 103. | 2436U1281S103 | [1] | PLUG | |
| 104. | 2436U1281S104 | [1] | PLUG | |
| 161. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 162. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 163. | ZD12P01200 | [1] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 164. | ZD12P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
| 261. | ZD12P02200 | [1] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 302. | 2436U1281S302 | [1] | PISTON | KOBPISTON |
| 401. | 2436R682S401 | [1] | POPPET | KOB |
| 511. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 512. | 2436U1281S511 | [1] | SPRING | KOB |
| 521. | 2436R683S521 | [1] | SPRING | KOB |
| 522. | 2436R683S522 | [1] | SPRING | KOB |
| 531. | ZD12P00900 | [1] | O-RING | KOBID 08.80 ± 0.17 x OD 12mm |
| 541. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 611. | 2436U1281S611 | [1] | NUT, LOCK | |
| 612. | 2436U1281S612 | [1] | LOCK NUT | KOBNUT, LOCK |
| 613. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 614. | 2436R750S614 | [1] | SEAT, SPRING | |
| 641. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 691. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER |
| . . | 2436R751R100 | [1] | REPAIR KIT, CONSISTS OF REF 101, 511, 541 | |
| . . | 2436R751R200 | [1] | REPAIR KIT, CONSISTS OF REF 613, 641, 691 | |
