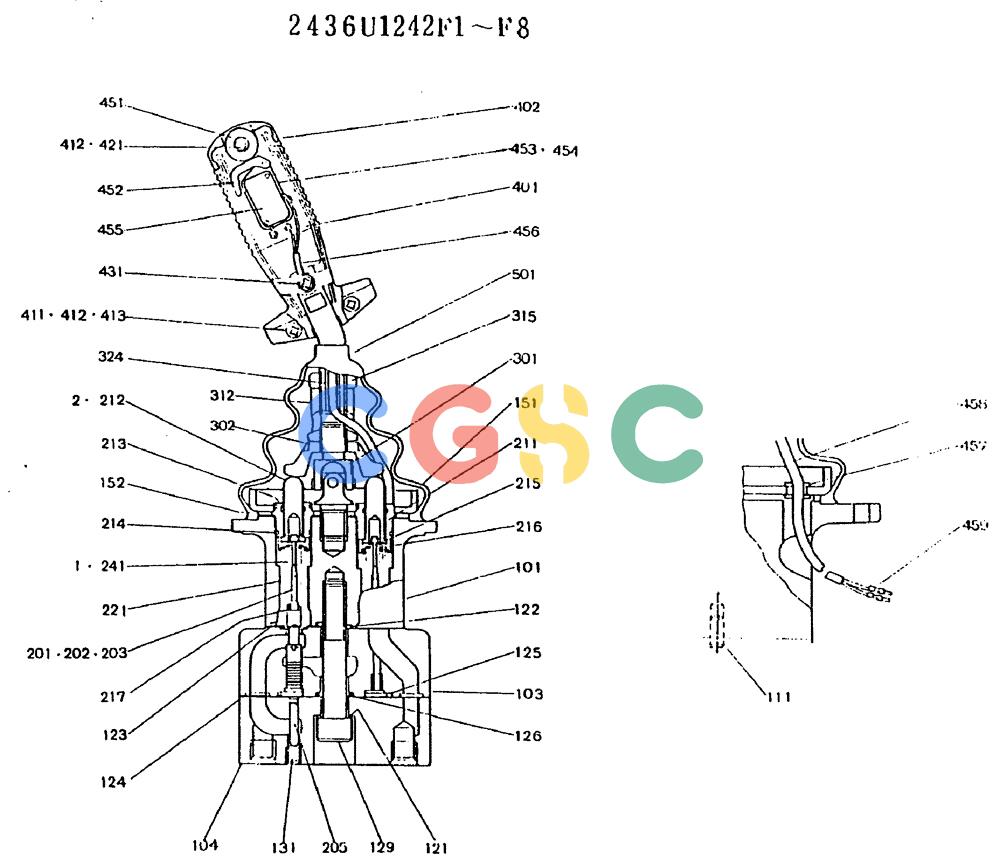

| . . | 2436U1242F1 | [1] | PILOT VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| . . | 2436U1242F2 | [1] | VALVE ASSY PILOT, CONSISTS OF THE FOLLOWING PARTS | |
| . . | 2436U1242F3 | [1] | PILOT VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| . . | 2436U1242F4 | [1] | VALVE ASSY PILOT, CONSISTS OF THE FOLLOWING PARTS | |
| . . | 2436U1242F5 | [1] | PILOT VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| . . | 2436U1242F6 | [1] | PILOT VALVE | KOBVALVE ASSY PILOT, CONSISTS OF THE FOLLOWING PARTS |
| . . | 2436U1242F7 | [1] | PILOT VALVE CONSISTS OF THE FOLLOWING PARTS | PILOT VALVE CONSISTS OF THE FOLLOWING PARTS |
| . . | 2436U1242F8 | [1] | VALVE ASSY PILOT, CONSISTS OF THE FOLLOWING PARTS | |
| 1. | 2436U944S241 | [4] | SPRING | KOBSPRING, F4 ONLY |
| 2. | 2436U1242S2 | [4] | PUSH ROD | KOBF6 ONLY |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 103. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 104. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 111. | NSS | [4] | NOT SOLD SEPARAT | CONPIN |
| 121. | 2436U945S121 | [1] | SEALING WASHER | KOB |
| 122. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 123. | 2436U945S123 | [1] | O-RING | KOB |
| 124. | ZD12P01200 | [6] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 125. | 2436U945S125 | [1] | O-RING | KOB |
| 126. | ZD12P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
| 129. | ZS23C12070 | [1] | SCREW,Hex Socket Head, M12 x 70mm | KOBM12x1.75x70mm Superseded by part number: ZS28C12070 |
| 131. | 2436U741S462 | [4] | PLUG | KOB |
| 151. | 2436U944S151 | [1] | PLATE | KOB |
| 152. | 2436U944S152 | [1] | SEAT | KOB |
| 201. | NSS | [4] | NOT SOLD SEPARAT | CONSPOOL, F2, F6, F7,F8 ONLY |
| 202. | NSS | [4] | NOT SOLD SEPARAT | CONSPOOL, F1 ONLY |
| 203. | NSS | [4] | NOT SOLD SEPARAT | CONSPOOL, F4, F5 ONLY |
| 205. | NSS | [4] | NOT SOLD SEPARAT | CONPIN |
| 211. | 2436U945S211 | [4] | PLUG | KOB |
| 212. | 2436U1242S212 | [4] | PUSH ROD | KOBF1,F2, F3 , F4, F5 ONLY |
| 213. | 2436U945S213 | [4] | GASKET | KOB Superseded by part number: 2436U1277S213 |
| 214. | ZD12P01400 | [4] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 215. | 2436U944S215 | [8] | WASHER | KOB |
| 216. | 2436U944S216 | [4] | SPRING SEAT | KOB |
| 217. | 2436U944S217 | [4] | WASHER | KOB |
| 221. | 2436U1242S221 | [4] | SPRING | KOB |
| 241. | 2436U1242S241 | [4] | SPRING | KOBF1, F2, F3, F5, F6, F7, F8 ONLY |
| 301. | 2436U944S301 | [1] | KNUCKLE JOINT | KOB |
| 302. | 2436U1242S302 | [1] | PLATE | PLATE |
| 312. | 2436U1242S312 | [1] | NUT | KOB Superseded by part number: PH30V00002S312 |
| 315. | 2436U944S315 | [1] | LOCK NUT | KOB |
| 324. | 2436U944S324 | [1] | BAR | KOB |
| 401. | 2436U944S401 | [2] | HANDLE | KOB |
| 402. | 2436U944S402 | [1] | CAP | KOB |
| 411. | 2436U1242S411 | [2] | SCREW | KOB |
| 412. | ZN12C04002 | [3] | NUT | NUT |
| 413. | 2436U1242S413 | [2] | WASHER | KOB |
| 421. | 2436U944S421 | [1] | SCREW,Phillips Drive, Pan HD, M4 x 30mm | KOB Superseded by part number: ZS31C04030 |
| 431. | 2436U944S431 | [2] | SCREW,Phillips Drive, Pan HD, M5 x 8mm | KOB Superseded by part number: ZS31C05008 |
| 451. | 2436U944S451 | [1] | ROLLER THRUST PLATE | KOB |
| 452. | 2436U944S452 | [1] | LEVER | KOB |
| 453. | 2436U944S453 | [1] | U-BRACKET | KOB |
| 454. | 2436U944S454 | [1] | U-BRACKET | KOB |
| 455. | NSS | [1] | NOT SOLD SEPARAT | CONSWITCH |
| 456. | NSS | [1] | NOT SOLD SEPARAT | CONCORD |
| 457. | 2436U1242S457 | [1] | GROMMET | KOB |
| 458. | 2436U1242S458 | [1] | TUBE | |
| 459. | 2436U944S459 | [2] | TERMINAL | KOB |
| 501. | 2436U944S501 | [1] | BOOT | KOB |
| . . | 2436U1242R100 | [1] | REPAIR KIT CONSISTS OF REF 101, 103, 104, 111, 121-126, 129, 131, 202, 205 | REPAIR KIT CONSISTS OF REF 101, 103, 104, 111, 121-126, 129, 131, 202, 205 |
| . . | 2436U1242R110 | [1] | REPAIR KIT CONSISTS OF REF 455 & 456 | REPAIR KIT CONSISTS OF REF 455 & 456 |
| . . | 2436U1242R120 | [1] | REPAIR KIT CONSISTS OF REF 101, 103, 104, 111, 121-126, 129, 131, 201, 205 | REPAIR KIT CONSISTS OF REF 101, 103, 104, 111, 121-126, 129, 131, 201, 205 |
| . . | 2436U1242R130 | [1] | REPAIR KIT CONSISITS OF REF 101, 103, 104, 114, 121-126, 129, 202, 203, 205 | REPAIR KIT CONSISITS OF REF 101, 103, 104, 114, 121-126, 129, 202, 203, 205 |
| . . | 2436U1242R140 | [1] | REPAIR KIT CONSISTS OF REF 101, 103, 104, 111, 121-126, 129, 131, 203, 205 | REPAIR KIT CONSISTS OF REF 101, 103, 104, 111, 121-126, 129, 131, 203, 205 |
