神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (11-014) - VALVE ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
609 次

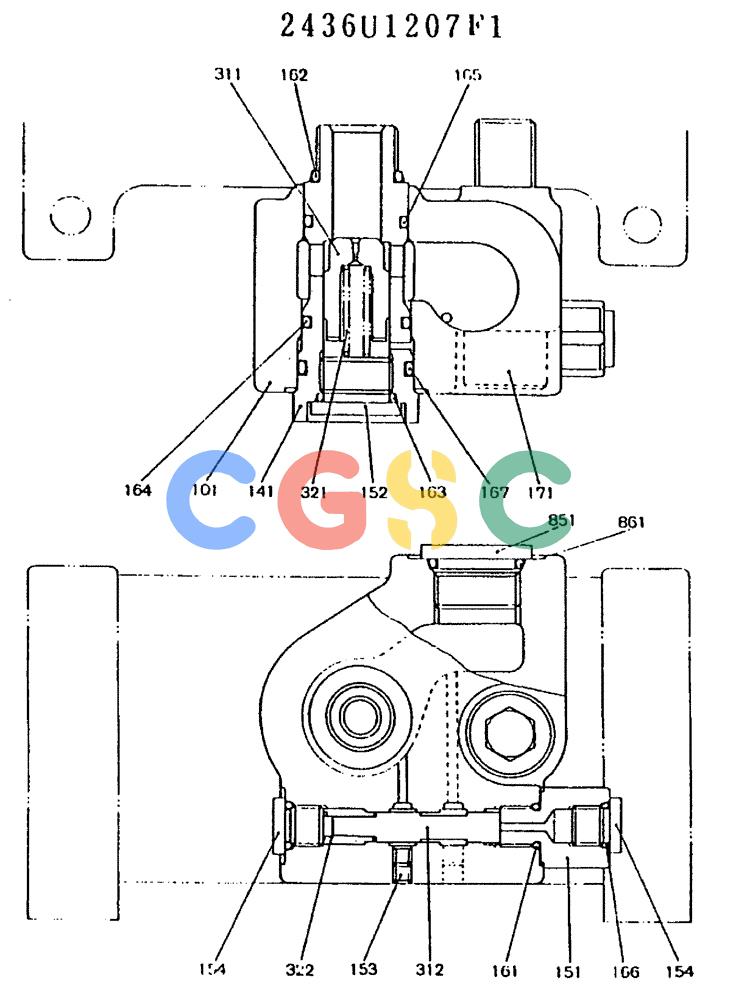

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1207F1 | [1] | VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 141. | NSS | [1] | NOT SOLD SEPARAT | CONSLEEVE |
| 151. | 2436U1207S151 | [1] | PLUG | KOB |
| 152. | 2436U1485S552 | [1] | PLUG | KOB |
| 153. | 2436U740S62 | [2] | PLUG | PLUG |
| 154. | 2436U1485S151 | [2] | PLUG | PLUG |
| 161. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 162. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 163. | ZD12P02200 | [1] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 164. | ZD12P03000 | [1] | O-RING | KOBID 29.70 ± 0.29 x OD 36mm |
| 165. | ZD12P02800 | [1] | O-RING | KOBID 27.70 ± 0.27 x OD 34mm |
| 166. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 167. | ZD12P03200 | [1] | O-RING | KOBID 31.70 ± 0.31 x OD 38mm |
| 171. | 2436U1207S171 | [1] | CAPSCREW | CAPSCREW |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 312. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 321. | 2436U1207S321 | [1] | SPRING | KOB |
| 322. | 2436U1207S322 | [1] | SPRING | KOB |
| 851. | 2436U1207S851 | [1] | PLUG | KOB |
| 861. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
