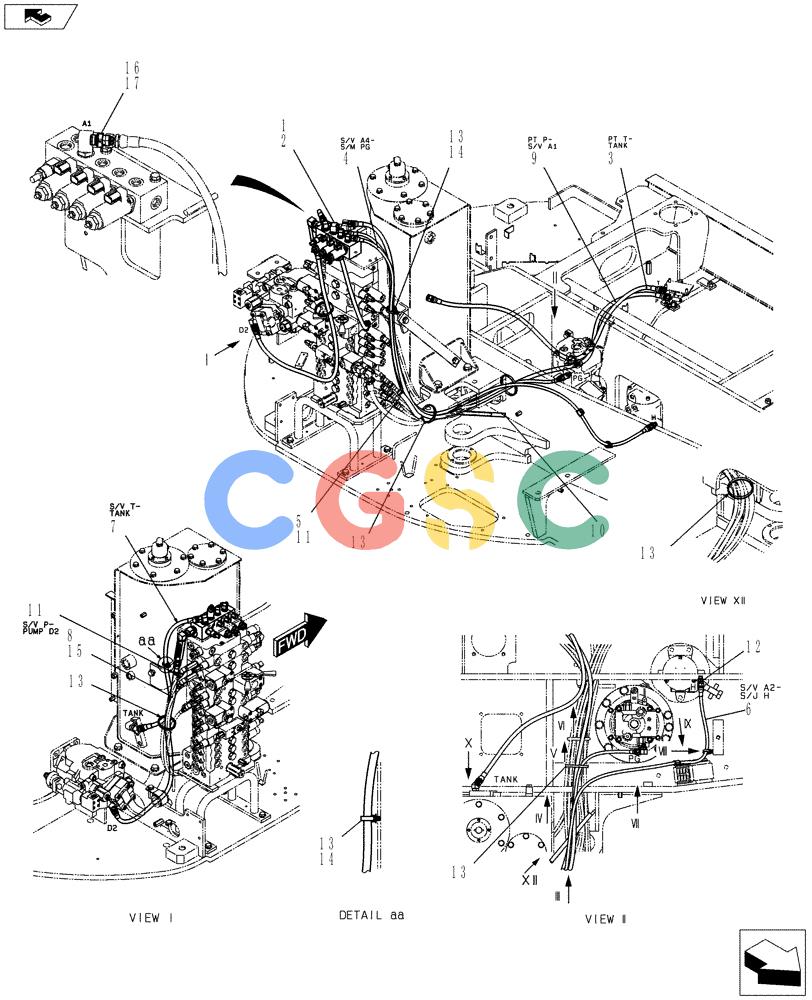

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-029[01]) - CONTROL LINES, VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1012 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF64H00024F1 | [1] | Valve | |
| 1. | LF64H00016F1 | [1] | TUBE | KOB |
| 2. | YT35V00027F1 | [1] | SOLENOID VALVE | KOBAssy. |
| 3. | 2420R537D130 | [1] | HOSE,9.60mm ID x 1300mm L | KOB Superseded by part number: HX21E06130DX |
| 4. | 2420R349D160 | [1] | HOSE,6.35mm ID x 1600mm L | KOB |
| 5. | PU13E01002D6 | [1] | TUBE | KOB Superseded by part number: 72280613 |
| 6. | 2420R349D210 | [1] | FLEXIBLE HOSE | KOB |
| 7. | 2420R537D086 | [1] | HOSE,9.60mm ID x 860mm L | KOB Superseded by part number: 2420R537D090 |
| 8. | 2420R537D110 | [1] | HOSE ASSY.,9.60mm ID x 1100mm L | KOB Superseded by part number: HX21E06110DX |
| 9. | 2420R537D240 | [1] | HOSE,9.53mm ID x 2400mm L | KOB |
| 10. | LF64H01004D1 | [1] | FLEXIBLE HOSE | KOB, Serial Range: LF06-04501-LF06-04544 |
| 11. | PY01P01043D3 | [1] | CABLE TIE,188mm L | KOB, Serial Range: LF06-04501-LF06-04544 |
| 12. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB |
| 13. | PY01P01043D8 | [6] | CABLE TIE,102mm L | KOB, Serial Range: LF06-04501-LF06-04503 |
| 14. | YN13E01375P1 | [3] | CLIP,M8 x 8.20mm Shank | KOB |
| 15. | PU13E01010DE | [1] | TUBE | KOB, Start Serial: LF06-04545 |
| 16. | YT64H00105F1 | [1] | Valve | |
| 17. | ZH22X06000 | [1] | HYD CONNECTOR | KOB |
