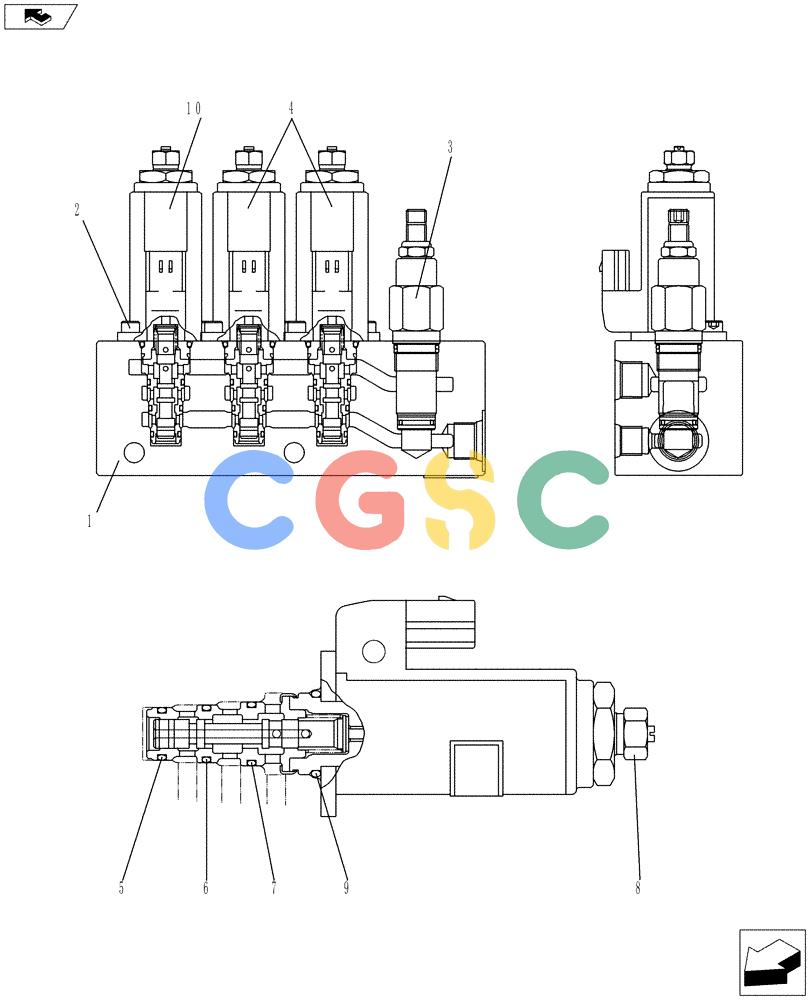

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-029[03]) - CONTROL LINES, VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
164 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT35V00027S101 | [1] | MOTOR HOUSING | KOBCase |
| 2. | YN35V00047S171 | [6] | SCREW,Hex Socket Head, M5 x 12mm | SMCap Superseded by part number: ZS23C05012 |
| 3. | YT22V00019F1 | [1] | PRESSURE RELIEF VALVE | KOB |
| 4. | YN35V00050F1 | [2] | SOLENOID VALVE,Cartridge W/Coil | KOBSolenoid |
| 5. | YN35V00004S361 | [1] | O-RING | KOB |
| 6. | YN35V00004S362 | [1] | O-RING | KOB |
| 7. | YN35V00004S363 | [1] | O-RING | KOB |
| 8. | YN35V00018S802 | [1] | NUT | KOB |
| 9. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB |
| 10. | YN35V00051F1 | [1] | SOLENOID VALVE | KOBSolenoid |
