神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (11-019) - CYLINDER ASSY ( BUCKET) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
770 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

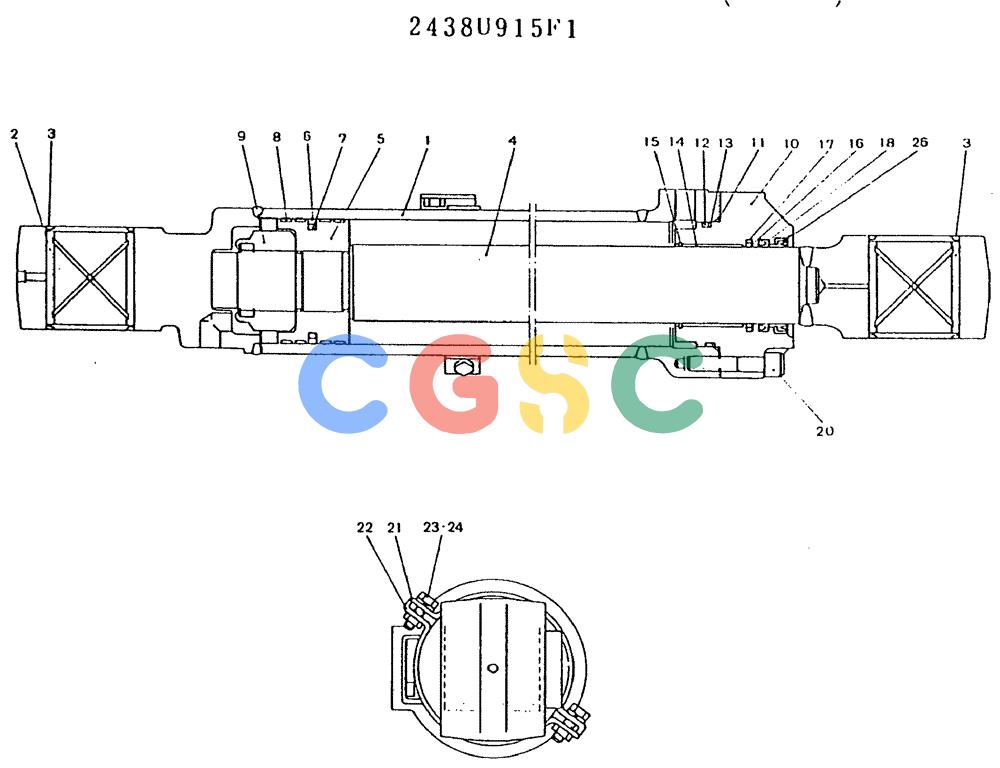

| . . | 2438U915F1 | [1] | CYLINDER | KOBCONSISTS OF THE FOLLOWING PARTS |
| 1. | 2438U915S1 | [1] | TUBE, CYLINDER | TUBE, CYLINDER |
| 2. | 2438U309S2 | [2] | BUSHING | KOB |
| 3. | 2445R138D6 | [4] | SEAL,70mm ID x 85.3mm OD x 4mm Thk | KOBSeal, Dust -- ID 70 x OD 85 x Th 4mm |
| 4. | 2438U915S4 | [1] | PISTON ROD | KOB |
| 5. | 2438U915S5 | [1] | MANIFOLD | MANIFOLD |
| 6. | 2438U695S6 | [1] | SEAL | KOBSEAL Superseded by part number: R45P0049D2 |
| 7. | R45P0051D4 | [1] | O-RING | KOB |
| 8. | 2438U783S6 | [4] | RING, WEAR | RING, WEAR |
| 9. | 2438U914D1S11 | [1] | NUT | KOB |
| 10. | 2438U915S10 | [1] | COVER | KOB |
| 11. | 2429U71S19 | [1] | O-RING | KOB |
| 12. | ZD11P11000 | [1] | SEAL,109.6mm ID x 120mm OD x 5.2mm Thk | KOBO-Ring -- ID 109.6 ± 0.91 x OD 120mm |
| 13. | 2429U71S18 | [1] | RING, BACK-UP | |
| 14. | B38K0039E10 | [1] | BUSHING | KOBBUSHING Superseded by part number: 2405U104D075060 |
| 15. | B38K0039E11 | [1] | CLAMP | KOB |
| 16. | R45P0050D2 | [1] | SEAL | KOB |
| 17. | 45Z91D11 | [1] | O-RING | KOBID 81.92 ± 0.38 OD 92.58mm |
| 18. | 2438U309S35 | [1] | PACKING | KOB |
| 20. | ZS23C18065 | [8] | SCREW,Hex Socket Head, M18 x 65mm | KOBM18x2.50x65mm |
| 21. | 2438U915S21 | [1] | BRACKET | KOB |
| 22. | 2438U915S22 | [1] | BAND | KOB |
| 23. | ZS16C10035 | [2] | SCREW | KOBM10x1.50x35mm Superseded by part number: ZS18C10035 |
| 24. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 26. | 2438U915S26 | [1] | SEAL | KOB |
| . . | 2438U915R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF 11-13, 16-18, 26 Superseded by part number: 2438U915R100P |
| . . | 2438U915R110 | [1] | REPAIR KIT | KOBCONSISTS OF REF 6-8 Superseded by part number: 2438U915R110P |
