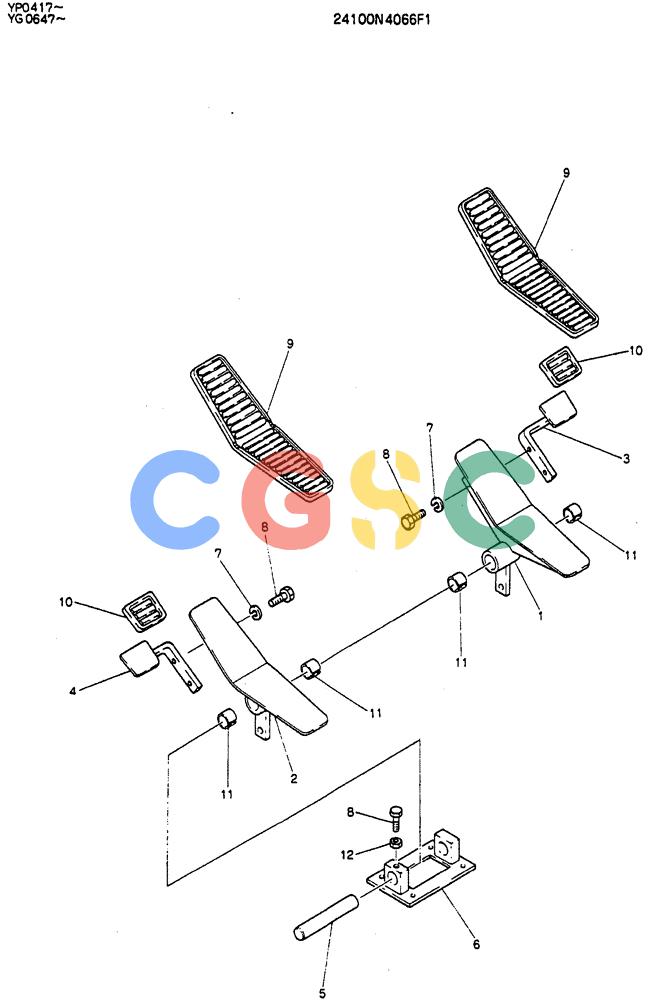

神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (03-004) - LEVER ASSY, CONTROL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
300 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4066F1 | [1] | LEVER | KOB |
| 1. | 2427P1833D1 | [1] | PEDAL | PEDAL |
| 2. | 2427P1833D2 | [1] | PEDAL | KOB |
| 3. | 2406P3904D1 | [1] | PEDAL | KOBL.H. |
| 4. | 2406P3904D2 | [1] | PEDAL | KOBR.H. |
| 5. | 2419T3305D2 | [1] | PIN | KOB |
| 6. | 2416T12941 | [1] | U-BRACKET | KOB |
| 7. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 8. | ZS18C10025 | [5] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 9. | 2427R474 | [2] | COVER | KOB |
| 10. | 2427Z560 | [2] | COVER | KOB |
| 11. | 2405R61D1 | [4] | BUSHING | KOB Superseded by part number: 2405U104D022020 |
| 12. | ZN17C10008 | [1] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
